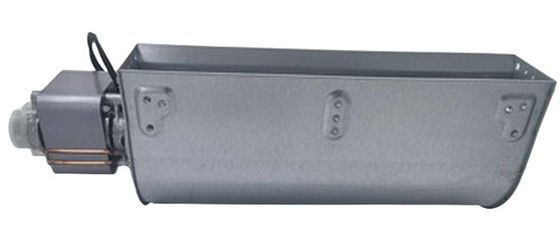

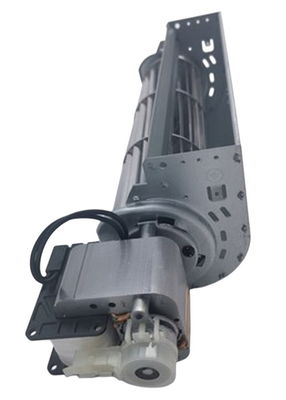

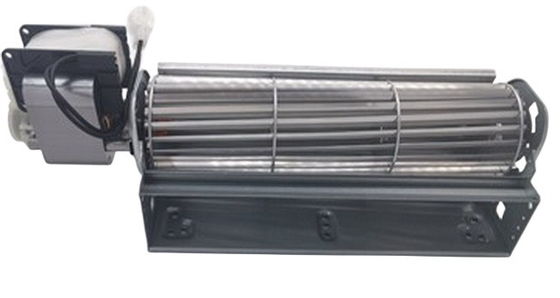

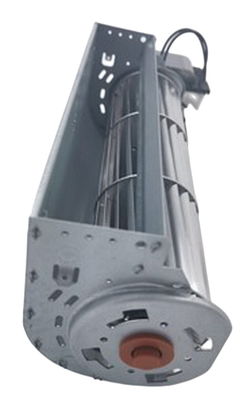

65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback

65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback
65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback 65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback 65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback 65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback

Large Image :  65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6038-38588
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback

Description
Product Name: 65mmX240mm 69W 0.54A AC High Temperature Cross Flow Blowers Fan Motor Type: MH6038-38588
Rated Voltage/Frequency: 240Vac/60Hz Current(A): 0.54
Input Power(W): 69W Speed(RPM): 2110
Hi-Pot TEST: 1800vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Spee(m/s): 11.6 Start Voltage: 81V 60Hz
Air VolumeCFM): 180 Application: KITCHEN EQUIPMENT,PELLET STOVE
Agency: UL Feature: With Hall Speed Feedback Parts
High Light:

65mm X 240mm high flow air blower

,

60Hz high flow air blower

,

69W indoor fan motor

China 65mmX240mm 69W 0.54A AC High Temperature Cross flow Blowers Fan with Hall speed feedback



The 60x240mm cross blower fan with Hall speed feedback which provides a high airflow rate, delivers efficient air delivery with wide air supply, high air volume delivery.60mm x 240mm impeller, high air volume, low noise.  The typically  applications in various fields, including food heating or fireplace oven.



It is designed to operate in high-temperature environments and can withstand elevated temperatures.





Quick Review:


Product Name: China 65mmX240mm 69W 0.54A AC High Temperature Cross flow Blowers Fan Motor Type: MH6038-38588
Rated Voltage/Frequency: 240Vac/60Hz Current(A): 0.54
Input Power(W): 69W Speed(RPM): 2110
Hi-Pot TEST: 1500vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Speed(m/s): 11.6 Air Volume(CFM): 180
Feature With Hall Speed feedback parts Agency: UL


65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback 0

65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback 1

Production Feature :
1. 60mm x 240mm impeller, high air volume, low noise with Hall speed feedback.

2. Innovative air flow system design reduces overall system cost and simplifies the entire machine structure.

3. Applied in various fields, including food heating and fireplaces.

4. Driven by a C-FRAME shaded pole motor.

5. The motor can be mounted in any of the four positions.

6.  Equipped with ball bearing structure, suitable for high-temperature environments, and long lifespan.

AIR FLOW  CURVE

 65mm X 240mm Indoor AC Cross High Flow Air Blower Fan 69W 0.54A With Hall Speed Feedback 2





Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.


Welcome your business chat and visit.



FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
