Product Details:
|
| Product Name: | 85mm AC Shade Pole Convection Blower Motor Fan With 3-speed | Motor Type: | MH6029-29091 |
|---|---|---|---|
| Rated Voltage/Frequency: | 240Vac/50Hz | Current（A): | H: 0.26 M: 0.2 L:0.15 |
| Input Power（W）: | H: 36 M: 26 L:20 | Speed（RPM): | H: 2000 M:1200 L:1000 |
| Hi-Pot TEST: | 1800vac3mA,1S | Air Flow（CFM): | H: 120 M: 75 L:50 |
| Wind Speed(m/s): | H: 8.6 M: 4.3 L:3.3 | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | T.P |
| Stator Vibration(cm/s):: | 0.25 | Safe Certification: | ETL/CE/CCC |
| APPLICATION: | FIREPLACE | High Light: | 85mm ,AC Shade Pole ,Convection Blower Motor Fan , 3-speed |
| High Light: | 85mm home ac blower motor,Convection home ac blower motor,electric blower motor 50Hz |
||

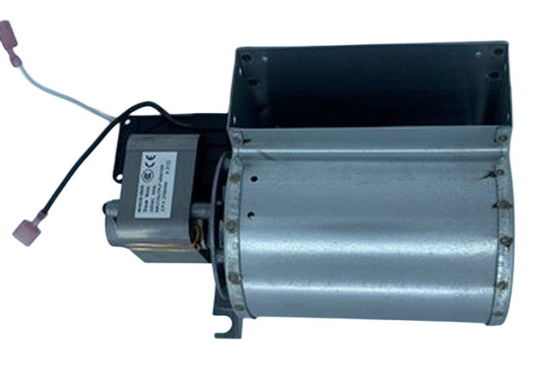

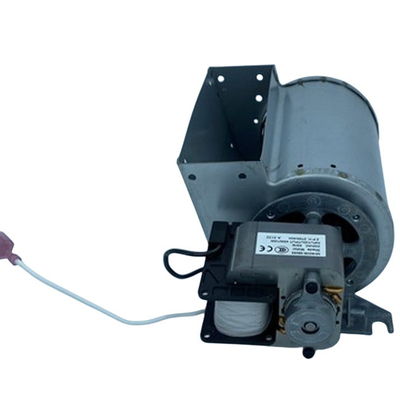

85mm AC Shade Pole Convection blower Motor Fan with 3-speed
The fan is specifically designed for convection applications, helping to circulate air and promote heat distribution in a space. It is commonly used in heating systems, stoves, or other convection-based appliance. The motor blower fan be designed with a 3-speed , allowing you to adjust the fan speed to your desired level of airflow. This provides flexibility and control over the convection process.It offers flexibility in airflow control, making it suitable for various convection applications.
Quick Review:
| Product Name: | 85mm AC Shade Pole Convection blower Motor Fan with 3-speed | Motor Type: | MH6029-29091 |
|---|---|---|---|
| Rated Voltage/Frequency: | 240Vac/50Hz | Current(A): | H: 0.26 M: 0.2 L:0.15 |
| Input Power(W): | H: 36 M: 26 L:20 | Speed(RPM): | 2800 |
| Hi-Pot TEST: | 1800vac3mA,1S | Air Flow(CFM): | H: 120 M: 75 L:50 |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Protection Method: | Z.P (UL) | Wind Speed(m/s): | H: 8.6 M: 4.3 L:3.3 |
| Stator Vibration(cm/s) | 0.25 | APPLICATION: | FIREPLACE |
Production Advantage:
1. Structure of high-temperature ball bearings.
2. 85mm diameter wind turbine blade made of high-temperature resistant material, ensuring efficient airflow.
3. Isolation mounting for independent installation to effectively reduce noise and vibration.
4. Unique three-speed design to meet diverse customer requirements.
5. Worm casing crafted from aluminum-impregnated steel material.
Air Flow Curve:
Main Application:
Fireplace
Typically used in fireplace products for the purpose of delivering airflow to wood-burning, authentic fireplaces.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
