Product Details:
|
| MH MODEL: | MH8433-84501 | Product Name: | 4 Pole Electric Motor 3.3 For Fan Blower , Pump/ Oven Fan Motor Replacement Model 70732102 71732501 |
|---|---|---|---|
| Rated Voltagrial: | 115V 60HZ | Current（A): | 0.74 |
| Input Power（W): | 75W | Speed（RPM): | 1500 |
| Hi-Pot TEST: | 1500vac50Hz,1mA,1S | Bearing Type: | BALL BEARING |
| Insulation Class: | B | Agency: | UL |
| Thermally Protected: | TP | Application: | PUMP/ PELLET STOVE/ FIREPLACE STOVE |
| High Light: | 71732501 Electric Motor,4 Pole Electric Motor,3.3 Oven Fan Motor |
||

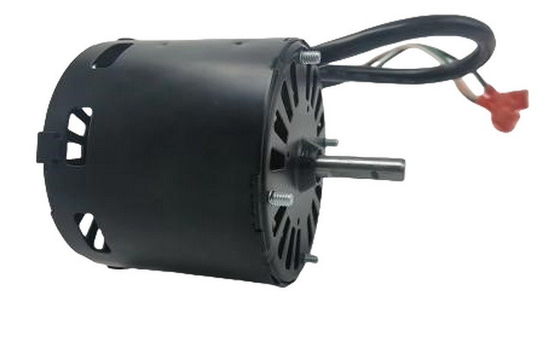

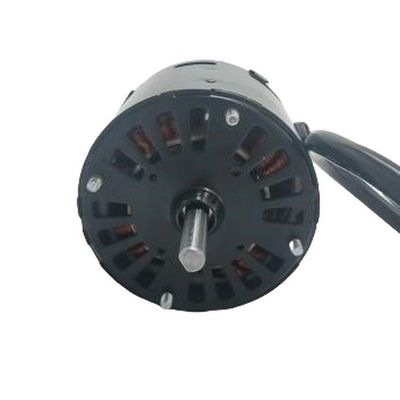

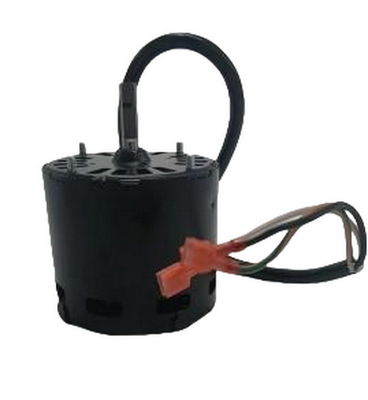

4 Pole Electric Motor 3.3 For Fan Blower , pump/ oven Fan Motor replacement model 70732102 71732501
This motor is specifically engineered to enhance the performance of pump fans and the pellet stove and fireplace stove. By incorporating this 3.3 inch motor into your setup, you can ensure improved air circulation and ventilation efficiency, making it an excellent choice for both residential and commercial applications. Whether replacing an old motor or building a new ventilation system, this motor is a dependable option for your solutions , it can be replacement the model 70732102 & 71732501
| MH MODEL: | MH8433-84501 | Product Name: | 4 Pole Electric Motor 3.3 For Fan Blower , Pump/ Oven Fan Motor Replacement Model 70732102 71732501 |
|---|---|---|---|
| Rated Voltagrial: | 115V 60HZ | Current(A): | 0.74 |
| Input Power(W): | 75W | Speed(RPM): | 1500 |
| Hi-Pot TEST: | 1500vac50Hz,1mA,1S | Bearing Type: | BALL BEARING |
| Insulation Class: | B | Agency: | UL |
| Thermally Protected: | TP | Application: | PUMP/ PELLET STOVE/ FIREPLACE STOVE |
| High Light: | 4 Pole Electric Motor 3.3 ,F Fan Blower , Pump/ Oven Fan Motor ,replacement Model 70732102 71732501 | ||
dimensions can be customized according to customer requirements.
Production Description:
1. 3.3 inches diameter
2. High-quality electrical steel material
3. Typically used in machinery and fan blades, among others
4. Multiple installation structures to choose from
5. Multiple connection methods available: wire/quick terminal structure
6. Multiple shaft sizes to choose from
7. Options for ball bearings and oil-impregnated bearings
8. High-strength steel casing
9. No hole or hole end cover, or internal self-cooling fan
10. Product safety certification: UL
Applications:
Typically used in applications with high starting loads, such as water pumps, forced ventilation systems, and commercial kitchen equipment blowers.
Our Products Advantage:
A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.
B.High efficiency.
C. Low noise.
Our mission:
1. Provide competitive and premium quality solutions, products and services to our valuable clients.
2. Trained, knowledgeable and committed staff with strong synergy.
3. Seek growth through innovative solutions & market expansion.
4. Continuously improve entire business process.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor
