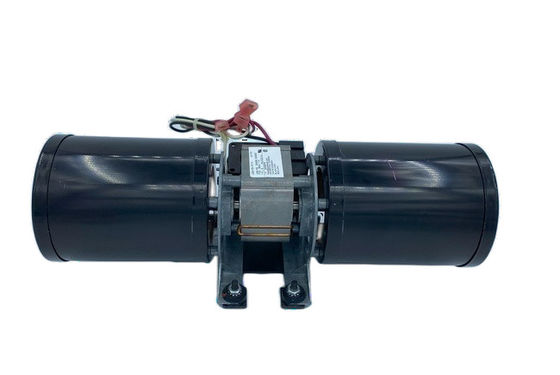

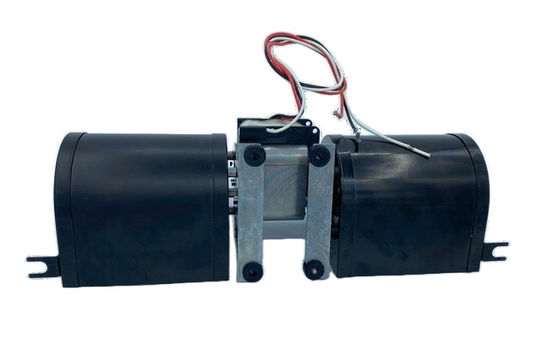

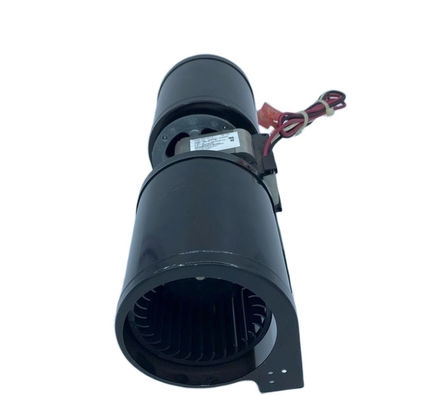

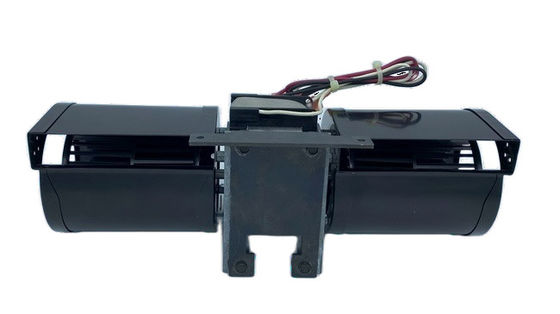

AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4 Squirrel Cage Blower

AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4  Squirrel Cage Blower
AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4  Squirrel Cage Blower AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4  Squirrel Cage Blower AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4  Squirrel Cage Blower AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4  Squirrel Cage Blower

Large Image :  AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4 Squirrel Cage Blower

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL /ETL
Model Number: MH6038-38439
Payment & Shipping Terms:
Minimum Order Quantity: 288PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 20-25 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4 Squirrel Cage Blower

Description
Product Name: AC Shade Pole Room Air Blower Motor Fan Motor Type: MH6038-38439
Rated Voltage/Frequency: 115Vac/60Hz Current(A): H:0.9 L:0.52
Input Power(W): H:60 L:36 Speed(RPM): H:2200 L:1300
Air Flow(CFM): H:85 L:48 Bearing Type: NMB Ball Bearing
Insulation Class: H Protection Method: TP(THERMAL PROTECTOR)
Feature: 4x4 Squirrel Cage Blower Safe Certification: UL/ETL
Vibration(cm/s): H:<0.25 L:<0.05 High Light: AC Shade Pole, Room Air Blower Motor Fan, 4x4 Squirrel Cage Blower, UL Agency
High Light:

AC Shade Pole indoor blower motor

,

indoor blower motor 4x4 Squirrel Cage

,

fireplace blower motor 115Vac

AC Shade Pole Room Air Blower Motor Fan 4x4 Squirrel Cage Blower



Production Features:

1. 4X4 inches (about 10X10 centimeters), which is suitable for small combustion equipment.
2. It adopts double rolling bearing design, making the fan rotation smoother, reducing friction and noise.
3. The fan blade is made of high-temperature resistant material, which can withstand high-temperature environment and extend the service life of the fan.
4. The double squirrel cage blower can help evenly distribute the heat generated by the real fire fireplace to every corner of the room, improve heat efficiency and reduce energy waste.
5. A dual outlet design with high air volume, meeting the efficient heating requirements of large area rooms.
6. The fan is equipped with silicone pads on its four mounting feet to effectively reduce noise and vibration during operation.
7. The four fixed bracket holes are designed for easy installation.



Quick Review:



Model Type:MH6038-38439

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 115Vac/60Hz Hi-Pot TEST 1500vac50hz,1Ma,1s
Current(A)

H:0.9

L:0.52

Bearing Type NMB Ball Bearing
Input Power(W)

H:60

L:36

Insulation Class H
Speed(RPM)

H:2200

L:1300

Safe Certification UL/ETL
Air Flow(CFM) H:85 Protection method TP(THERMAL PROTECTOR)
L:48 Vibration(cm/s)

H:<0.25

L:<0.05


 Production Drawing:
 AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4  Squirrel Cage Blower 0

Production Description:



1. 4x4 Squirrel Cage Blower

2. Typical applications in fireplace and pellet stove equipment.

3. 4 Silicone gaskets design: Effectively reduce the noise and vibration.

4. Two speed motor design.


 AC Shade Pole Air Indoor Fireplace Blower Motor Fan 4x4  Squirrel Cage Blower 1



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
