Product Details:
|
| MH MODEL: | MH84-84448 | Product Name: | 170W 120V High Efficiency Pellet Stove Convection Fan Motor Blower |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current（A): | 1.65 |
| Input Power（W）: | 170W | Speed（RPM): | 1650 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | B | Agency: | UL |
| Wind Speed(m/s): | 14 | Air Volume（CFM): | 532 |
| Start Voltage: | 71V 60Hz | Thermally Protected: | TP |
| Application: | Boiler/Stove | ||
| High Light: | 170W pellet stove combustion blower,120V pellet stove combustion blower,1650rpm furnace fan replacement |
||

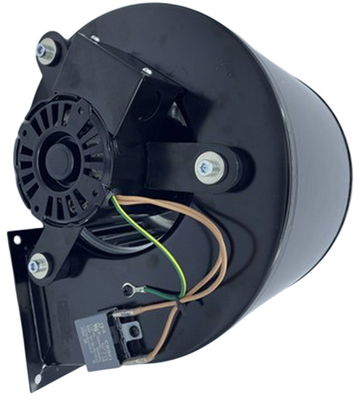

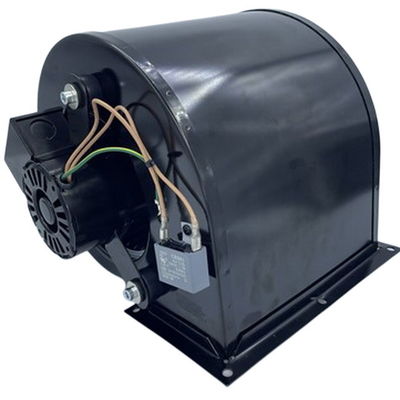

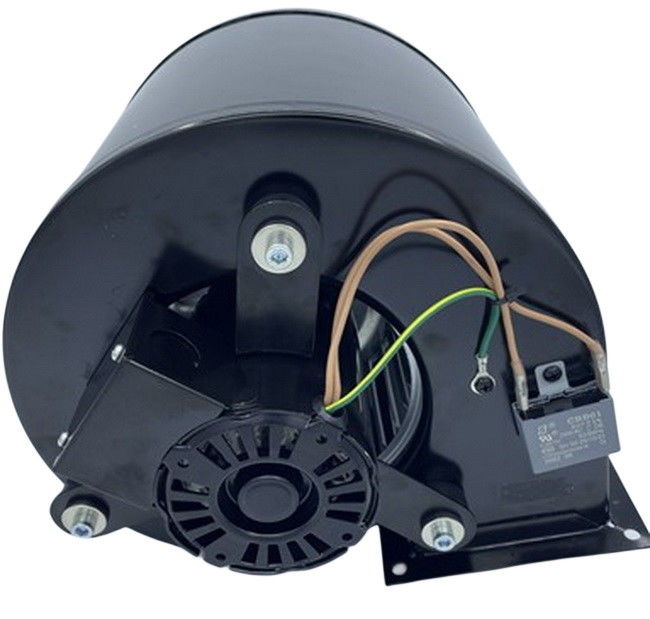

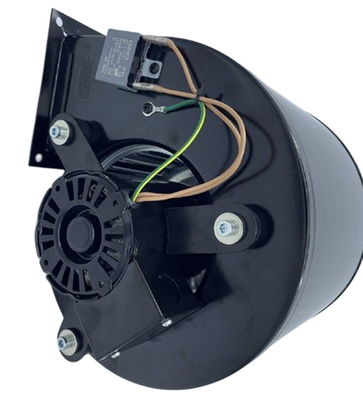

170W 120V High Efficiency AC Boiler Stove Convection Fan Motor Blower
This motor blower is designed to be highly efficient, providing effective convection air movement within the boiler stove for improved heat distribution. This blower is designed to be highly efficient, providing effective convection air movement within the boiler stove for improved heat distribution. The functions as the convection fan for the boiler stove, helping to circulate the heated air throughout the room or space and easy installation in boiler stoves, allowing for convenient retrofitting or replacement of existing blowers.
Quick Detail:
| MH MODEL: | MH84-84448 | Product Name: | 170W 120V High Efficiency Boiler Stove Convection Fan Motor Blower |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current(A): | 1.65 |
| Input Power(W): | 170W | Speed(RPM): | 1650 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | B | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 14 |
| Air Volume(CFM): | 532 | Start Voltage | 71V 60Hz |
Production Features:
1. With PSC motor, large torque,high efficiency and large air volume.
2. Double ball bearing designed, long lasting.
3. Automatic Overload Protection;
4. Powerful, Quiet, Energy Efficient .
5. Unit balanced for vibration-free construction.
6. PSC Blower,Forward Curve, Direct Drive.
Air Flow Curve:
Main Application:
Large-scale wood-burning boiler blower, high efficiency, energy-saving.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team. We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
