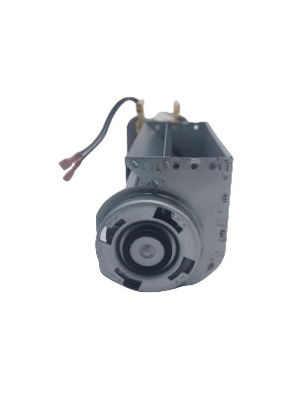

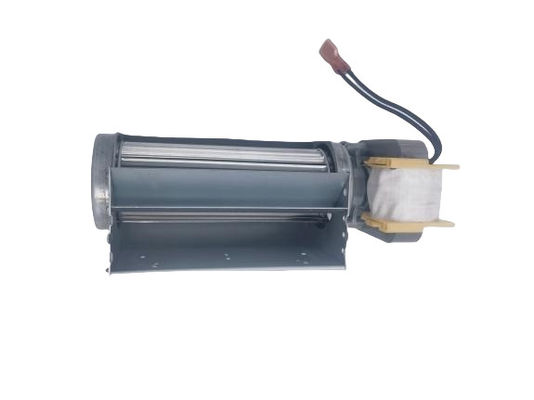

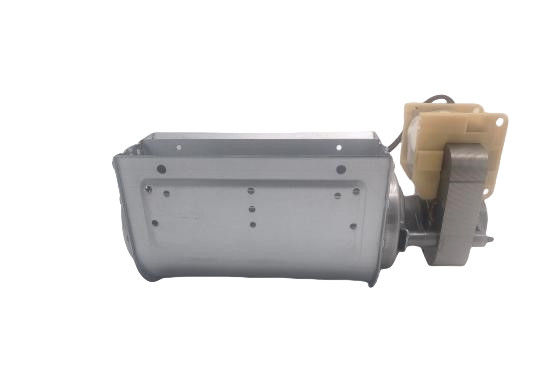

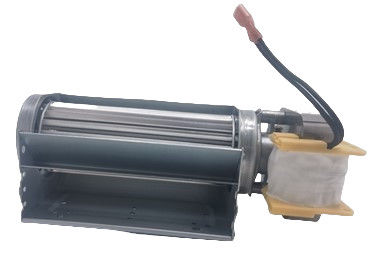

45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A

45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A
45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A 45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A 45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A 45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A

Large Image :  45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6016-16179
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A

Description
Product Name: 45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A Motor Type: MH6016-16179
Rated Voltage/Frequency: 115V 60Hz Current(A): 0.45
Input Power(W): 26W Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Spee(m/s): 8.2 Air VolumeCFM): 73
Application: Stove Agency: UL
High Light:

0.45A Cross Flow Blower Fan

,

115V Cross Flow Blower Fan

,

Tangential Blower Cross Flow Fan

45mm Tangential Blower Cross Flow Fan large air volume, efficient air supply 115V 60HZ 0.45A


The  Tangential Blower cross blower fan provides a high airflow rate, delivers efficient air delivery with wide air supply, high air volume delivery.

The cross flow fan/tangential fan is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction.  The whole Tangential Blower cross blower fan is treated with electrophoretic paint, which has better anti-rust effect and more beautiful appearance

Quick Review:



Product Name: 45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A Motor Type: MH6016-16179
Rated Voltage/Frequency: 115V 60Hz Current(A): 0.45
Input Power(W): 26W Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Spee(m/s): 8.2 Air VolumeCFM): 73
Application: Stove Agency: UL
High Light: 45mm Tangential Blower ,Cross Flow Fan Large Air Volume, Efficient Air Supply ,115V 60HZ 0.45A



45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A 0




FEATURE:

Small volume, large air volume, efficient air supply.
45mm diameter impeller, saving equipment space, low noise.
Applications are in a variety of fields, including food heating.
Driven by a C-FRAME covered pole motor.
The motor can be installed in any four positions. (Motor can be mounted in any of 4 positions.)
Ball bearing structure, suitable for high temperature environment, long life.
A wide range of properties to choose from.





Curve Performance:



45mm Tangential Blower Cross Flow Fan Large Air Volume, Efficient Air Supply 115V 60HZ 0.45A 1




FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
