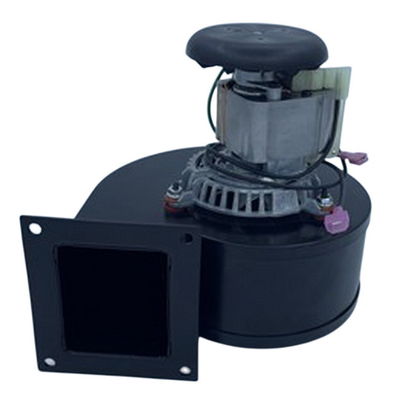

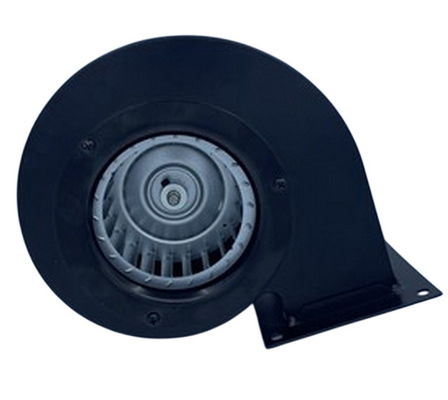

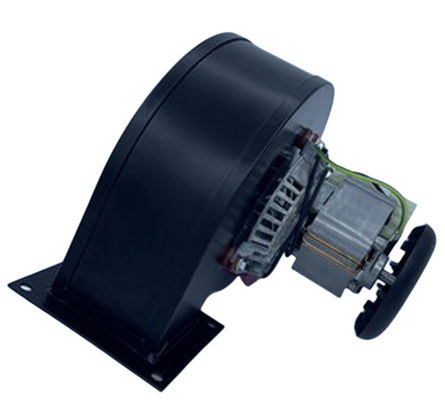

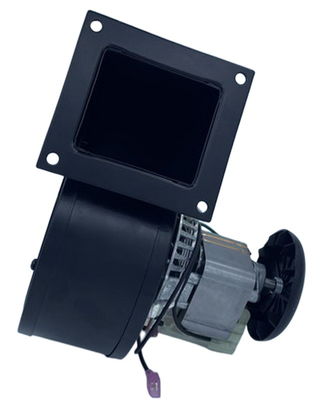

115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement

115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement
115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement 115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement 115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement 115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement

Large Image :  115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6038-38298
Payment & Shipping Terms:
Minimum Order Quantity: 320PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work day
Payment Terms: T/T
Supply Ability: 1500pcs/day

115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement

Description
MH MODEL: MH6038-38298 Product Name: 115W 115V High Efficiency Pellet Stove Convection Fan Motor Blower
Rated Voltage/Frequency: 115Vac/60Hz Current(A): 2.0
Input Power(W): 115W Speed(RPM): 2800
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: Ball Bearing
Insulation Class: H Agency: UL
Thermally Protected: TP Wind Speed(m/s): 15
Air Volume(CFM): 142 Application: Pellet Stove/fireplace
High Light:

115W pellet stove fan motor

,

115V pellet stove fan motor

,

60Hz 3 speed fan motor replacement

115W 115V High Efficiency Pellet Stove Convection Fan Motor Blower



This fan motor blower is a high air volume, high efficiency designed, providing effective convection air movement within the pellet stove for improved heat distribution and the functions as the convection fan for the pellet stove, helping to circulate the heated air throughout the room or space.  It offers high efficiency, reliable performance, and quiet operation. It helps to improve heat distribution within the pellet stove, providing effective convection air movement for enhanced comfort and warmth.



 Quick Detail:



MH MODEL: MH6038-38298 Product Name: 115W 115V High Efficiency Pellet Stove Convection Fan Motor Blower
Rated Voltage/Frequency: 115Vac/60Hz Current(A): 2.0
Input Power(W): 115W Speed(RPM): 2800
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: Ball Bearing
Insulation Class: H Agency: UL
Thermally Protected: TP Wind Speed(m/s): 15
Air Volume(CFM): 142 Application: Pellet Stove/Fireplace



115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement 0



Production Features:

1.Be powered by C- frame shaded pole motor, high efficiency and large volume.

2. Quiet ,Vibration-free motor design.

3. Thermally Protected Ball Bearing Design.

4. Complete assembly with gasket included.

5. Improves fireplace efficiency, Helps reduce costly energy bills, Heats large rooms effectively,

6. Can handle up to 500°F air in housing.

7. Cooling Fan Design for the motor.

8. High volume and efficient blower fans are typically used in real fireplaces to quickly increase the temperature of large areas in a room.



Air Flow Curve:

115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement 1





Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team. We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.



115W 115V Pellet Stove Fan Motor Convection 3 Speed Fan Motor Replacement 2

FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
