Product Details:
|
Product Name: | 60X120mm Tangential Blower Cross Flow Fan Large Volum And Low Noise 115V 60HZ | Motor Type: | MH6022-22180 |
---|---|---|---|
Rated Voltage/Frequency: | 115V 60Hz | Current(A): | 0.54 |
Input Power(W): | 32W | Speed(RPM): | 3000 |
Hi-Pot TEST: | 1500vac50hz,3Ma,1s | Bearing Type: | Sleeve Bearing |
Insulation Class: | H | Thermally Protected: | TP |
Wind Spee(m/s): | 7.8 | Air VolumeCFM): | 79 |
Application: | Stove | Agency: | ETL |
High Light: | Large volum Cross Flow Fan,115V Cross Flow Fan,60X120mm Cross Flow Fan |

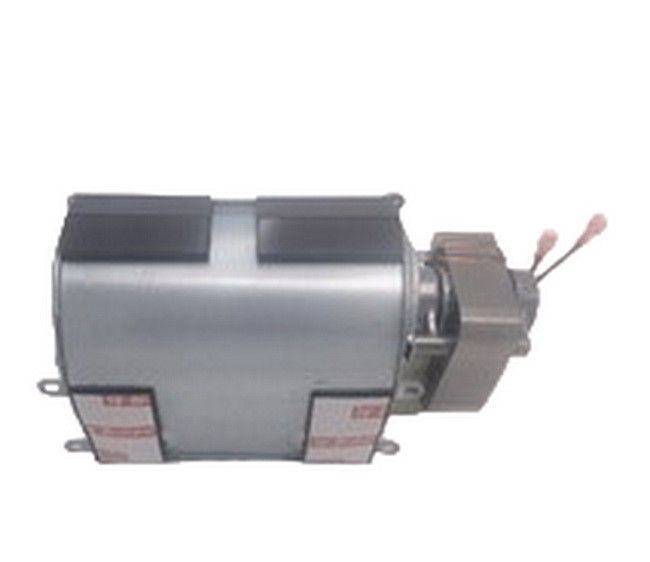

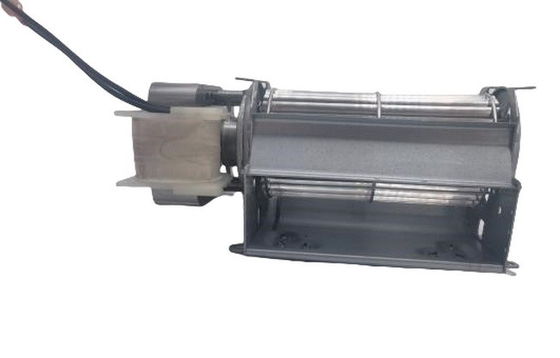

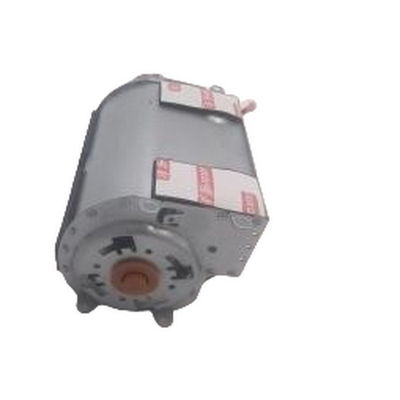

60X120mm Tangential Blower Cross Flow Fan Large volum and low noise 115V 60HZ
The Tangential Blower cross blower fan provides a high airflow rate, delivers efficient air delivery with wide air supply, high air volume delivery.
The cross flow fan/tangential fan is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction. The whole Tangential Blower cross blower fan is treated with electrophoretic paint, which has better anti-rust effect and more beautiful appearance
Quick Review:
Product Name: | 60X120mm Tangential Blower Cross Flow Fan Large Volum And Low Noise 115V 60HZ | Motor Type: | MH6022-22180 |
---|---|---|---|
Rated Voltage/Frequency: | 115V 60Hz | Current(A): | 0.54 |
Input Power(W): | 32W | Speed(RPM): | 3000 |
Hi-Pot TEST: | 1500vac50hz,3Ma,1s | Bearing Type: | Sleeve Bearing |
Insulation Class: | H | Thermally Protected: | TP |
Wind Spee(m/s): | 7.8 | Air VolumeCFM): | 79 |
Application: | Stove | Agency: | ETL |
High Light: | 60X120mm, Tangential Blower, Cross Flow Fan ,Large Volum And Low Noise ,115V 60HZ |
FEATURE:
60mmX120mm impeller, large air volume, low noise.
The innovative air flow system design reduces the entire system cost and simplifies the whole machine structure.
Applications in a variety of fields, including food heating, fireplaces.
Driven by a C-FRAME covered pole motor.
The motor can be installed in any four positions. (Motor can be mounted in any of 4 positions.)
Ball bearings are optional
Curve Performance:
Performance :
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
