230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN with high temperature oven

230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN  with high temperature oven
230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN  with high temperature oven 230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN  with high temperature oven 230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN  with high temperature oven 230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN  with high temperature oven

Large Image :  230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN with high temperature oven

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE/CCC/ETL
Model Number: MH6038-38024
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN with high temperature oven

Description
MH MODEL: MH6038-38024 Product Name: 230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN With High Temperature Oven
Rated Voltage/Frequency: 230Vac/50Hz Current(A): 0.55
Input Power(W): 55W Speed(RPM): 2100±100
Hi-Pot TEST: 1800vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H (Z.P) Agency: CE/CCC/ETL
Application: Oven/hot Cupboard High Light: Hot Air Oven Air ,Circulation Oven Fan, Ac Shade Pole Motor ,230V 50HZ 55W,high Termperature Oven

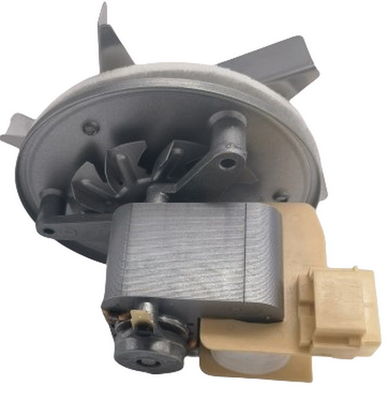

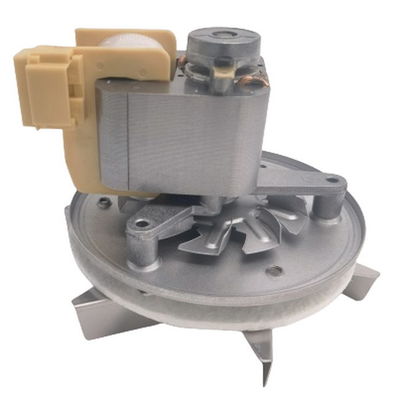

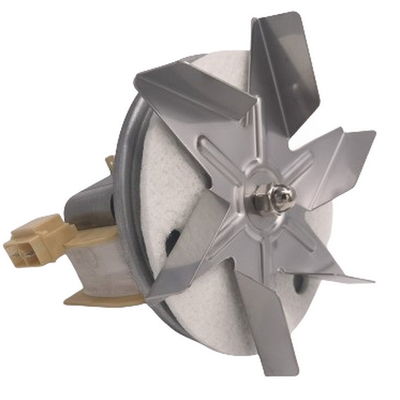

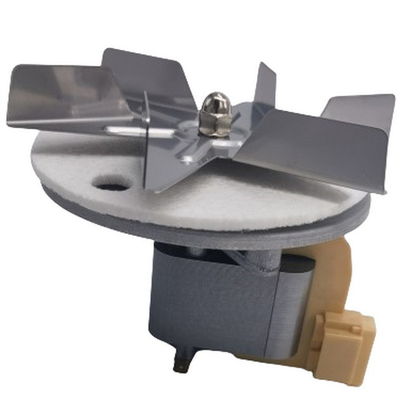

230V 50Hz 55W Universal Hot air Fan Motor For High Temperature Oven



This serials motor typically used in high temperature hot air ovens, toasters, hot cupboard, insulated food carts, and other equipment.These motors main function is to provide strong power and stable operation, ensuring that the equipment can efficiently perform operations such as baking, heating, and insulation.



In addition, they have the advantages of a simple structure, low noise, and small size, making them suitable for use in various high-temperature environments.



Production Feature:



• Plug and play
• Mature and reliable shaded pole motor technology
• Heat-resistant fan made of stainless steel
• Operating temperature range of 120 - 500°C
• Motor assembly installed with metal disk, mounted outside the oven for easy installation
• Heat-resistant ball bearing shaft design
• Independent insulation cotton design to improve motor lifespan.



Quick Detail



Model Type:MH6038-38024

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 230Vac/50Hz Hi-Pot TEST 1800vac50hz,3Ma,1s
Current(A) 0.55 Bearing Type NMB Ball Bearing
Input Power(W) 55 Insulation Class H (Z.P)
Speed(RPM) 2100 Agency Certification CE/CCC/ETL



 Can be customized as your request , please contact us !



230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN  with high temperature oven 0

Performance Curve



230V 50Hz 55W UNIVERSAL HOT AIR CIRCULATION FAN MOTOR FOR HOT CUPBOARD ELECTRIC OVEN  with high temperature oven 1
