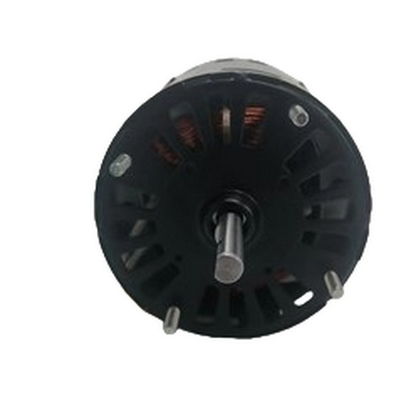

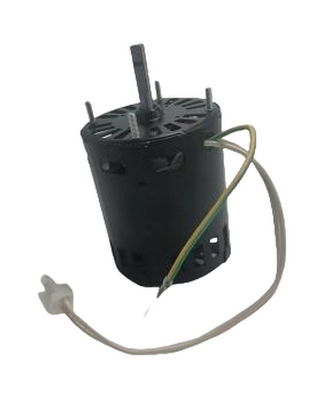

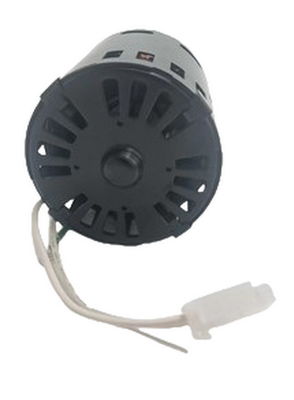

3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
Customer Reviews
For many years we are buying blower fans with MH motor. We are happy to work with them.

—— Roymond

We trust a lot in MH motor! Their motors is the best replacement from FASCO option for us in the market.

—— Edmund Anjum

MH motor is very reliable at product quality and lead time. We have worked with them for 7 years.

—— Abdul Hameed

Motors are running good for my customers' equipment, Very happy to cooperate with MHmotors

—— Roxy Gutierrez

I'm Online Chat Now

3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491

3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491
3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491 3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491 3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491 3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491

Large Image :  3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH8433-84137
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491

Description
MH MODEL: MH8433-84137 Product Name: 3.3 Inch 2P Motor To Be Used For Bathroom Ventilating Fans And Pellet Stove Replacement 712113137 / 702112491
Rated Voltagrial: 120V 60Hz Current(A): 1.8
Input Power(W): 147W Speed(RPM): 3000
Hi-Pot TEST: 1500vac50Hz,3mA,1S Bearing Type: BALL BEARING
Insulation Class: B Agency: UL
Thermally Protected: TP Application: BATHROOM FAN ,FIREPLACE,STOVE
High Light: 3.3 Inch 2P Motor, Used For Bathroom Ventilating Fans And Pellet Stove , Replacement 712113137 / 702112491

3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491



This motor is specifically engineered to enhance the performance of pump fans and the pellet stove and fireplace stove. By incorporating this 3.3 inch motor into your setup, you can ensure improved air circulation and ventilation efficiency, making it an excellent choice for both residential and commercial applications. Whether replacing an old motor or building a new ventilation system, this motor is a dependable option for your solutions , it can be replacement the model 712113137, 702112491



MH MODEL: MH8433-84137 Product Name: 3.3 Inch 2P Motor To Be Used For Bathroom Ventilating Fans And Pellet Stove Replacement 712113137 / 702112491
Rated Voltagrial: 120V 60Hz Current(A): 1.8
Input Power(W): 147W Speed(RPM): 3000
Hi-Pot TEST: 1500vac50Hz,3mA,1S Bearing Type: BALL BEARING
Insulation Class: B Agency: UL
Thermally Protected: TP Application: BATHROOM FAN ,FIREPLACE,STOVE
High Light: 3.3 Inch 2P Motor, Used For Bathroom Ventilating Fans And Pellet Stove , Replacement 712113137 / 702112491





dimensions can be customized according to customer requirements.



3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491 0

Production Description:



3.3'' diameter 2-pole shaded pole motor, made from high-quality electrical steel. Typically used in machinery and fan blades. Multiple installation structures available. Multiple connection options available: wire/quick terminal structure. Various shaft sizes available. Options for ball bearings or oil-impregnated bearings. High-strength steel housing. Product safety certification: UL.



Applications:

Typically used in applications with high starting loads, such as water pumps, forced ventilation systems, and commercial kitchen equipment blowers.



Performance Curve:

3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491 1







Our Products Advantage:



A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.


B.High efficiency.


C. Low noise.



Our mission:



1. Provide competitive and premium quality solutions, products and services to our valuable clients.

2. Trained, knowledgeable and committed staff with strong synergy.

3. Seek growth through innovative solutions & market expansion.

4. Continuously improve entire business process.



3.3 inch 2P Motor to be used for Bathroom Ventilating Fans and pellet stove replacement 712113137 / 702112491 2



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor
