Product Details:
|
| Product Name: | China 2.38" 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole | Motor Type: | MH6029-29406 |
|---|---|---|---|
| Rated Voltage/Frequency: | 277Vac/60Hz | Current（A): | 0.4A |
| Input Power（W）: | 62W | Output Speed（RPM): | 3000 |
| Hi-Pot TEST: | 1800vac50hz,1Ma,1s | Bearing Type: | SLEEVE BEARING |
| Insulation Class: | H | Agency: | ETL |
| Protect Method: | TP | Application: | PUMP |
| High Light: | China 2.38" 62W, Skeleton Frame Electric Fan Motors Ac Shaded Pole | ||
| High Light: | 62W Electric Fan Motors,China Electric Fan Motors,2.38” Electric Fan Motors |
||

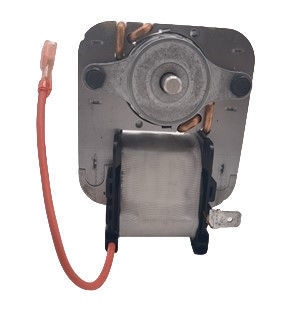

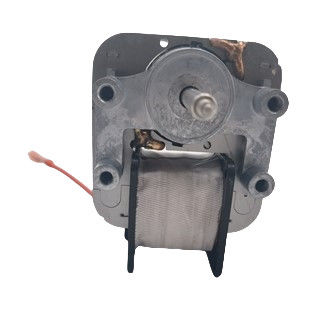

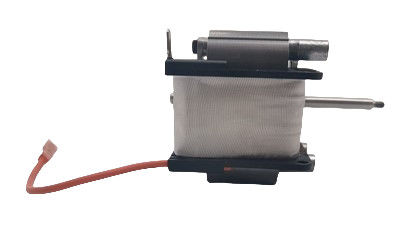

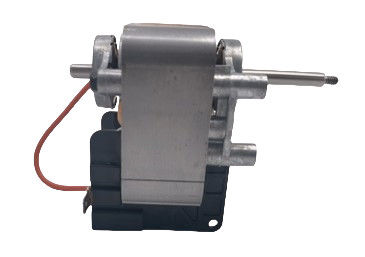

China 2.38" 62W skeleton frame Electric Fan Motors Ac Shaded Pole
Can be customized according to customer requirements, please contanct us.
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) | Max Torque(Oz.in) | Max HP Output |
| 9.53(3/8) | 110-120 220-240 |
50/60 | 3000 | 1.4 | 1/225 |
| 12.50(1/2) | 3000 | 3.1 | 1/112 | ||
| 15.63(5/8) | 3000 | 4.3 | 1/90 | ||
| 18.75(3/4) | 3000 | 6 | 1/60 | ||
| 21.88(7/8) | 3000 | 7.5 | 1/45 | ||
| 25.40(1) | 3000 | 9.3 | 1/40 | ||
| 28.123(1 1/8) | 3000 | 11.2 | 1/30 | ||
| 34.93(1 3/8) | 3000 | 16 | 1/25 | ||
| 38.10(1 1/2) | 3000 | 18.5 | 1/18 | ||
| 50.80(2) | 3000 | 24.8 | 1/13 |
Production Feature :
2.38’’ C-FRAME MOTOR
Heavy-duty steel and die-cast construction
Several shaft size options
Several mounting options available
Several lead configurations available
Ball bearing or Sleeve bearing available
Air Flow Curve
Outline
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
