157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque

157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque
157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque 157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque 157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque 157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque

Large Image :  157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: NA
Model Number: MH84-84544
Payment & Shipping Terms:
Minimum Order Quantity: 360PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque

Description
Product Name: China 3.3" Frame 157W AC Shade Pole Electric Blower Motor For Strong Torque Rated Voltage/Frequency: 115V60Hz
Current(A): 2.09 Input Power(W): 157
Output Speed(RPM): 1500 Hi-Pot TEST: 1500vac50Hz,1mA,1S
Bearing Type: Sleeve Bearing Insulation Class: B
Agency: NA Application: OVEN,FIREPLACE
Protect Method: TP Output Torque(IN.OZ): 37.6
High Light:: 3.3" Motor, Strong Torque
High Light:

157W single phase fan

,

single phase fan

,

electric furnace blower motor replacement

China 3.3" frame 157W AC shade pole electric blower motor for strong torque

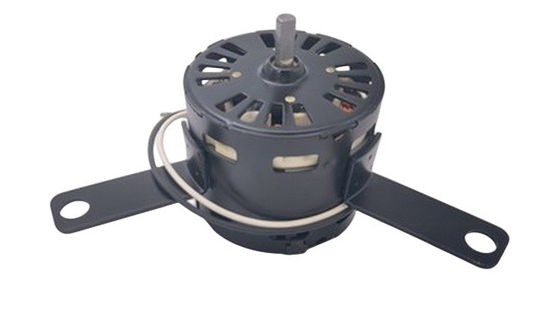

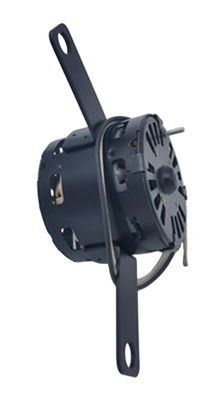

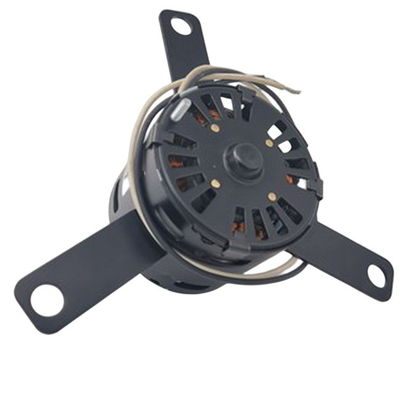

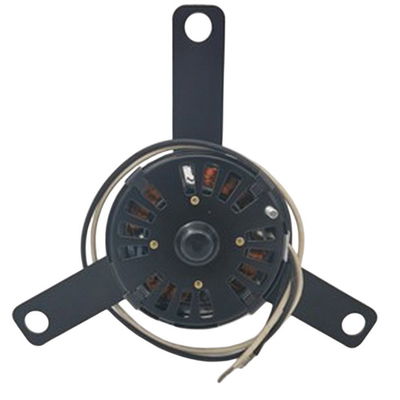

The motor is an AC electric motor designed with a 3.3-inch frame. It has a rated power of 157W, delivering excellent power performance. One of the notable features of this motor is its strong torque output, making it particularly suitable for applications that require high torque. This motor is commonly used in applications that involve larger startup loads, such as in strong exhaust systems, commercial kitchen equipment blowers, and hot air circulation.



Quick Review

Product Name: China 3.3" Frame 157W AC Shade Pole Electric Blower Motor For Strong Torque Rated Voltage/Frequency: 115V60Hz
Current(A): 2.09 Input Power(W): 157
Output Speed(RPM): 1500 Hi-Pot TEST: 1500vac50Hz,1mA,1S
Bearing Type: Sleeve Bearing Insulation Class: B
Agency: NA Application: OVEN,FIREPLACE
Protect Method: TP Output Torque(IN.OZ): 37.6



157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque 0



Production Description:



1. Has a diameter of 3.3 inches and is made of high-quality electrical steel material.

2. It is typically used in applications such as machinery and fan blades.

3. Multiple installation structures are available for selection.

4. Various connection methods are available, including wire or quick terminal structures.

5. Multiple shaft sizes are available for selection.

6. Ball bearings or oil-impregnated bearings can be chosen.

7. The motor features a high-strength steel housing.



MH brand Shaded pole 3.3-inch diameter HVAC AC motors have a low starting torque that provides a smooth and quiet start up while being more economical than other types of replacement motors used in blower applications such as bathroom fans and range hoods.



157W AC Shade Pole 3.3" Frame Electric Furnace Blower Motor Replacement For Strong Torque 1



Our Products Advantage:





A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.


B.High efficiency.


C. Low noise.





FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
