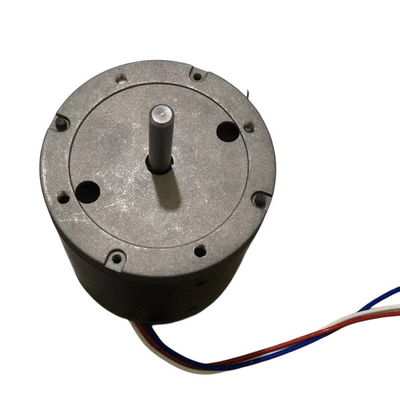

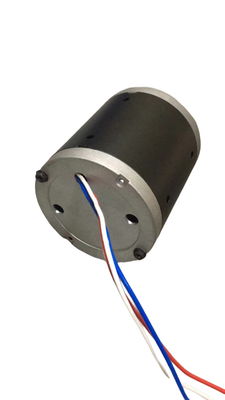

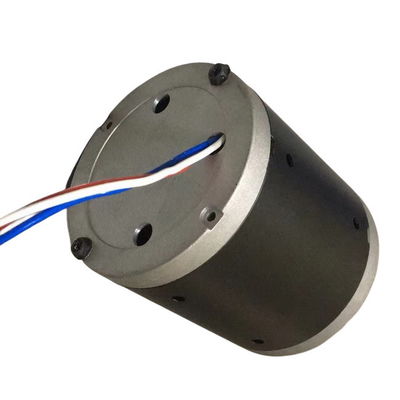

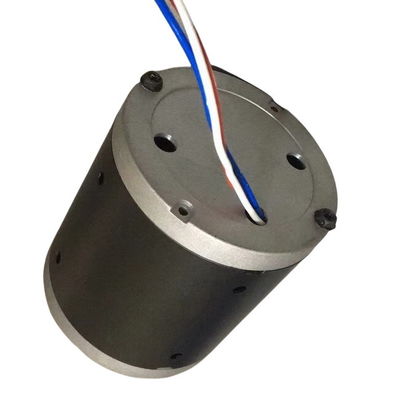

20W 4P PSC 3.3 Frame Motor Single Phase Fan Motor For Transformer Power Switch

20W 4P PSC 3.3 Frame Motor  Single Phase Fan Motor For Transformer Power Switch
20W 4P PSC 3.3 Frame Motor  Single Phase Fan Motor For Transformer Power Switch 20W 4P PSC 3.3 Frame Motor  Single Phase Fan Motor For Transformer Power Switch 20W 4P PSC 3.3 Frame Motor  Single Phase Fan Motor For Transformer Power Switch 20W 4P PSC 3.3 Frame Motor  Single Phase Fan Motor For Transformer Power Switch

Large Image :  20W 4P PSC 3.3 Frame Motor Single Phase Fan Motor For Transformer Power Switch

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: NA
Model Number: MH844-20W
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

20W 4P PSC 3.3 Frame Motor Single Phase Fan Motor For Transformer Power Switch

Description
Product Name: 3.3" Frame 20W 4P PSC Single Phase Motor For Transformer Power Switch Rated Voltage/Frequency: 115V60Hz
Current(A): 0.58 Ouput Power(W): 20W
Output Speed(RPM): 1477 Insulation Class: F
Protect Method: NO LRT Torque(Nm): 0.15
BDT Torque(Nm): 0.2 FLT (Nm): 0.13
Bearing Type: Ball Bearing Application: Transformer Power Switch
Agency: NA High Light:: 3.3" Motor, Instant Reverse
High Light:

20W 3.3 Frame Motor

,

4P 3.3 Frame Motor

,

single phase fan motor 0.58A

3.3" frame 20W 4P PSC single phase motor for transformer power switch



In the field of transformer power switches, this motor can be used to drive switch devices, enabling the startup, shutdown, and power switching functions of the transformer. Its low power and high energy efficiency characteristics make it an economical and efficient choice. The motor is capable of instant reverse function and with oil and high-temperature resistant lead wire. It provides reliable power control for transformers, making it an economical and efficient solution.



Quick Review:



Product Name: 3.3" Frame 20W 4P PSC Single Phase Motor For Transformer Power Switch Rated Voltage/Frequency: 115V60Hz
Current(A): 0.58 Ouput Power(W): 20W
Output Speed(RPM): 1477 Insulation Class: F
Protect Method: NO LRT Torque(Nm): 0.15
BDT Torque(Nm): 0.2 FLT (Nm): 0.13
Bearing Type: Ball Bearing Application: Transformer Power Switch
Agency: NA High Light:: 3.3" Motor, Instant Reverse



20W 4P PSC 3.3 Frame Motor  Single Phase Fan Motor For Transformer Power Switch 0



Main Application:



20W 4P PSC 3.3 Frame Motor  Single Phase Fan Motor For Transformer Power Switch 1



Our Products Advantage:



A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.


B.High efficiency.


C. Low noise.



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
