Product Details:
|
| Product Name: | China 3.3" Frame AC Shade Pole Electric Blower Motor Dual Voltage 146/122W | Rated Voltage/Frequency: | 120/240V 60Hz |
|---|---|---|---|
| Current（A): | 1.79/0.75 | Input Power（W）: | 146/122 |
| Output Speed（RPM): | 2900/3000 | Hi-Pot TEST: | 1500vac50hz,3Ma,1s |
| Bearing Type: | Ball Bearing | Insulation Class: | B |
| Agency: | UL | Application: | OVEN,FIREPLACE |
| Protect Method: | TP | High Light:: | 3.3" Motor, Dual Voltage 146W/122W |
| High Light: | 1.79A 3.3 Frame Motor,3.3 Frame Motor 146W,dual voltage motor 122W |
||

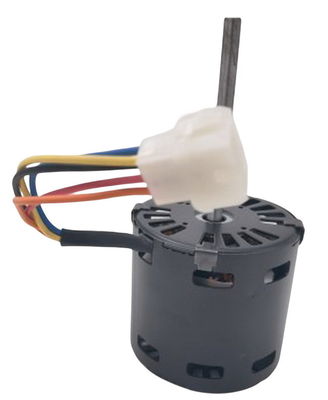

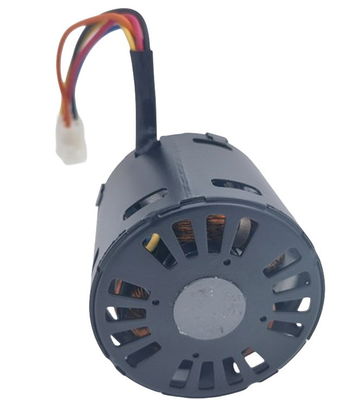

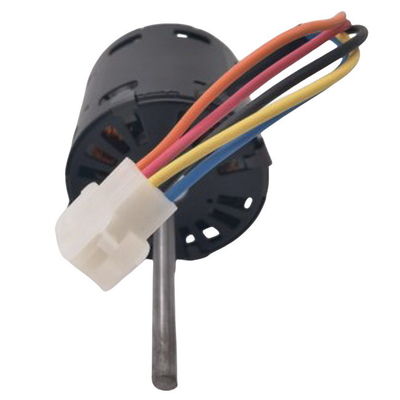

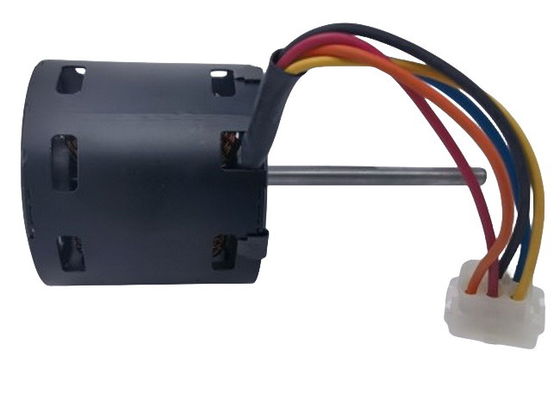

China 3.3" frame AC shade pole electric blower motor dual voltage 146/122W
Production Description:
1. 3.3 inches diameter
2. High-quality electrical steel material
3. Typically used in machinery and fan blades, among others
4. Multiple installation structures to choose from
5. Multiple connection methods available: wire/quick terminal structure
6. Multiple shaft sizes to choose from
7. Options for ball bearings and oil-impregnated bearings
8. High-strength steel casing
9. Product safety certification: UL
MH brand Shaded pole 3.3-inch diameter HVAC AC motors have a low starting torque that provides a smooth and quiet start up while being more economical than other types of replacement motors used in blower applications such as bathroom fans and range hoods.
Technical Parameters:
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) |
Max Torque (Oz.in) |
Max HP Output |
| 15.88(5/8) | 110-120 220-240 |
50/60 | 3000 | 7 | 1/50 |
| 20.6(13/16) | 3000 | 11 | 1/30 | ||
| 25.4(1) | 3000 | 13 | 1/25 | ||
| 31.75(1 1/4) | 3000 | 15 | 1/25 | ||
| 38.1(1 1/2) | 3000 | 21 | 1/20 | ||
| 44.45(1 3/4) | 3000 | 26 | 1/15 | ||
| 50.8(2) | 3000 | 30 | 1/12 |
Ps: Listed are representative motors, only for reference,
Dimensions can be customized according to customer requirements.
Performance Curve :
Our Products Advantage:
A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.
B.High efficiency.
C. Low noise.
Prodcution Package :
Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
