Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH84-84386
Payment & Shipping Terms:
Minimum Order Quantity: 360PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

AC Shade Pole 3.3 Frame Motor Small Electric Fan Motor 71W 0.94A 115V UL Agency

Description

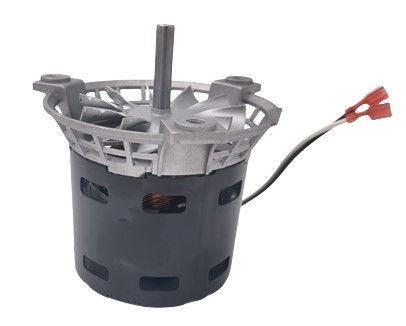

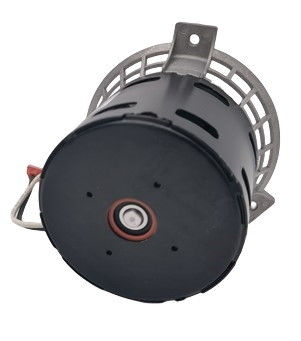

Product Name: China 3.3" Frame AC Shade Pole Electric Blower Motor 71W 0.94A 115V UL Agency Motor Type: MH84-84386
Rated Voltage/Frequency: 115V60Hz Current(A): 0.94A
Input Power(W): 71W Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: B Protect Method: TP
Application: PUMP,OVEN,FIREPLACE Agency: UL
High Light:: 3.3" Motor, Mini Fan Motor ODM Solutions:: Customized AC And EC Motors
High Light:

3.3 Frame Motor 71W

,

3.3 Frame Motor 0.94A

,

small electric fan motor 115V

China 3.3" frame AC shade pole electric blower motor 71W 0.94A 115V UL agency



Production Description:



1. 3.3 inches Made of high-quality electrical steel material .

2. Typically used in machinery and fan blades, among others .

3. Multiple mounting structures available for selection

4. Multiple connection options: wire or quick-connect terminal structure

5. Multiple shaft sizes available for selection

6. Choice of ball bearings or oil-impregnated bearings

7. High-strength steel housing

8. Option for either vented or unvented end caps, or internal self-cooling fan.

9. Typically used in applications with larger startup loads, such as water pumps, high-volume exhaust systems, commercial kitchen equipment ventilation, and hot air circulation.



MH brand Shaded pole 3.3-inch diameter HVAC AC motors have a low starting torque that provides a smooth and quiet start up while being more economical than other types of replacement motors used in blower applications such as bathroom fans and range hoods.



Quick Review:



Product Name: China 3.3" Frame AC Shade Pole Electric Blower Motor 71W 0.94A 115V UL Agency Motor Type: MH84-84386
Rated Voltage/Frequency: 115V60Hz Current(A): 0.94A
Input Power(W): 71W Output Speed(RPM): 3000
Hi-Pot TEST: 1500vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: B Protect Method: TP
Application: PUMP,OVEN,FIREPLACE Agency: UL
High Light:: 3.3" Motor, Mini Fan Motor ODM Solutions:: Customized AC And EC Motors



Specification can be customized according to customer requirements.

AC Shade Pole 3.3 Frame Motor Small Electric Fan Motor 71W 0.94A 115V UL Agency 0

Performance Curve: (Same as MH84-84186)

AC Shade Pole 3.3 Frame Motor Small Electric Fan Motor 71W 0.94A 115V UL Agency 1





Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
