3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
Customer Reviews
For many years we are buying blower fans with MH motor. We are happy to work with them.

—— Roymond

We trust a lot in MH motor! Their motors is the best replacement from FASCO option for us in the market.

—— Edmund Anjum

MH motor is very reliable at product quality and lead time. We have worked with them for 7 years.

—— Abdul Hameed

Motors are running good for my customers' equipment, Very happy to cooperate with MHmotors

—— Roxy Gutierrez

I'm Online Chat Now

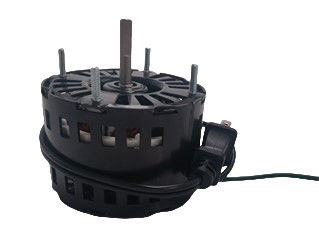

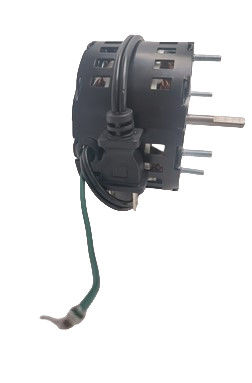

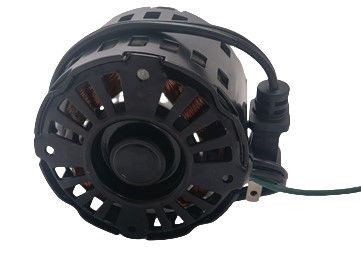

3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W

3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W
3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W 3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W 3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W 3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W

Large Image :  3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH-8433-75-0001
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable ( EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W

Description
MH MODEL: MH-8433-75-0001 Product Name: 3.3 Inch Diameter Motor To Be Used For Bathroom Ventilating Fans And Parking Ventilating Fans
Rated Voltagrial: 115V 60HZ Current(A): 1.2
Input Power(W): 75W Speed(RPM): 1550
Hi-Pot TEST: 1500vac50Hz,3mA,1S Bearing Type: BALL BEARING
Insulation Class: H Agency: UL
Thermally Protected: TP Application: BATHROOM FAN
High Light:

26W Bathroom Fan Motor

,

3.3 inch Bathroom Fan Motor

,

Customized Bathroom Fan Motor


3.3 inch Diameter Motor to be used for Bathroom Ventilating Fans and Parking Ventilating Fans

This motor is specifically engineered to enhance the performance of bathroom fans and other similar ventilation equipment. By incorporating this 3.3 inch motor into your setup, you can ensure improved air circulation and ventilation efficiency, making it an excellent choice for both residential and commercial applications. Whether replacing an old motor or building a new ventilation system, this motor is a dependable option for your bathroom fan needs

Specs data:


MH MODEL:MH-8433-75-0001Product Name:3.3 Inch Diameter Motor To Be Used For Bathroom Ventilating Fans And Parking Ventilating Fans
Rated Voltagrial:115V 60HZCurrent(A):1.2
Input Power(W):75WSpeed(RPM):1550
Hi-Pot TEST:1500vac50Hz,3mA,1SBearing Type:BALL BEARING
Insulation Class:HAgency:UL
Thermally Protected:TPApplication:BATHROOM FAN
High Light:3.3 Inch Diameter Motor ,to Be Used For Bathroom Ventilating Fans ,and Parking Ventilating Fans


dimensions can be customized according to customer requirements.



Production Description:

1. 3.3 inches diameter
2. High-quality electrical steel material
3. Typically used in machinery and fan blades, among others
4. Multiple installation structures to choose from
5. Multiple connection methods available: wire/quick terminal structure
6. Multiple shaft sizes to choose from
7. Options for ball bearings and oil-impregnated bearings
8. High-strength steel casing
9. No hole or hole end cover, or internal self-cooling fan
10. Product safety certification: UL




Outline drawing :
3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W 0

Product Applications:

1. Fan blower
2. Ventilating fan
3. Gas furnace
4. Bathroom ventilation equipment
5. Kitchen ventilation equipment




Prodcution Package :

Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.


3.3 inch Customized Asynchronous Shaded Pole Motor Bathroom Fan Motor 26W 1


FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor
