Product Details:
|
| MH MODEL: | MH-8433-75-0001 | Product Name: | 3.3 Inch Diameter Motor To Be Used For Bathroom Ventilating Fans And Parking Ventilating Fans |
|---|---|---|---|
| Rated Voltagrial: | 115V 60HZ | Current（A): | 1.2 |
| Input Power（W): | 75W | Speed（RPM): | 1550 |
| Hi-Pot TEST: | 1500vac50Hz,3mA,1S | Bearing Type: | BALL BEARING |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Application: | BATHROOM FAN |
| High Light: | 3.3 inch Diameter Motor,Parking Ventilating Fans Motor,Bathroom Ventilating Fans Motor |
||

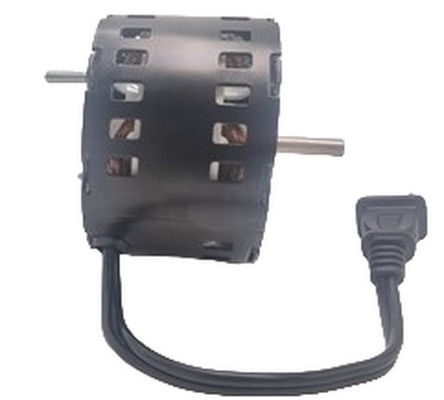

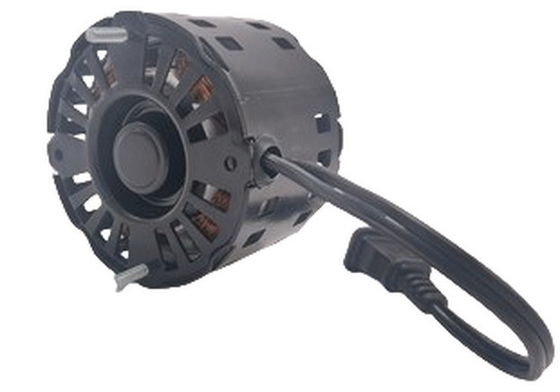

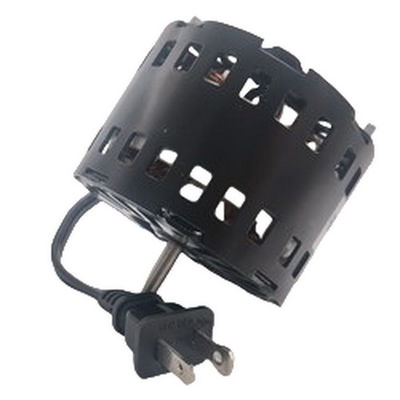

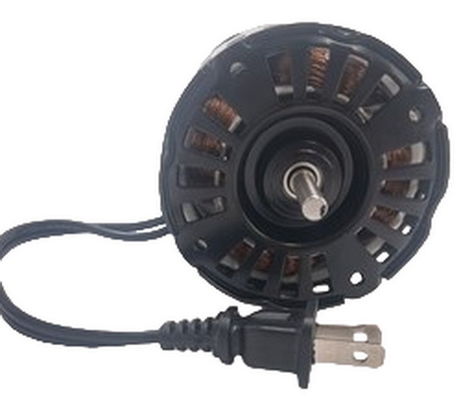

3.3 inch Diameter Motor to be used for Bathroom Ventilating Fans and Parking Ventilating Fans
This motor is specifically engineered to enhance the performance of bathroom fans and other similar ventilation equipment. By incorporating this 3.3 inch motor into your setup, you can ensure improved air circulation and ventilation efficiency, making it an excellent choice for both residential and commercial applications. Whether replacing an old motor or building a new ventilation system, this motor is a dependable option for your bathroom fan needs
| MH MODEL: | MH-8433-75-0001 | Product Name: | 3.3 inch Diameter Motor to be used for Bathroom Ventilating Fans and Parking Ventilating Fans |
|---|---|---|---|
| Rated Voltagrial: | 120V 60HZ | Current(A): | 1.2 |
| Input Power(W): | 75W | Speed(RPM): | 1550 |
| Hi-Pot TEST: | 1500vac50Hz,3mA,1S | Bearing Type: | BALL BEARING |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Application: | BATHROOM FAN |
| High Light: | 3.3 inch Diameter Motor to be used for Bathroom Ventilating Fans and Parking Ventilating Fans | ||
dimensions can be customized according to customer requirements.
Production Description:
1. 3.3 inches diameter
2. High-quality electrical steel material
3. Typically used in machinery and fan blades, among others
4. Multiple installation structures to choose from
5. Multiple connection methods available: wire/quick terminal structure
6. Multiple shaft sizes to choose from
7. Options for ball bearings and oil-impregnated bearings
8. High-strength steel casing
9. No hole or hole end cover, or internal self-cooling fan
10. Product safety certification: UL
Outline drawing :
Our Products Advantage:
A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.
B.High efficiency.
C. Low noise.
PERFORMANCE CURVE:
Prodcution Package :
Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor
