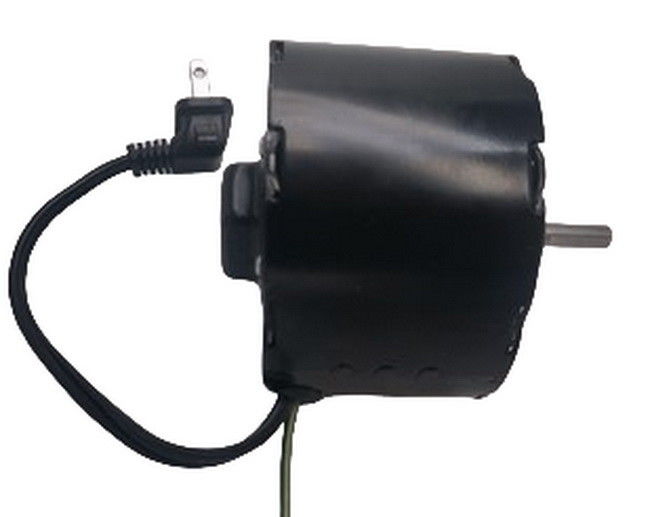

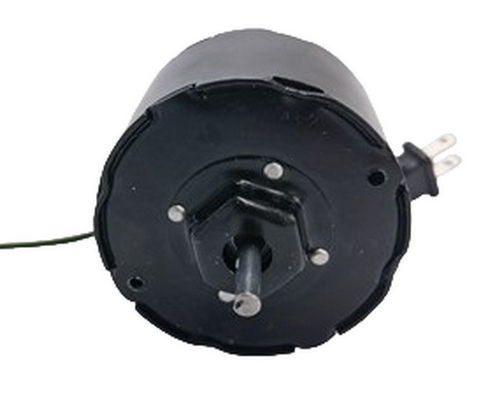

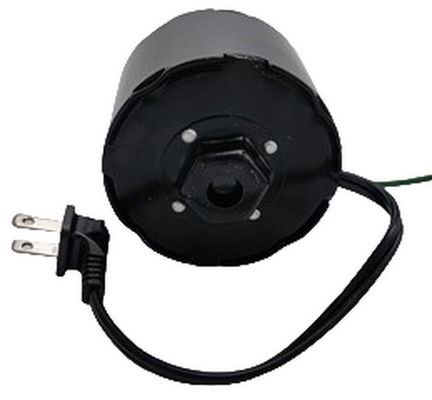

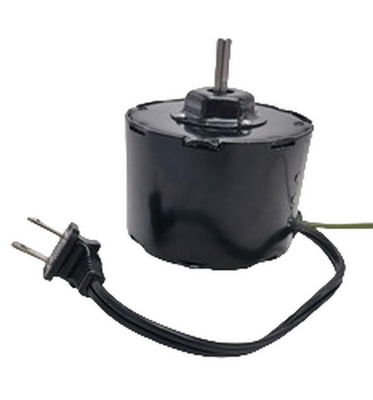

Product Details:
|
| Product Name: | 3.3" Frame AC Shade Pole Bathroom Motor Blower 50W 120V | Rated Voltage/Frequency: | 120V 60Hz |
|---|---|---|---|
| Current（A): | 0.9 | Input Power（W）: | 50 |
| Output Speed（RPM): | 1550 | Hi-Pot TEST: | 1500vac50hz,3Ma,1s |
| Bearing Type: | Ball Bearing | Insulation Class: | H |
| Agency: | UL | Application: | Bathroom Fan BLOWER |
| Protect Method: | TP | High Light:: | 3.3" Motor, Bathroom Fan Motor |
| High Light: | 120V AC Shade Pole Motor,bathroom AC Shade Pole Motor,50W AC Shade Pole Motor |
||
China 3.3" frame AC shade pole electric blower motor dual voltage 146/144W
Production Description:
1. 3.3 inches Made of high-quality electrical steel material .
2. Typically used in machinery and fan blades, among others .
3. Multiple mounting structures available for selection
4. Multiple connection options: wire or quick-connect terminal structure
5. Multiple shaft sizes available for selection
6. Choice of ball bearings or oil-impregnated bearings
7. High-strength steel housing
8. Option for either vented or unvented end caps, or internal self-cooling fan.
9. Typically used in applications with larger startup loads, such as in the field of high-volume exhaust, commercial kitchen equipment ventilation, and hot air circulation.
MH brand Shaded pole 3.3-inch diameter HVAC AC motors have a low starting torque that provides a smooth and quiet start up while being more economical than other types of replacement motors used in blower applications such as bathroom fans and range hoods.
Technical Parameters:
| Stack Length (L) (mm/inch) | Voltage (V) | Frequency (Hz) | Speed(RPM) |
Max Torque (Oz.in) |
Max HP Output |
| 15.88(5/8) | 110-120 220-240 |
50/60 | 3000 | 7 | 1/50 |
| 20.6(13/16) | 3000 | 11 | 1/30 | ||
| 25.4(1) | 3000 | 13 | 1/25 | ||
| 31.75(1 1/4) | 3000 | 15 | 1/25 | ||
| 38.1(1 1/2) | 3000 | 21 | 1/20 | ||
| 44.45(1 3/4) | 3000 | 26 | 1/15 | ||
| 50.8(2) | 3000 | 30 | 1/12 |
Ps: Listed are representative motors, only for reference,
Dimensions can be customized according to customer requirements.
Our Products Advantage:
A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.
B.High efficiency.
C. Low noise.
Performance curve:
Prodcution Package :
Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
Production Feature :
