90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage

90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage
90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage 90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage 90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage 90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage

Large Image :  90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6038-38641
Payment & Shipping Terms:
Minimum Order Quantity: 360PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage

Description
Product Name: 90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage Motor Type: MH6038-38641
Rated Voltage/Frequency: 220V/60Hz Current(A): 0.82
Input Power(W): 90 Speed(RPM): 2480
Air Flow(CFM): 295 Bearing Type: NMB Ball Bearing
Insulation Class: H Protection Method: TP(THERMAL PROTECTOR)
Safe Certification: ETL Hi-Pot TEST: 1500VAC,50Hz1mA,1S
Application: WOOD STOVE Stator Vibration(cm/s): 0.25
High Light: 90W 220V 60HZ, Convection Blower Motor, High Temperature Wheel, Dual Cage
High Light:

90W Convection Blower Motor

,

Dual Cage Blower Convection Motor

,

220V Blower Convection Motor

90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage

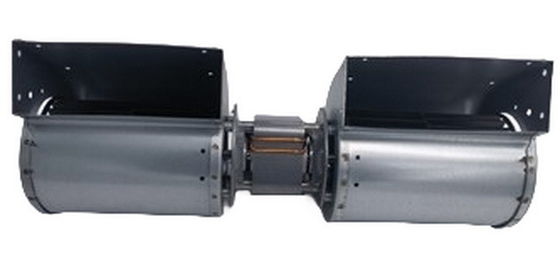

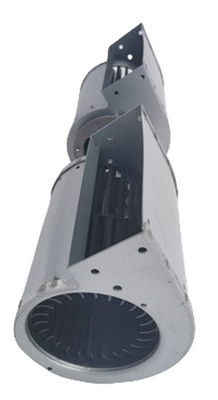

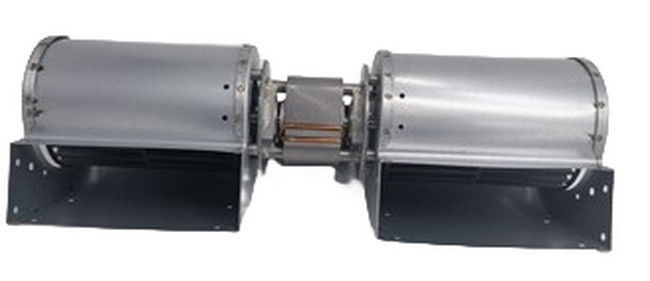

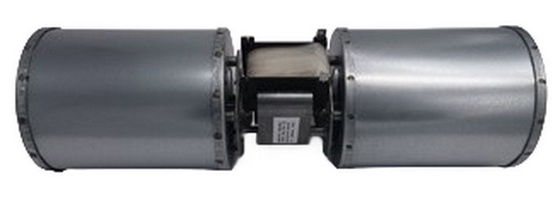

This dual squirrel cage blower motor is specifically designed with the high temperature wheel to operate in high-temperature environments. The motor utilizes an AC shade pole design, which offers a simple and reliable structure while operating relatively quietly.



The blower motor can be used in various applications such as high-temperature ventilation, heat dissipation, and cooling. It helps increase air circulation and improve heat distribution, enhancing system efficiency and performance.



Quick Review:



Product Name: 90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage Motor Type: MH6038-38641
Rated Voltage/Frequency: 220V/60Hz Current(A): 0.82
Input Power(W): 90 Speed(RPM): 2480
Air Flow(CFM): 295 Bearing Type: NMB Ball Bearing
Insulation Class: H Protection Method: TP(THERMAL PROTECTOR)
Safe Certification: ETL Hi-Pot TEST: 1500VAC,50Hz1mA,1S
Application: WOOD STOVE Stator Vibration(cm/s): 0.25



90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage 0







Production Description:



1.DOUBLE cage blower

2. High temperature ball bearing construction

3. Isolation mounting to dampen noise and vibration

4. Quiet Better Design.

5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient

6. Superbly balanced.

7. High temperature wheel

8. Premium Sealed ball bearing motor.



Air Flow Curve:

90W 220V 60HZ Convection Blower Motor High Temperature Wheel Dual Cage 1
