Product Details:
|
| Product Name: | AC Shade Pole 64W 1.0A 115V High Temperature Wheel Convection Blower Motor- 4X4 Squirrel Cage | Motor Type: | MH6038-38003 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V/60Hz | Current（A): | 0.93 |
| Input Power（W）: | 64 | Speed（RPM): | 2676 |
| Air Flow（CFM): | 150 | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
| Safe Certification: | UL | Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
| Wind Speed(m/s): | 11.5 | Application: | WOOD STOVE |
| Stator Vibration(cm/s): | 0.25 | High Light: | AC Shade Pole, 64W 1.0A 115V, High Temperature Wheel Convection Blower Motor,4X4 Squirrel Cage |
| High Light: | 64W Convection Blower Motor,1.0A Convection Blower Motor,115V ball bearing motor |
||

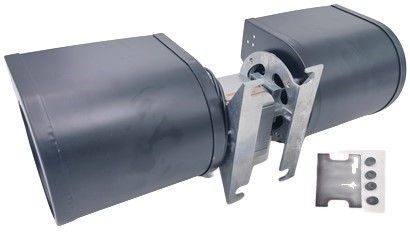

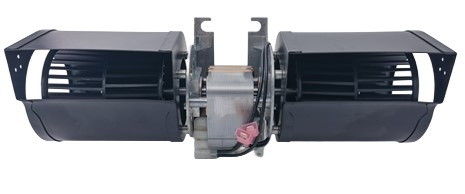

AC Shade Pole 64W 1.0A 115V High Temperature Wheel Convection Blower Motor- 4X4 squirrel cage
This 4X4 squirrel cage blower motor is specifically designed with the high temperature wheel to operate in high-temperature environments. The motor utilizes an AC shade pole design, which offers a simple and reliable structure while operating relatively quietly.
The blower motor can be used in various applications such as high-temperature ventilation, heat dissipation, and cooling. It helps increase air circulation and improve heat distribution, enhancing system efficiency and performance.
Quick Review:
| Product Name: | AC Shade Pole 64W 1.0A 115V High Temperature Wheel Convection Blower Motor | Motor Type: | MH6038-38003 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V/60Hz | Current(A): | 1.0 |
| Input Power(W): | 64 | Speed(RPM): | 2676 |
| Air Flow(CFM): |
150 |
Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
| Safe Certification: |
UL
|
Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
| Wind Speed(m/s): |
11.5
|
Application: | WOOD STOVE |
| Stator Vibration(cm/s): | 0.25 | High Light: | AC Shade Pole, 64W 1.0A 115V, High Temperature Wheel Convection Blower Motor,4X4 squirrel cage |
Production Description:
1. 4X4 squirrel cage blower
2. High temperature ball bearing construction
3. Isolation mounting to dampen noise and vibration
4. Quiet Better Design.
5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient
6. Superbly balanced.
7. Housings can painted
8. High temperature wheel
9. Premium Sealed ball bearing motor.
Air Flow Curve:
