4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater

4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater
4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater 4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater 4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater 4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater

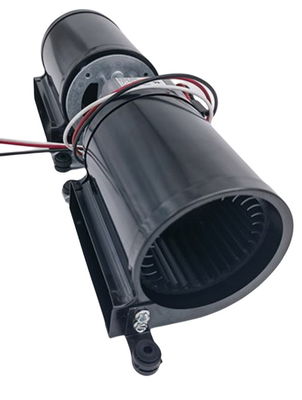

Large Image :  4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6029-29282
Payment & Shipping Terms:
Minimum Order Quantity: 288PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1000PCS/day

4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater

Description
Product Name: AC Shade Pole Premium Sealed Ball Bearing Convection Blower Motor- 4X4 Squirrel Cage Motor Type: MH6029-29282
Rated Voltage/Frequency: 115V/60Hz Current(A): HIGH:0.9;LOW:0.46
Input Power(W): HIGH:55;LOW:28 Speed(RPM): HIGH:2300;LOW:1250
Air Flow(CFM): HIGH:93;LOW:45 Wind Speed(m/s): HIGH:9.2;LOW:4.3
Bearing Type: NMB Ball Bearing Insulation Class: H
Protection Method: TP(THERMAL PROTECTOR) Safe Certification: UL
Hi-Pot TEST: 1500VAC,50Hz1mA,1S Application: WOODEN STOVE
Stator Vibration(cm/s): 0.25 High Light: AC Shade Pole, Premium Sealed Ball Bearing, Convection Blower Motor- 4X4 Squirrel Cage
High Light:

4X4 squirrel cage Convection Blower Motor

,

Convection Blower Motor 115V

,

heater blower motor 1500VAC

AC shade pole Premium Sealed ball bearing Convection Blower Motor- 4X4 squirrel cage



This 4X4 squirrel cage blower motor is specifically designed with the high temperature wheel and premium sealed ball bearing to operate in high-temperature environments. The motor utilizes an AC shade pole design, which offers a simple and reliable structure while operating relatively quietly.



The convection blower motor is also designed to be resistant to shocks, which means it can withstand vibrations and impacts without being damaged. This feature ensures the motor's durability and reliability in different operating conditions.



Quick Review:



Product Name: AC Shade Pole Premium Sealed Ball Bearing Convection Blower Motor- 4X4 Squirrel Cage Motor Type: MH6029-29282
Rated Voltage/Frequency: 115V/60Hz Current(A): HIGH:0.9;LOW:0.46
Input Pow95er(W): HIGH:55;LOW:28 Speed(RPM): HIGH:2300;LOW:1250
Air Flow(CFM): HIGH:93;LOW:45 Wind Speed(m/s): HIGH:9.2;LOW:4.3
Bearing Type: NMB Ball Bearing Insulation Class: H
Protection Method: TP(THERMAL PROTECTOR) Safe Certification: UL
Hi-Pot TEST: 1500VAC,50Hz1mA,1S Application: WOODEN STOVE
Stator Vibration(cm/s): 0.25 High Light: AC Shade Pole, Premium Sealed Ball Bearing, Convection Blower Motor- 4X4 Squirrel Cage



Production Description:



1. 4X4 squirrel cage blower

2. High temperature ball bearing construction

3. Isolation mounting to dampen noise and vibration

4. Quiet Better Design.

5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient

6. Superbly balanced.

7. Housings BE painted

8. High temperature wheel

9. Premium Sealed ball bearing motor.

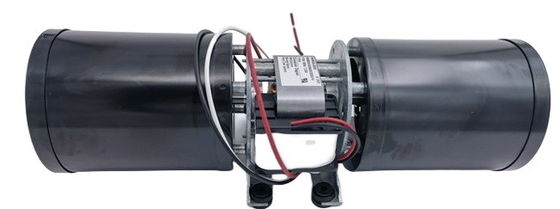

4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater 0

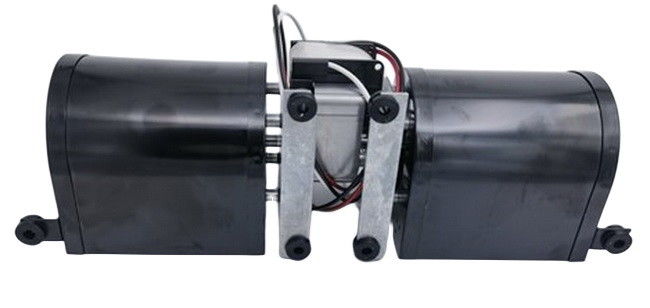

4X4 Squirrel Cage Convection Blower Motor Premium Sealed Ball Bearing Heater 1

FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
