Product Details:
|
Product Name: | AC Shade Pole 64W 1.0A 115V Premium Sealed Ball Bearing Convection Blower Motor- 4X4 Squirrel Cage | Motor Type: | MH6038-38607 |
---|---|---|---|
Rated Voltage/Frequency: | 115V/60Hz | Current(A): | 0.93 |
Input Power(W): | 64 | Speed(RPM): | 2700 |
Air Flow(CFM): | 158.7 | Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
Safe Certification: | UL | Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
Wind Speed(m/s): | 15.2 | Application: | WOOD STOVE |
Stator Vibration(cm/s): | 0.25 | High Light: | AC Shade Pole, 64W 1.0A 115V, Premium Sealed Ball Bearing, Convection Blower Motor,4X4 Squirrel Cage |
High Light: | AC Shade Pole convection fan motor,convection fan motor 64W,ball bearing motor 115V |

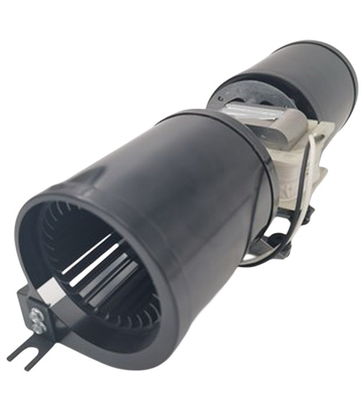

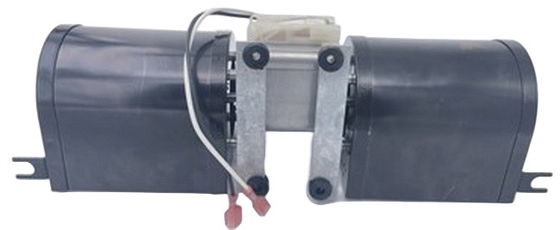

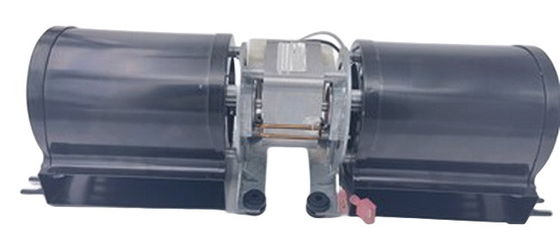

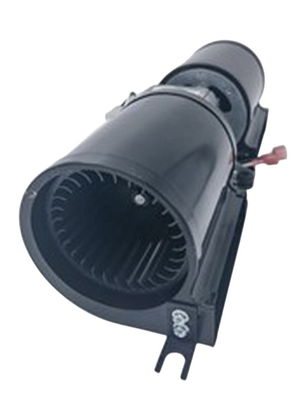

AC Shade Pole 64W 1.0A 115V Premium Sealed ball bearing Convection Blower Motor- 4X4 squirrel cage
This 4X4 squirrel cage blower motor is specifically designed with the high temperature wheel to operate in high-temperature environments. The motor utilizes an AC shade pole design, which offers a simple and reliable structure while operating relatively quietly.
The blower motor can be used in various applications such as high-temperature ventilation, heat dissipation, and cooling. It helps increase air circulation and improve heat distribution, enhancing system efficiency and performance.
Quick Review:
Product Name: | AC Shade Pole 64W 1.0A 115V Premium Sealed ball bearing Convection Blower Motor- 4X4 squirrel cage | Motor Type: | MH6038-38607 |
---|---|---|---|
Rated Voltage/Frequency: | 115V/60Hz | Current(A): | 1.0 |
Input Power(W): | 64 | Speed(RPM): | 2676 |
Air Flow(CFM): |
158.7 |
Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
Safe Certification: |
UL
|
Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
Wind Speed(m/s): |
15.2
|
Application: | WOOD STOVE |
Stator Vibration(cm/s): | 0.25 | High Light: | AC Shade Pole, 64W 1.0A 115v Premium Sealed ball bearing Convection Blower Motor,4X4 squirrel cage |
Production Description:
1. 4X4 squirrel cage blower
2. High temperature ball bearing construction
3. Isolation mounting to dampen noise and vibration
4. Quiet Better Design.
5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient
6. Superbly balanced.
7. Housings can painted
8. High temperature wheel
9. Premium Sealed ball bearing motor.
Air Flow Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
