Product Details:
|
| Product Name: | AC Shade Pole 64W 115V Wooden Stove Convection Blower Motor High Temperature NMB Bearing | Motor Type: | MH6038-38041 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V/60Hz | Current（A): | 1.0 |
| Input Power（W）: | 64 | Speed（RPM): | 2676 |
| Air Flow（CFM): | 150 | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
| Safe Certification: | UL/ETL | Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
| Wind Speed(m/s): | 11.5 | Application: | WOOD STOVE |
| High Light: | Wooden Stove Convection Blower Motor,64W Blower Convection Motor,AC Shade Pole Blower Convection Motor |
||

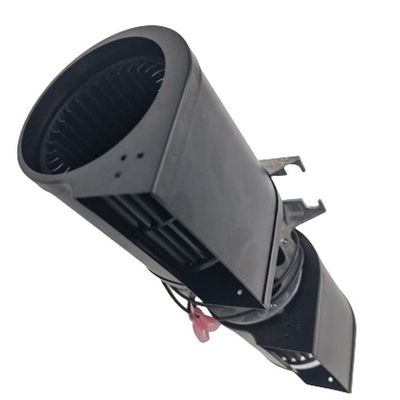

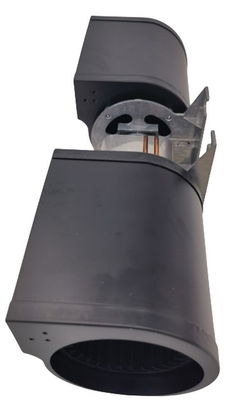

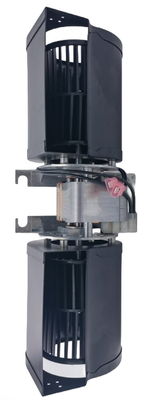

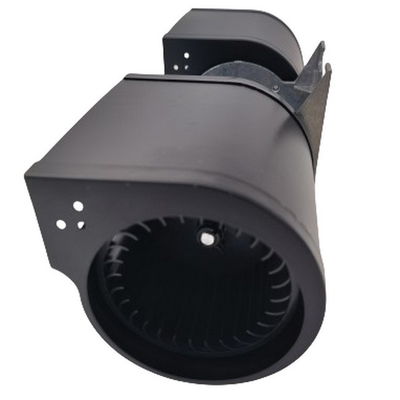

AC Shade Pole 64W 115V Wooden Stove Convection Blower Motor High Temperature NMB bearing
This 4X4 squirrel cage blower motor is specifically designed with the high temperature wheel to operate in high-temperature environments. The motor utilizes an AC shade pole design, which offers a simple and reliable structure while operating relatively quietly.
The blower motor can be used in various applications such as high-temperature ventilation, heat dissipation, and cooling. It helps increase air circulation and improve heat distribution, enhancing system efficiency and performance.
Quick Review:
| Product Name: | AC Shade Pole 64W 115V Wooden Stove Convection Blower Motor High Temperature NMB Bearing | Motor Type: | MH6038-38041 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V/60Hz | Current(A): | 1.0 |
| Input Power(W): | 64 | Speed(RPM): | 2676 |
| Air Flow(CFM): | 150 | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
| Safe Certification: | UL/ETL | Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
| Wind Speed(m/s): | 11.5 | Application: | WOOD STOVE |
Production Description:
1. 4X4 squirrel cage blower
2. High temperature ball bearing construction
3. Isolation mounting to dampen noise and vibration
4. Quiet Better Design.
5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient
6. Superbly balanced.
7. Housings can painted
8. High temperature wheel
9. Premium Sealed ball bearing motor.
Air Flow Curve:
