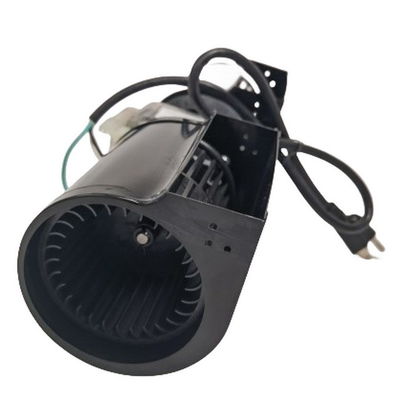

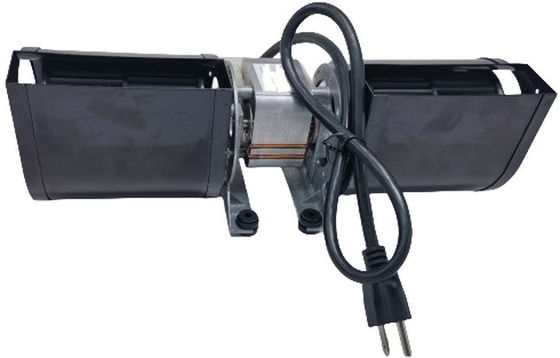

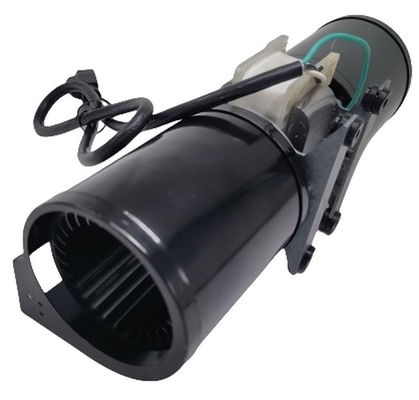

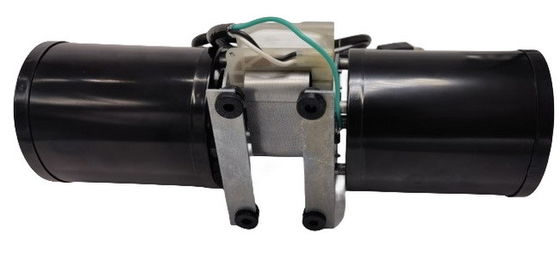

AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted

AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted
AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted

Large Image :  AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL/ETL
Model Number: MH6038-38014
Payment & Shipping Terms:
Minimum Order Quantity: 288PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1000PCS/day

AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted

Description
Product Name: AC 88W 115V 60Hz 4X4 Squirrel Cage Convection Blower Motor With Housing Painted Motor Type: MH6038-38014
Rated Voltage/Frequency: 115V/60Hz Current(A): 1.5
Input Pow95er(W): 88 Speed(RPM): 2720
Air Flow(CFM): 142 Wind Speed(m/s): 12
Bearing Type: NMB Ball Bearing Insulation Class: H
Protection Method: TP(THERMAL PROTECTOR) Safe Certification: UL/ETL
Hi-Pot TEST: 1500VAC,50Hz1mA,1S Application: WOODEN STOVE
Stator Vibration(cm/s): 0.25
High Light:

88 W Convection Blower Motor

,

Convection Blower Motor with housing painted

,

60Hz Blower Convection Motor

AC 88W 115V 60Hz 4X4 Squirrel Cage Convection Blower Motor with housing painted



This 4X4 squirrel cage blower motor is specifically designed with the high temperature wheel to operate in high-temperature environments. The motor utilizes an AC shade pole design, which offers a simple and reliable structure while operating relatively quietly.



The convection blower motor is also designed to be resistant to shocks, which means it can withstand vibrations and impacts without being damaged. This feature ensures the motor's durability and reliability in different operating conditions.



Quick Review:



Product Name: AC 88W 115V 60Hz 4X4 Squirrel Cage Convection Blower Motor with housing painted Motor Type: MH6038-38014
Rated Voltage/Frequency: 115V/60Hz Current(A): 1.5
Input Pow95er(W): 88 Speed(RPM): 2750
Air Flow(CFM): 142 Wind Speed(m/s): 12
Bearing Type: NMB Ball Bearing Insulation Class: H
Protection Method: TP(THERMAL PROTECTOR) Safe Certification: ETL
Hi-Pot TEST: 1500VAC,50Hz1mA,1S Application: WOODEN STOVE
Stator Vibration(cm/s): 0.25 High Light: NA



Air Flow Curve:



AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted 0



Production Description:



1. 4X4 squirrel cage blower

2. High temperature ball bearing construction

3. Isolation mounting to dampen noise and vibration

4. Quiet Better Design.

5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient

6. Superbly balanced.

7. Housings can painted

8. High temperature wheel

9. Premium Sealed ball bearing motor.

10. Design of shockproof magnetic strips



AC 88W 115V 60Hz Convection Blower Motor 4X4 Squirrel Cage With Housing Painted 1
