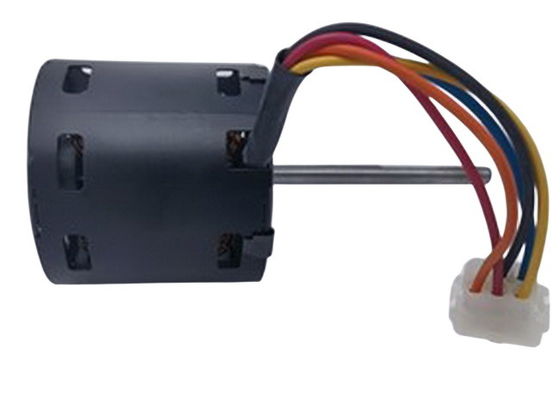

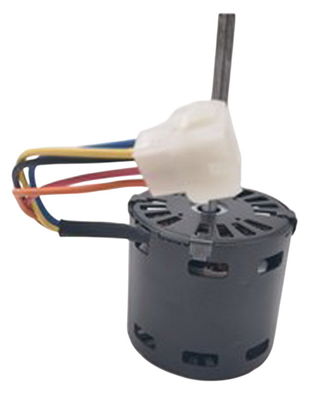

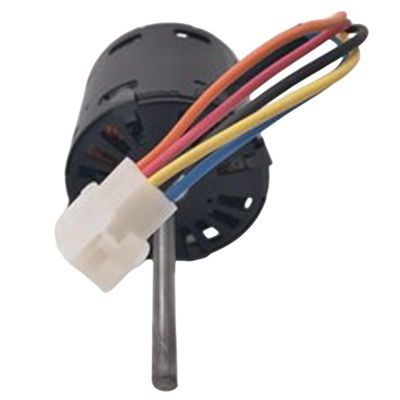

3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W

3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W
3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W 3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W 3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W

Large Image :  3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH84-84194
Payment & Shipping Terms:
Minimum Order Quantity: 360PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W

Description
Product Name: China 3.3" Frame AC Shade Pole Electric Blower Motor Dual Voltage 146/144W Rated Voltage/Frequency: 120/240V 60Hz
Current(A): 1.79/0.89 Input Power(W): 146/144
Output Speed(RPM): 2700/2700 Hi-Pot TEST: 1500vac50hz,3Ma,1s
Bearing Type: Ball Bearing Insulation Class: B
Agency: UL Application: Ventilating Fan
Protect Method: TP Output Torque(IN.OZ): 9
High Light:: 3.3" Motor, Mini Fan Motor ODM Solutions:: Customized AC And EC Motors
High Light:

3.3" electric motor blower

,

electric motor blower 146W

,

dual voltage electric motor 144W

China 3.3" frame AC shade pole electric blower motor dual voltage 146/144W



Production Description:



1. 3.3 inches Made of high-quality electrical steel material .

2. Typically used in machinery and fan blades, among others .

3. Multiple mounting structures available for selection

4. Multiple connection options: wire or quick-connect terminal structure

5. Multiple shaft sizes available for selection

6. Choice of ball bearings or oil-impregnated bearings

7. High-strength steel housing

8. Option for either vented or unvented end caps, or internal self-cooling fan.

9. Typically used in applications with larger startup loads, such as in the field of high-volume exhaust, commercial kitchen equipment ventilation, and hot air circulation.



MH brand Shaded pole 3.3-inch diameter HVAC AC motors have a low starting torque that provides a smooth and quiet start up while being more economical than other types of replacement motors used in blower applications such as bathroom fans and range hoods.





Technical Parameters:



Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM)

Max Torque

(Oz.in)

Max HP
Output
15.88(5/8) 110-120
220-240
50/60 3000 7 1/50
20.6(13/16) 3000 11 1/30
25.4(1) 3000 13 1/25
31.75(1 1/4) 3000 15 1/25
38.1(1 1/2) 3000 21 1/20
44.45(1 3/4) 3000 26 1/15
50.8(2) 3000 30 1/12



Ps: Listed are representative motors, only for reference,

Dimensions can be customized according to customer requirements.

3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W 0



Our Products Advantage:



A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.


B.High efficiency.


C. Low noise.




Prodcution Package :



Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.





3.3" Frame AC Shade Pole Electric Motor Blower Dual Voltage Electric Motor 146W 144W 1



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.



Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
