Product Details:
|
| Product Name: | AC Shade Pole Double Cage Blowe Dual Voltage Convection Blower Motor | Motor Type: | MH84-YJF42S |
|---|---|---|---|
| Rated Voltage/Frequency: | 240/120V 50/60Hz | Current（A): | 1.33/0.83 |
| Input Pow95er（W）: | 113/118 | Speed（RPM): | 2600/3000 |
| Air Flow（CFM): | 238/250 | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
| Safe Certification: | ETL | Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
| Application: | WOODEN STOVE | Stator Vibration(cm/s): | 0.25 |
| High Light: | AC Shade Pole , Double Cage Blowe Dual Voltage ,Convection Blower Motor | ||
| High Light: | Shade Pole Convection Blower Motor,Convection Blower Motor 2600RPM,ac fan motor Double Cage |
||

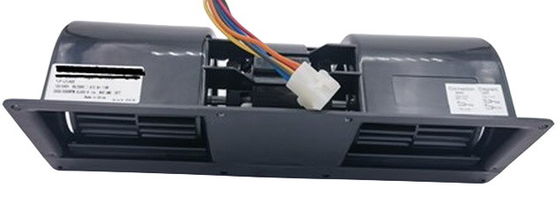

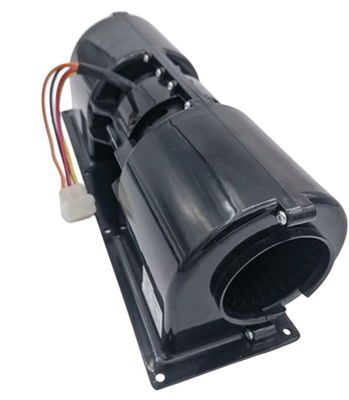

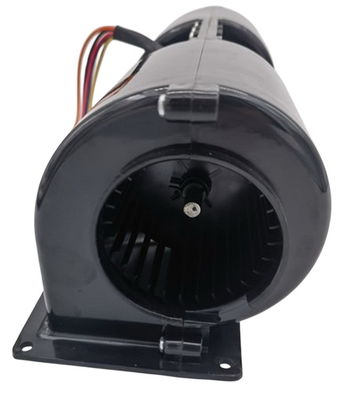

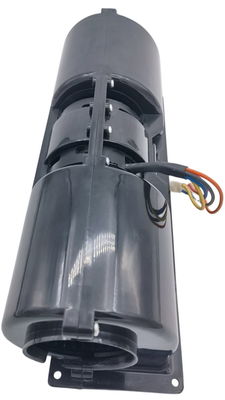

AC shade pole Double cage blowe dual Voltage Convection Blower Motor
The motor features a double cage design for the blower. The blower refers to the component responsible for drawing in and circulating air. The double cage design enhances the motor's starting torque and efficiency, making it suitable for applications where high airflow is required. It can be used with two different voltage levels. This flexibility allows the motor to be compatible with different electrical systems or applications, providing versatility in its usage.
Quick Review:
| Product Name: | AC Shade Pole Double Cage Blowe Dual Voltage Convection Blower Motor | Motor Type: | MH84-YJF42S |
|---|---|---|---|
| Rated Voltage/Frequency: | 240/120V 50/60Hz | Current(A): | 1.33/0.83 |
| Input Pow95er(W): | 113/118 | Speed(RPM): | 2600/3000 |
| Air Flow(CFM): | 238/250 | Bearing Type: | NMB Ball Bearing |
| Insulation Class: | H | Protection Method: | TP(THERMAL PROTECTOR) |
| Safe Certification: | ETL | Hi-Pot TEST: | 1500VAC,50Hz1mA,1S |
| Application: | WOODEN STOVE | Stator Vibration(cm/s): | 0.25 |
Performance Curves:
Production Description:
1. Double cage blower.
2. High temperature ball bearing construction
3. Quiet Better Design.
4. Powered by3.3’ Shaded Pole Motor, long lasting and energy efficient
5. Superbly balanced.
6. High temperature wheel
7. Premium Sealed ball bearing motor.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
