Product Details:
|
| Product Name: | AC 95W Shockproof Magnetic Strips Convection Blower Motor- 4X4 Squirrel Cage | Motor Type: | MH6051-51105 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V/60Hz | Current（A): | 1.55 |
| Input Pow95er（W）: | 55 | Speed（RPM): | 2150 |
| Air Flow（CFM): | 116 | Wind Speed(m/s): | 11 |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Protection Method: | TP(THERMAL PROTECTOR) | Safe Certification: | ETL |
| Hi-Pot TEST: | 1500VAC,50Hz1mA,1S | Application: | WOODEN STOVE |
| Stator Vibration(cm/s): | 0.25 | High Light: | AC Shade Pole 95W,shockproof Magnetic Strips Design, Convection Blower Motor- 4X4 Squirrel Cage |
| Highlight: | 95W convection oven motor,convection oven motor shockproof,95W blower motor fan |
||

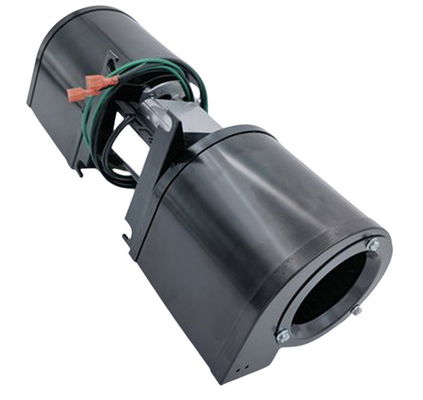

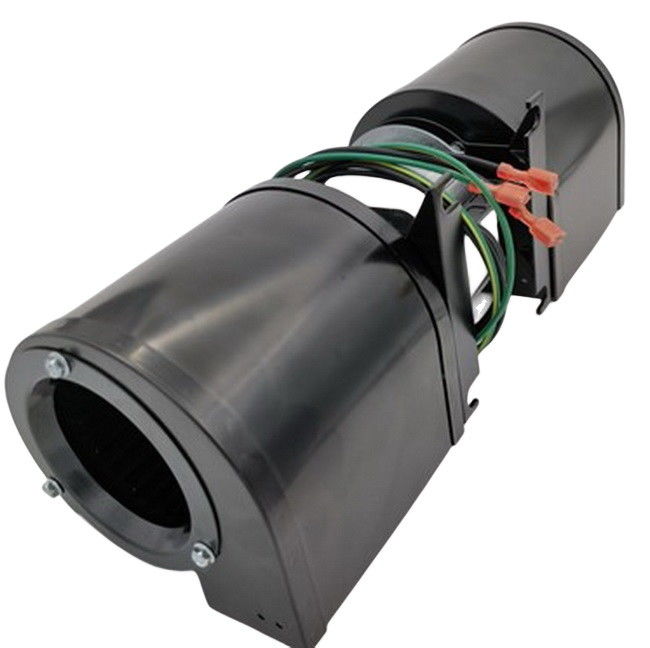

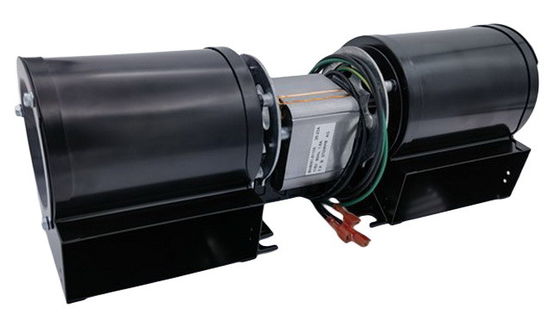

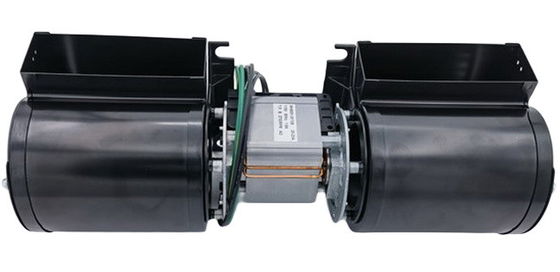

AC 95W shockproof magnetic strips Convection Blower Motor- 4X4 squirrel cage
This 4X4 squirrel cage blower motor is specifically designed with the high temperature wheel to operate in high-temperature environments. The motor utilizes an AC shade pole design, which offers a simple and reliable structure while operating relatively quietly.
The convection blower motor is also designed to be resistant to shocks, which means it can withstand vibrations and impacts without being damaged. This feature ensures the motor's durability and reliability in different operating conditions.
Quick Review:
| Product Name: | AC 95W Shockproof Magnetic Strips Convection Blower Motor- 4X4 Squirrel Cage | Motor Type: | MH6051-51105 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V/60Hz | Current(A): | 1.55 |
| Input Pow95er(W): | 55 | Speed(RPM): | 2150 |
| Air Flow(CFM): | 116 | Wind Speed(m/s): | 11 |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Protection Method: | TP(THERMAL PROTECTOR) | Safe Certification: | ETL |
| Hi-Pot TEST: | 1500VAC,50Hz1mA,1S | Application: | WOODEN STOVE |
| Stator Vibration(cm/s): | 0.25 | High Light: | AC Shade Pole 95W,shockproof Magnetic Strips Design, Convection Blower Motor- 4X4 Squirrel Cage |
Air Flow Curve:
Production Description:
1. 4X4 squirrel cage blower
2. High temperature ball bearing construction
3. Isolation mounting to dampen noise and vibration
4. Quiet Better Design.
5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient
6. Superbly balanced.
7. Housings can painted
8. High temperature wheel
9. Premium Sealed ball bearing motor.
10. Design of shockproof magnetic strips
