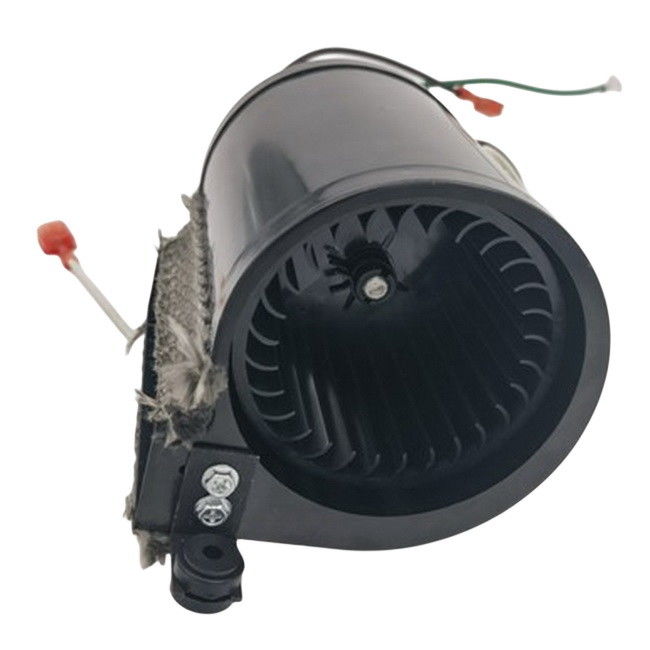

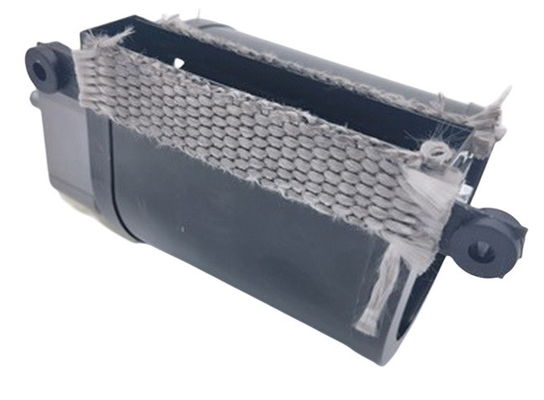

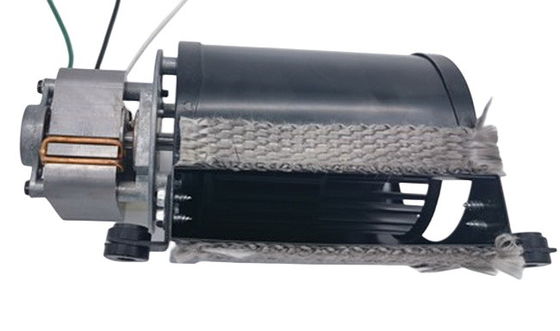

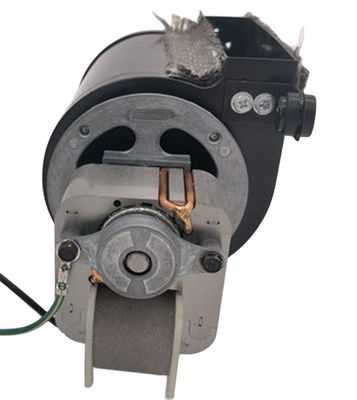

Quiet Convection Blower Motor AC 50W 115V High Temperature Right Side

Quiet Convection Blower Motor AC 50W 115V High Temperature  Right Side
Quiet Convection Blower Motor AC 50W 115V High Temperature  Right Side Quiet Convection Blower Motor AC 50W 115V High Temperature  Right Side Quiet Convection Blower Motor AC 50W 115V High Temperature  Right Side Quiet Convection Blower Motor AC 50W 115V High Temperature  Right Side

Large Image :  Quiet Convection Blower Motor AC 50W 115V High Temperature Right Side

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6029-29118
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

Quiet Convection Blower Motor AC 50W 115V High Temperature Right Side

Description
Product Name: AC 50W 115V Quiet Design High Temperature Convection Blower Motor -Right Side Motor Type: MH6029-29118
Rated Voltage/Frequency: 115V/60Hz Current(A): 0.81
Input Power(W): 50 Speed(RPM): 2800
Air Flow(CFM): 96 Bearing Type: NMB Ball Bearing
Insulation Class: H Protection Method: TP(THERMAL PROTECTOR)
Safe Certification: UL Wind Speed(m/s): 12
High Light: AC 51W, Higher Flowing Room Air Convection Blower Motor, Left Side Fireplace Blower Application: FIREPLACE
High Light:

Quiet Convection Blower Motor

,

Convection Blower Motor 50W 115V

,

High Temperature ac blower motor

AC 50W 115V Quiet design High Temperature Convection Blower Motor -Right Side



The 50W 115V blower motor designed to provide increased airflow, enhancing the convection circulation in the fireplace. It can be installed on the right side of the fireplace together to facilitate the transfer of hot air into the room. High temperature resistant insulation cotton around the air outlet . By increasing the airflow, this blower motor improves the heating effectiveness and overall comfort of the room.



Quick Review:



Product Name: AC 50W 115V Quiet Design High Temperature Convection Blower Motor -Right Side Motor Type: MH6029-29118
Rated Voltage/Frequency: 115V/60Hz Current(A): 0.81
Input Power(W): 50 Speed(RPM): 2800
Air Flow(CFM): 96 Bearing Type: NMB Ball Bearing
Insulation Class: H Protection Method: TP(THERMAL PROTECTOR)
Safe Certification: UL Wind Speed(m/s): 12
High Light: AC 51W, Higher Flowing Room Air Convection Blower Motor, Left Side Fireplace Blower Application: FIREPLACE



Quiet Convection Blower Motor AC 50W 115V High Temperature  Right Side 0

Production Description:



1. The blower is 100% ball bearing and uses a press fit and locked aluminum wheel to prevent melting, cracking and wheel separation.

2. Be powered by C-Frame shaded pole motor, high efficiency.

3. Superbly Balanced.

4. Long Lasting

5. 1/4 male terminal connectors.

6. Can be used with the right side blower together.

7. Independent mounting foot design with silicon gasket

8. Quiet design

9. High temperature resistant insulation cotton around the air outlet



Air Flow Curve:

Quiet Convection Blower Motor AC 50W 115V High Temperature  Right Side 1




A higher flowing blower,Heats large rooms effectively.





FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
