Product Details:
|
| Product Name: | AC Shade Pole Convection Right Side Fireplace Blower Motor Fan | Motor Type: | MH6029-29341 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current（A): | .65 |
| Input Power（W）: | 40 | Speed（RPM): | 2800 |
| Hi-Pot TEST: | 1500vac1mA,1S | Air Flow（CFM): | 85 |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Protection Method: | Z.P | Wind Speed(m/s): | 12 |
| Safe Certification: | UL | APPLICATION: | FIREPLACE |
| High Light: | 40W 0.65, AC Shade Pole, Convection Right Side Fireplace Blower ,40W UL | ||
| High Light: | Right Side Convection Blower Motor,fireplace Convection Blower Motor,40W 0.65 ac blower fan |
||

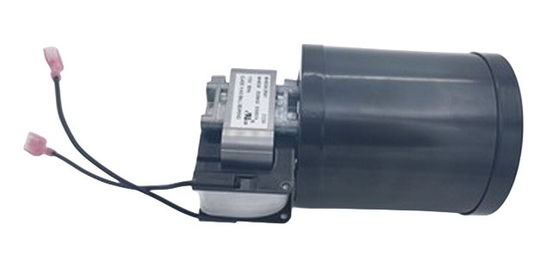

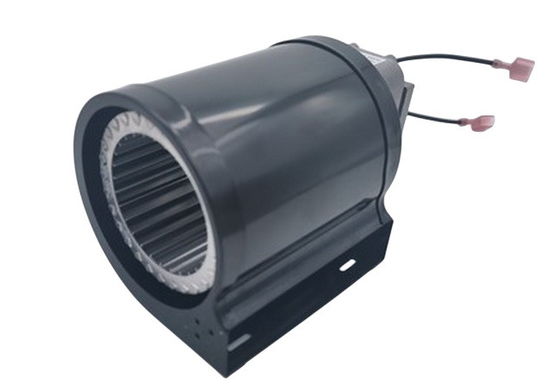

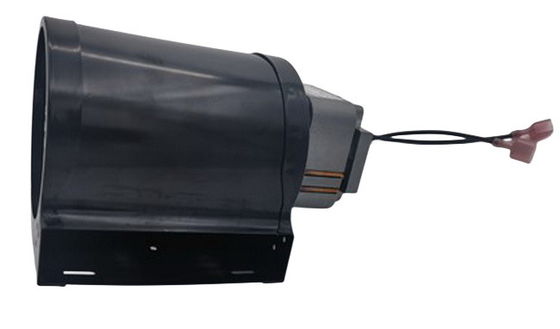

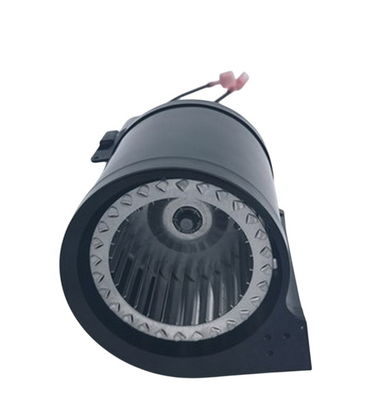

40W 0.65 AC Shade Pole Convection Right Side Fireplace Blower Motor Fan
This fan blower is specifically designed for use with fireplaces to enhance heat distribution and air circulation using convection principles. It intended to blow air from around the fireplace to improve heat distribution and air circulation. As a right-side fan, the airflow is directed towards the right side of the fan. Its purpose is to enhance the circulation of air and improve heat dispersion throughout the room.
Quick Review:
| Product Name: | AC Shade Pole Convection Right Side Fireplace Blower Motor Fan | Motor Type: | MH6029-29341 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current(A): | .65 |
| Input Power(W): | 40 | Speed(RPM): | 2800 |
| Hi-Pot TEST: | 1500vac1mA,1S | Air Flow(CFM): | 85 |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Protection Method: | Z.P | Wind Speed(m/s): | 12 |
| Safe Certification: | UL | APPLICATION: | FIREPLACE |
Production Advantage:
1. The blower is 100% ball bearing and uses a press fit and locked aluminum wheel to prevent melting, cracking and wheel separation.
2. Be powered by C-Frame shaded pole motor, high efficiency.
3. Superbly Balanced.
4. Long Lasting.
5. UL Certificated
6. 1/4 male terminal connectors.
7. Can be used with the left side blower together.
Air Flow Curve:
Main Application:
Fireplace
A higher flowing blower,Heats large rooms effectively.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
