AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

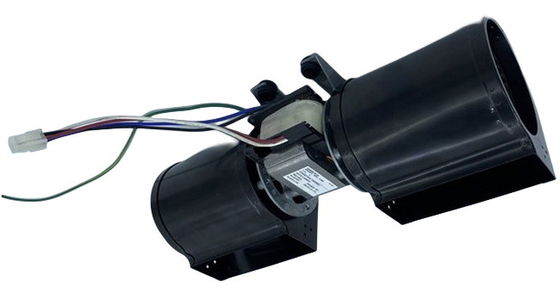

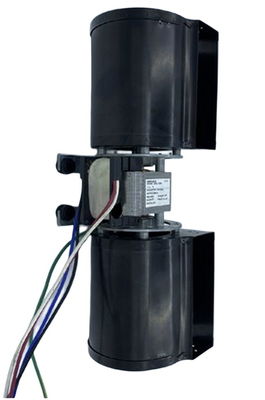

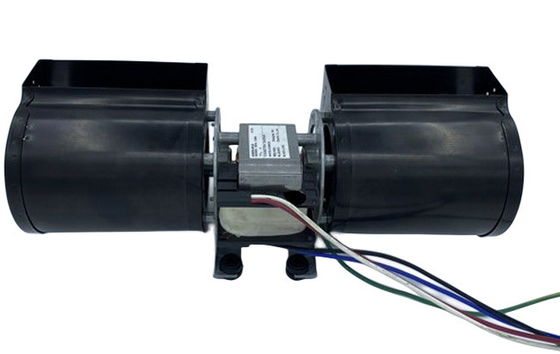

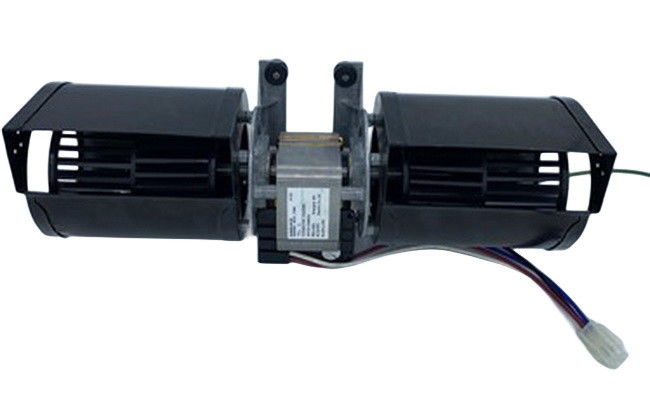

AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz

AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz

Large Image :  AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE /ETL/CCC
Model Number: MH6038-38125
Payment & Shipping Terms:
Minimum Order Quantity: 288PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1000PCS/day

AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz

Description
Product Name: AC Fireplace Convection Blower Motor Fan With 3-speed 4X4 Squirrel Cage Motor Type: MH6038-38125
Rated Voltage/Frequency: 230Vac/50Hz Current(A): H: 0.5 M: 0.4 L:0.3
Input Power(W): H: 60 M: 50 L:45 Speed(RPM): H: 2300 M:1800 L:1300
Air Flow(CFM): H: 176 M: 142 L: 88 Wind Speed(m/s)/s): H: 10 M: 8 L:5
Stator Vibration(cm/s): 0.25 Bearing Type: NMB Ball Bearing
Insulation Class: H Protection Method: TP(THERMAL PROTECTOR)
Safe Certification: ETL/CE/CCC High Light: Fireplace Onvectiob Blower Motor, 3-speed 4X4 Squirrel Cage Convecition Blower Motor
Hi-Pot TEST: 1800VAC,50Hz,3mA,1S
High Light:

AC Fireplace Convection Blower Motor

,

Convection Blower Motor 3 Speed

,

ac blower motor 50Hz

AC Fireplace Convection Blower Motor Fan with 3-speed 4X4 squirrel cage



The fan is equipped with a 4X4 squirrel cage design, which improves airflow efficiency and ensures even distribution of air. It is designed to operate quietly, minimizing noise disruptions during fireplace use.



Overall, the Blower Motor Fan with 3-speed and 4X4 squirrel cage is a reliable and efficient solution for enhancing fireplace convection and improving heat distribution. With its adjustable speed options and quiet performance, it offers flexibility and convenience for fireplace applications.



Quick Review:



Model Type:MH6038-38125

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 230Vac/50Hz Hi-Pot TEST 1800vac50hz,3Ma,1s
Current(A)

H:0.5

M:0.4

L:0.3

Bearing Type NMB Ball Bearing
Input Power(W)

H:60

M:50

L:45

Insulation Class H
Speed(RPM)

H:2300

M:1800

L:1300

Wind Speed (m/s) H: 10 M:8 L:5
Air Flow(CFM) H:176 Protection method TP(THERMAL PROTECTOR)

M:142

L:88

Stator Vibration(cm/s)

0.25



AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz 0



Production Description:



1. 4X4 squirrel cage blower

2. High temperature ball bearing construction

3. Isolation mounting to dampen noise and vibration

4. Quiet Better Design.

5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient

6. Superbly balanced.

7. Housings can painted

8. High temperature wheel

9. Premium Sealed ball bearing motor.


 Pakage style:





AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz 1AC Fireplace Convection Blower Motor Fan  3 Speed 4X4 Squirrel Cage 50Hz 2

FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
