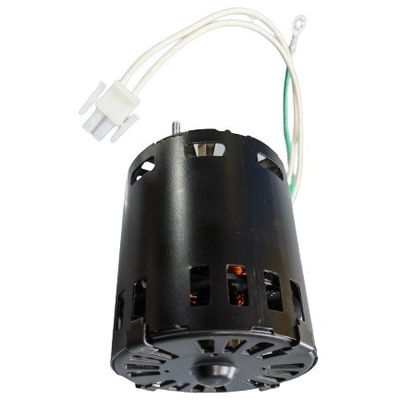

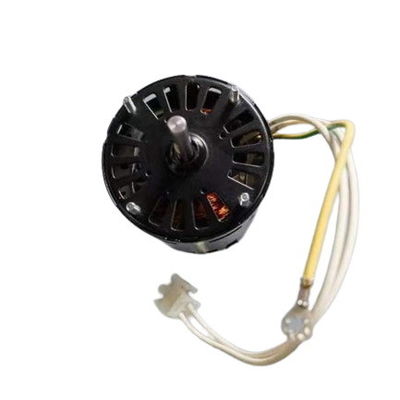

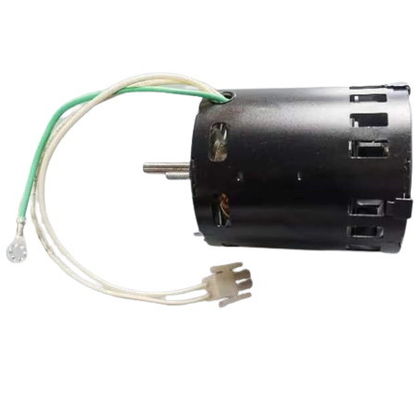

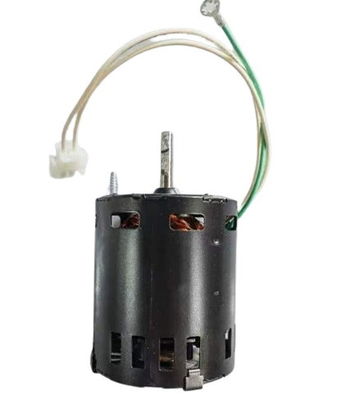

60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole 92W UL

60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL
60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL 60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL 60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL 60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL

Large Image :  60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole 92W UL

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH84-84564
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30-35 work days
Payment Terms: T/T
Supply Ability: 1000PCS/day

60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole 92W UL

Description
Product Name: China 3.3 Inch Dimension Frame AC Shade Pole Motor 3000rpm 92W UL Rated Voltage/Frequency: 115Vac/60Hz
Current(A): 1.42 Input Power(W): 92
Output Speed(RPM): 3000 Hi-Pot TEST: 1500vac50hz,1Ma,1s
Bearing Type: Ball Bearing Insulation Class: B
Agency: UL Application: Ventilating Fan
Protect Method: Thermal Protected Output Torque(IN.OZ): 9
High Light:: 3.3" Motor, Mini Fan Motor ODM Solutions:: Customized AC And EC Motors
High Light:

60Hz 3.3 Frame Motor

,

3.3 Frame Motor 2 pole

,

electric blower motor 92W

3.3" dia frame AC shade pole electric blower motor 2 pole 92W UL



Electric Blower Motor Shaded Pole Fan Motor 60Hz 2Pole For Gas Furnace And Other Ventilation equipment



MH brand Shaded pole 3.3-inch diameter HVAC AC motors have a low starting torque that provides a smooth and quiet start up while being more economical than other types of replacement motors used in blower applications such as bathroom fans and range hoods.





Technical Parameters:



Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM)

Max Torque

(Oz.in)

Max HP
Output
15.88(5/8) 110-120
220-240
50/60 3000 7 1/50
20.6(13/16) 3000 11 1/30
25.4(1) 3000 13 1/25
31.75(1 1/4) 3000 15 1/25
38.1(1 1/2) 3000 21 1/20
44.45(1 3/4) 3000 26 1/15
50.8(2) 3000 30 1/12



Ps: Listed are representative motors, only for reference,

Dimensions can be customized according to customer requirements.

60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL 0









Production Feature :



1. This product is a 2 pole motor with a diameter of 3.3 inches, made of high-quality electrical steel material.



2. Typically used in mechanical and fan blade applications.



3. Offered a variety of installation structures and connection options that can be selected according to customer needs.



4. We also provide various shaft sizes, ball bearings, and oil bearings as options.



5. This motor is made of high-strength steel housing and can be equipped with a non-hole or hole end cover, or an internal self-cooling fan.



6. Our motor has passed UL safety certification and is suitable for applications with larger starting loads, such as water pumps, strong ventilation fields, commercial kitchen equipment, and hot air circulation, etc.





Products advantage:



A.100% testing after each process and final testing before packing, all raw material is good quality. 100% cooper wire, Cold-rolled silicon steel sheet, good quaility shafts, bearings, stators, fan, fan covers etc.


B.High efficiency.


C. Low noise.



Prodcution Dimension Drawing

60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL 1







Test Date Performance Comparison





60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL 2





Company Service:



A.Our capacitor motor products are popular in domestic market, which enjoy good reputation for its high quality.
B.We are capable to develop new motor and produce it according to your requirement, please provide with your drawing & sample.
C.Our advantage: good quality, low price, prompt delivery, strong R&D ability.




Prodcution Package :



Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.





60Hz 3.3 Frame Motor AC Shade Pole Electric Blower Motor 2 Pole  92W UL 3



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
