Product Details:
|
| Product Name: | 60mmX180 AC Cross Flow Blowers Fan 20W 0.38A-Innovative Airflow System Design | Motor Type: | MH6013-13605 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120V 60Hz | Current（A): | 0.38 |
| Input Power（W）: | 20W | Speed（RPM): | 1500 |
| Hi-Pot TEST: | 1500V50Hz,3mA,1S | Bearing Type: | Sleeve Bearing |
| Insulation Class: | H | Start Voltage: | 81V 60Hz |
| Thermally Protected: | Z.P | Wind Speed(m/s): | 5.6 |
| Air Volume（CFM): | 79 | Application: | Pellet Stove ,oven |
| Agency: | ETL | VIBRATION TEST: | 0.2cm/S MAX AT CENTER OF HOUSING BACKSIDE |
| High Light: | 60mm X 180 cross blower,cross blower 20W,blower air flow 0.38A |
||

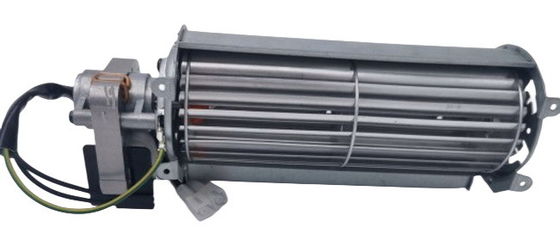

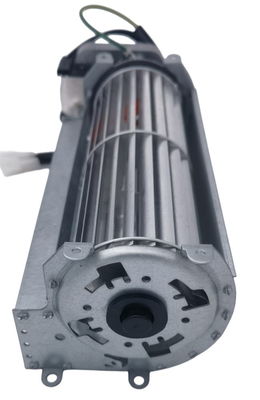

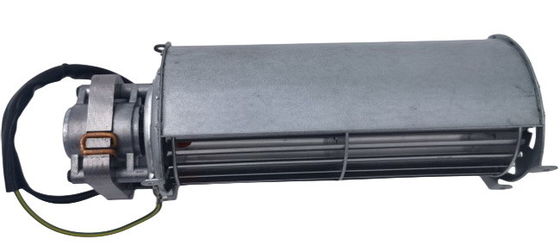

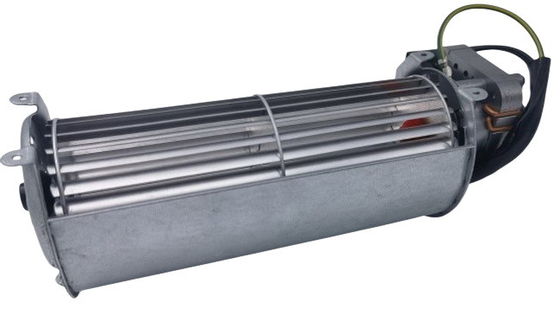

60mmX180 AC Cross flow Blowers Fan 20W 0.38A-Innovative Airflow System Design
This product is a 60mmX180mm AC cross flow blower fan features an innovative airflow system design aimed at providing efficient air power and uniform airflow. The design incorporates advanced fan blades and optimized airflow channels to ensure optimal airflow and noise reduction performance. Whether it is used in food equipment, electronic devices, or other applications requiring effective cooling and ventilation, this fan delivers excellent results.
Quick Review:
| Product Name: | 60mmX180 AC Cross Flow Blowers Fan 20W 0.38A-Innovative Airflow System Design | Motor Type: | MH6013-13605 |
|---|---|---|---|
| Rated Voltage/Frequency: | 120V 60Hz | Current(A): | 0.38 |
| Input Power(W): | 20W | Speed(RPM): | 1500 |
| Hi-Pot TEST: | 1500V50Hz,3mA,1S | Bearing Type: | Sleeve Bearing |
| Insulation Class: | H | Start Voltage: | 81V 60Hz |
| Thermally Protected: | Z.P | Wind Speed(m/s): | 5.6 |
| Air Volume(CFM): | 79 | Application: | Pellet Stove ,oven |
| Agency: | ETL | VIBRATION TEST: | 0.2cm/S MAX AT CENTER OF HOUSING BACKSIDE |
Production Feature :
1. 60mmX180mm impeller, high air volume, low noise.
2. Innovative airflow system design reduces overall system cost and simplifies the entire assembly.
3. Applied in various fields, including food heating and fireplaces.
4. Driven by a C-FRAME shaded pole motor.
5. The motor can be mounted in any of the four positions.
6. Optional ball bearings are available.
Air Flow Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
