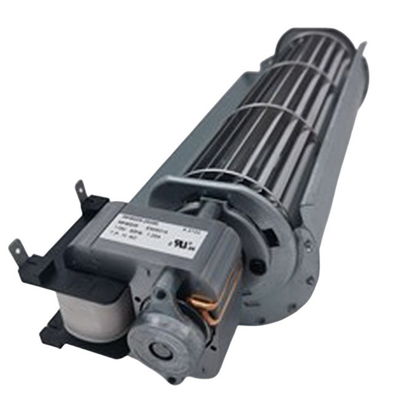

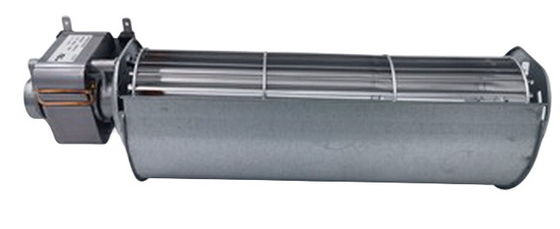

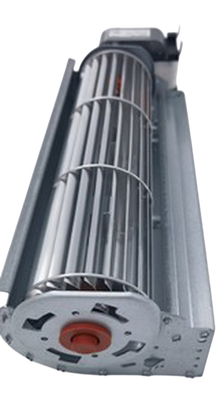

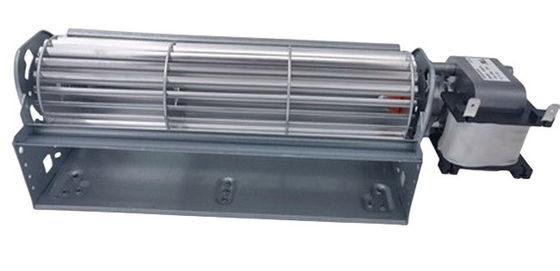

65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback

65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback
65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback 65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback 65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback 65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback

Large Image :  65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6029-29395
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1500PCS/day

65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback

Description
Product Name: 65mmX240 AC Cross Flow Blowers Fan 55W 0.88A With Hall Speed Feedback Motor Type: MH6029-29395
Rated Voltage/Frequency: 115V 60Hz Current(A): 0.88
Input Power(W): 55W Speed(RPM): 1350
Hi-Pot TEST: 1500V50Hz,1mA,1S Bearing Type: NMB Ball Bearing
Insulation Class: H Start Voltage: 71V 60Hz
Thermally Protected: T.P Wind Speed(m/s): 6
Air Volume(CFM): 138 Application: KITCHEN EQUIPMENT,PELLET STOVE
Agency: UL Feature: With Hall Speed Feedback
High Light:

65mmX 240 cross flow blower

,

cross flow blower 55W

,

0.88A air blower motor

65mmX240 AC Cross flow Blowers Fan 55W 0.88A with Hall speed feedback



The blower is a high air volume, wide air delivery AC cross flow blower fan with dimensions of 65mm x 240mm. This design is to be provided a high volume of air, making it suitable for applications that require strong airflow for effective air circulation and cooling.It also offers a wide air delivery range. Also equipped with Hall speed feedback technology. This feedback mechanism utilizes Hall effect sensors to measure the speed of the fan's rotation. It provides feedback to the control system, allowing for precise speed control and monitoring.



Quick Review:

Product Name: 65mmX240 AC Cross Flow Blowers Fan 55W 0.88A With Hall Speed Feedback Motor Type: MH6029-29395
Rated Voltage/Frequency: 115V 60Hz Current(A): 0.88
Input Power(W): 55W Speed(RPM): 1350
Hi-Pot TEST: 1500V50Hz,1mA,1S Bearing Type: NMB Ball Bearing
Insulation Class: H Start Voltage: 71V 60Hz
Thermally Protected: T.P Wind Speed(m/s): 6
Air Volume(CFM): 138 Application: KITCHEN EQUIPMENT,PELLET STOVE
Agency: UL Feature: With Hall Speed Feedback



Production Feature :



1. 65mmX240mm impeller provides high airflow and low noise.

2. Equipped with Hall speed feedback and finds applications in various fields, including food heating and fireplaces.

3. Driven by a C-FRAME shaded pole motor.

4. The motor can be mounted in any of the four positions.

5. The fan features a ball bearing structure, making it suitable for high-temperature environments and ensuring a long lifespan



65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback 0

Air Flow Curve:

65mmX240 AC Cross Flow Blower Air Blower Motor Fan 55W 0.88A With Hall Speed Feedback 1



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
