Product Details:
|
Product Name: | 45mmX300 AC Cross Flow Blowers Fan 37W 0.56A-Innovative Airflow System Design | Motor Type: | MH6029-29607 |
---|---|---|---|
Rated Voltage/Frequency: | 120V 60Hz | Current(A): | 0.56 |
Input Power(W): | 37W | Speed(RPM): | 1590 |
Hi-Pot TEST: | 1500V50Hz,1mA,1S | Bearing Type: | Ball Bearing |
Insulation Class: | H | Start Voltage: | 81V 60Hz |
Thermally Protected: | TP | Wind Speed(m/s): | 6 |
Air Volume(CFM): | 130 | Agency: | ETL |
Application: | Pellet Stove ,oven | Feature: | Innovative Airflow System Design |
High Light: | 45mm X 300 Cross Flow Blower Fan,AC Cross Flow Blower Fan,0.56A air flow blower |

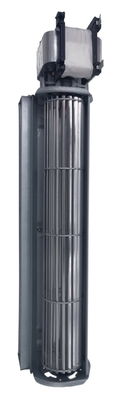

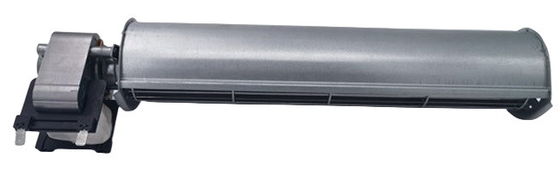

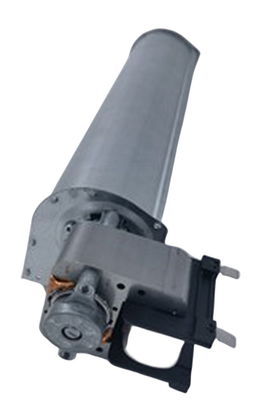

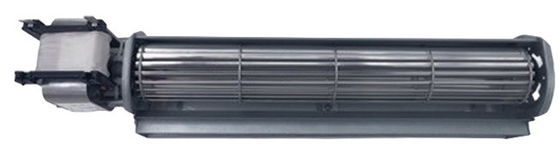

45mmX300 AC Cross flow Blowers Fan 37W 0.56A - Innovative Airflow System Design
Production Description:
1. 60mmX300 mm impeller, high air volume, low noise.
2. Innovative airflow system design reduces overall system cost and simplifies the entire assembly.
3. Applied in various fields, including food heating and fireplaces.
4. Driven by a C-FRAME shaded pole motor.
5. The motor can be mounted in any of the four positions.
6. Optional ball bearings are available application in the high temperature environments.
Quick Review:
Product Name: | 45mmX300 AC Cross Flow Blowers Fan 37W 0.56A-Innovative Airflow System Design | Motor Type: | MH6029-29607 |
---|---|---|---|
Rated Voltage/Frequency: | 120V 60Hz | Current(A): | 0.56 |
Input Power(W): | 37W | Speed(RPM): | 1590 |
Hi-Pot TEST: | 1500V50Hz,1mA,1S | Bearing Type: | Ball Bearing |
Insulation Class: | H | Start Voltage: | 81V 60Hz |
Thermally Protected: | TP | Wind Speed(m/s): | 6 |
Air Volume(CFM): | 130 | Agency: | ETL |
Application: | Pellet Stove ,oven | Feature: | Innovative Airflow System Design |
Air Flow Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
