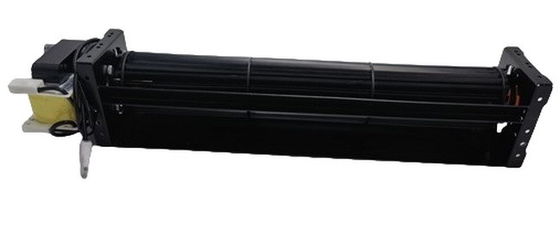

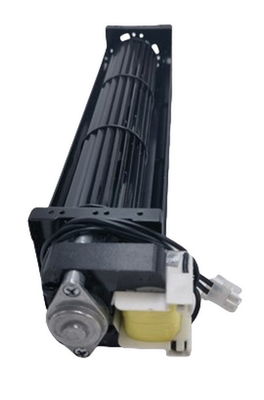

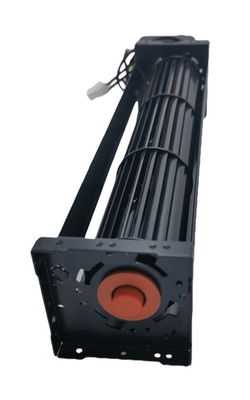

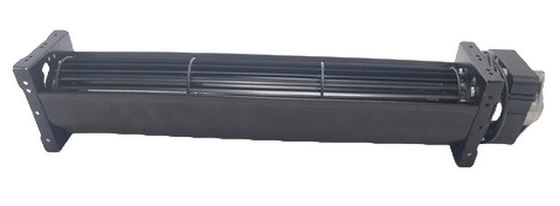

Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven

Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven
Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven

Large Image :  Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: CE/UL
Model Number: MH4816-16056
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 2000PCS/day

Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven

Description
Product Name: Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven Motor Type: MH4816-16056
Rated Voltage/Frequency: 120V 60Hz Current(A): 0.2
Input Power(W): 15W Speed(RPM): 1700
Hi-Pot TEST: 1500vac50hz,1Ma,1s Bearing Type: Sleeve Bearing
Insulation Class: B Thermally Protected: TP
Wind Spee(m/s): 3.2 Air VolumeCFM): 62
Application: Electrical Stove Agency: CE/ETL
High Light:

Electrical Oven Cross Flow Fan

,

120V Cross Flow Fan

,

260mm Cross Flow Fan

Tangential Blower Cross Flow Fan Black electrophoresis 120V 60HZ 260mm For electrical oven

The  Tangential Blower cross blower fan provides a high airflow rate, delivers efficient air delivery with wide air supply, high air volume delivery.

The cross flow fan/tangential fan is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction.  The whole Tangential Blower cross blower fan is treated with electrophoretic paint, which has better anti-rust effect and more beautiful appearance

Quick Review:

Product Name:Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical OvenMotor Type:MH4816-16056
Rated Voltage/Frequency:120V 60HzCurrent(A):0.2
Input Power(W):15WSpeed(RPM):1700
Hi-Pot TEST:1500vac50hz,1Ma,1sBearing Type:Sleeve Bearing
Insulation Class:BThermally Protected:TP
Wind Spee(m/s):3.2Air VolumeCFM):62
Application:Electrical StoveAgency:CE/ETL
High Light:Tangential Blower, Cross Flow Fan, Black Electrophoresis, 120V 60HZ 260mm For Electrical Oven







Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven 0




FEATURE:

Mature and Reliable Shaded Pole Motor Technology Low Noise, Wide Area Air Supply, High Airflow Thermal Protector Protection Method Multiple Mounting Positions for Easy Installation Typically Used in Laboratory Equipment, Pellet Stoves, Electric Heaters, and More,The whole Tangential Blower cross blower fan is treated with electrophoretic paint, which has better anti-rust effect and more beautiful appearance
 Tangential Blower Cross Flow Fan Black Electrophoresis 120V 60HZ 260mm For Electrical Oven 1






FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
