24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
Customer Reviews
For many years we are buying blower fans with MH motor. We are happy to work with them.

—— Roymond

We trust a lot in MH motor! Their motors is the best replacement from FASCO option for us in the market.

—— Edmund Anjum

MH motor is very reliable at product quality and lead time. We have worked with them for 7 years.

—— Abdul Hameed

Motors are running good for my customers' equipment, Very happy to cooperate with MHmotors

—— Roxy Gutierrez

I'm Online Chat Now

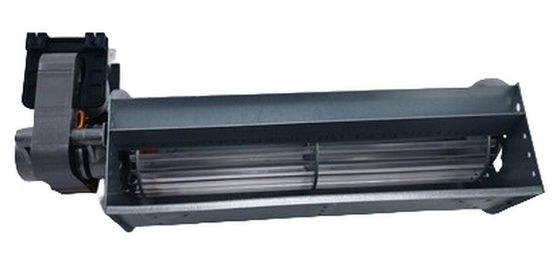

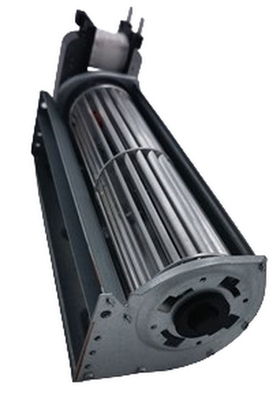

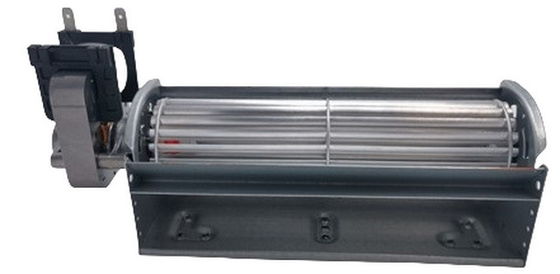

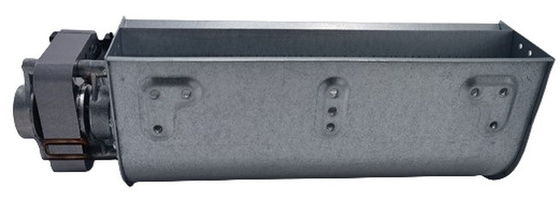

24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM

24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM
24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM 24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM 24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM 24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM

Large Image :  24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6016-16054
Payment & Shipping Terms:
Minimum Order Quantity: 420PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM

Description
Product Name: 24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM Rated Voltage/Frequency: 120V60Hz
Current(A): 0.36 Input Power(W): 24W
Motor Type: AC Shade Pole Motors Speed(RPM): 1700
Hi-Pot TEST: 1500vac50hz,3Ma,1s Bearing Type: Ball Bearing
Insulation Class: H Agency: ETL
Thermally Protected: Z.P Wind Speed(m/s): 6.6
Air Volume(CFM): 84 Application: Pellet Stove,oven
High Light:

0.36A Cross Flow Blower Fan

,

24W Cross Flow Blower Fan

,

1700RPM Cross Flow Blower Fan

China 24W 0.36A AC Cross flow Blowers Fan with C frame shade pole



The cross flow blower fan has a power input of 24watts and operates at a current of 0.36A, providing sufficient airflow for its intended applications.The fan is equipped with a C frame shade pole motor, known for its reliability and durability. This type of motor provides consistent and stable performance which allows for a wider and more uniform distribution of airflow. It is suitable for applications that require a continuous and even stream of air.



Quick Review:


Model Type:MH6016-16054

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 120Vac/60Hz Hi-Pot TEST 1500vac50hz,1Ma,1s
Current(A) 0.36 Bearing Type Ball Bearing
Input Power(W) 24 Insulation Class H (Thermally Protected)
Speed(RPM) 1700 Agency Certification ETL
Wind Speed(m/s) 6.6 Air Volume(CFM) 84
Feature with Cframe shade pole motor  Application  Pellet Stove/stove



24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM 0









Production Feature :
Mature and reliable Shaoji motor technology

Low noise, large area air delivery, high air volume

Thermal protector protection method

High-temperature resistant NMB ball bearings

Multiple installation position designs, easy to install

Typically used in laboratory equipment, pellet stoves, electric heaters, etc.

AIR FLOW  CURVE



24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM 1



Package info:



24W 0.36A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 1700RPM 2











Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.

The MH crossflow blower makes the air in the box evenly distributed in every corner.

Welcome your business chat and visit.

FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
