Product Details:
|
| MH MODEL: | MH6029-29670 | Product Name: | 52W .82A 120V 60Hz Convection Pellet Stove Blower Motor Fan Air Blower UL/ETL |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current（A): | .82 |
| Input Power（W）: | 52W | Speed（RPM): | 3100 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL/ETL |
| Thermally Protected: | TP | Wind Speed(m/s): | 15 |
| Air Volume（CFM): | 85 | Application: | Pellet Stove;fireplace |
| High Light: | 52W Fan Air Blower,120V Fan Air Blower,60Hz Fan Air Blower |
||

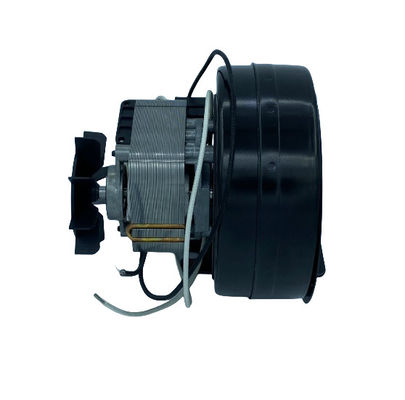

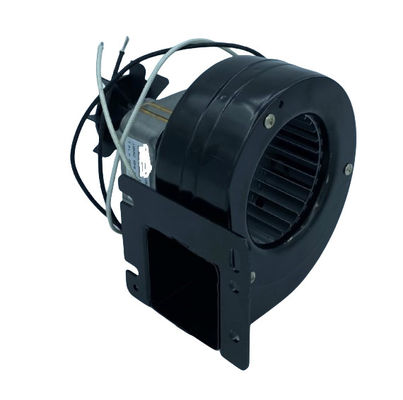

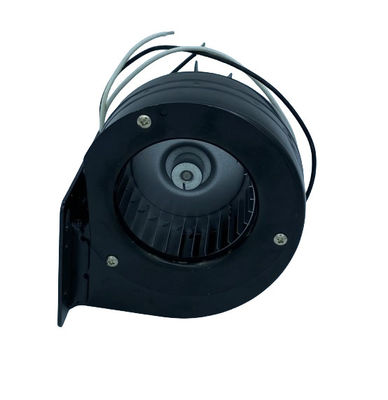

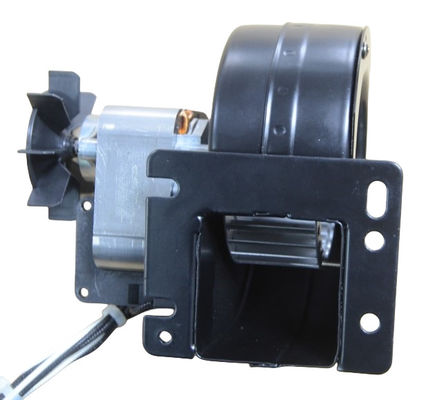

52W .82A 120V 60Hz Convection Pellet Stove Blower Motor Fan Air Blower UL/ETL
This blower fan has a power input of 52W and operates at a current of .82A, providing sufficient airflow for effective convection in pellet stoves.
The Pellet Stove Convection Fan is specifically designed to enhance the convection process in pellet stoves. It helps to distribute the heated air throughout the room, improving heat distribution and overall comfort.
That is a reliable and efficient solution for enhancing the convection process in pellet stoves. It helps to distribute warm air throughout the room, improving heat distribution and providing a comfortable living environment. With its UL certification and reliable performance, it ensures safe and efficient operation.
Quick Detail:
| MH MODEL: | MH6029-29670 | Product Name: | 52W .82A 120V 60Hz Convection Pellet Stove Blower Motor Fan Air Blower UL/ETL |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current(A): | .82 |
| Input Power(W): | 52W | Speed(RPM): | 3100 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL/ETL |
| Thermally Protected: | TP | Wind Speed(m/s): | 15 |
| Air Volume(CFM): | 85 | Application: | Pellet Stove;fireplace |
CFM Curve:
Performance Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
