AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting

AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting
AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting

Large Image :  AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH6016-16295
Payment & Shipping Terms:
Minimum Order Quantity: 720PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work day
Payment Terms: T/T
Supply Ability: 3000pcs/day

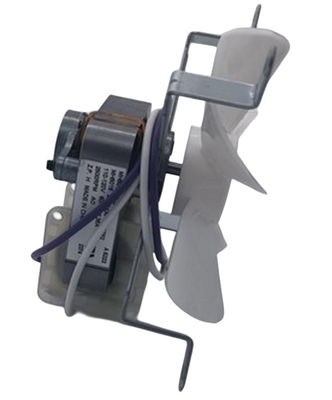

AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting

Description
Product Name: AC Pellet Grill 25W 0.4A Special Mounting Design Convection Fan Motor Blower MH MODEL: MH6016-16295
Rated Voltage/Frequency: 115V60Hz Current(A): 0.4
Input Power(W): 25W Speed(RPM): 3100
Hi-Pot TEST: 1500V50Hz,3mA,1S Bearing Type: Sleeve Bearing
Insulation Class: H Agency: UL
Thermally Protected: ZP Application: STOVE, PELLET STOVE,
High Light:

Convection Blower Fan 25W

,

AC Pellet Grill Convection Blower Fan

,

blower motor replacement 0.4A





AC Pellet Grill 25W 0.4A Special mounting design Convection Fan Motor Blower



Convection Fan Motor Blower is an important component that contributes to the overall functionality and performance of the pellet grill. It helps maintain consistent temperatures, improves heat distribution, and ensures efficient cooking results. The motor is designed to be highly efficient, high air volumn which means it maximizes the conversion of electrical energy into mechanical energy for optimal performance. This fan motor blower is designed with a special mounting mechanism.



Quick Review:

Product Name: AC Pellet Grill 25W 0.4A Special mounting design Convection Fan Motor Blower MH MODEL: MH6016-16295
Rated Voltage/Frequency: 115V60Hz Current(A): 0.4
Input Power(W): 25W Speed(RPM): 3100
Hi-Pot TEST: 1500V50Hz,3mA,1S Bearing Type: Sleeve Bearing
Insulation Class: H Agency: UL
Thermally Protected: ZP Application: STOVE, PELLET STOVE,

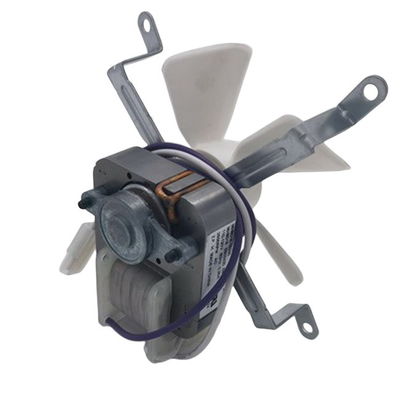

AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting 0
Production Features:



Be powered by C-frame shaded pole motor, high efficiency

Quiet construction design.

Special mounting design

Fan material: PA66+30%GF

Improves grill efficiency




High airflow, high-efficiency blower, typically used for pellet grills

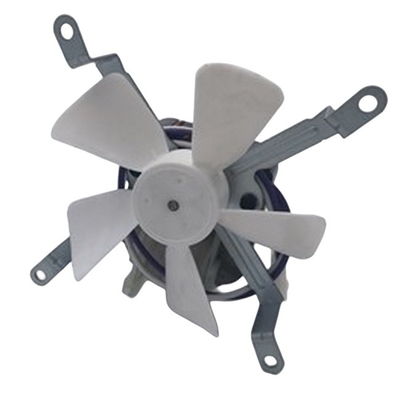

AC Pellet Grill Convection Blower Fan Motor Replacement 25W 0.4A Special Mounting 1

FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
