Product Details:
|
| Product Name: | 56.7W 0.75A Convection Fan Motor Blower For High Temperature Oven | MH MODEL: | MH84-84616 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V60Hz | Current（A): | 0.75 |
| Input Power（W）: | 56.7 | Speed（RPM): | 3010 |
| Hi-Pot TEST: | 1500vac50Hz,1mA,1S | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 15 |
| Air Volume（CFM): | 80 | Application: | High Temperature Oven /Insulated Cabinet |
| High Light: | 56.7W convection blower,0.75A convection blower,blower motor fan replacement for Oven |
||

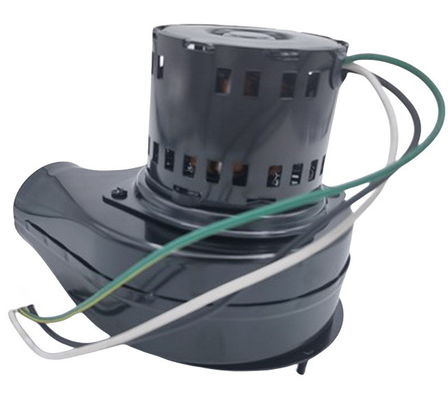

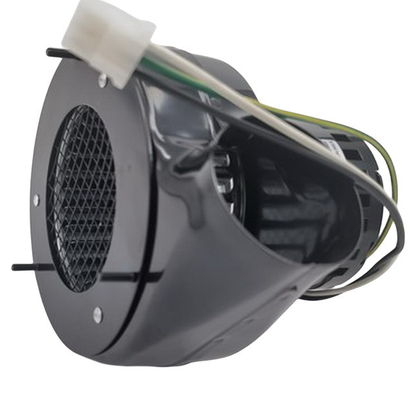

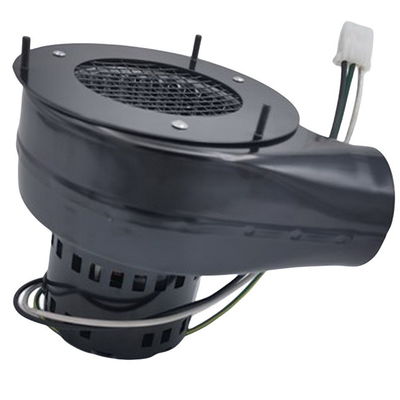

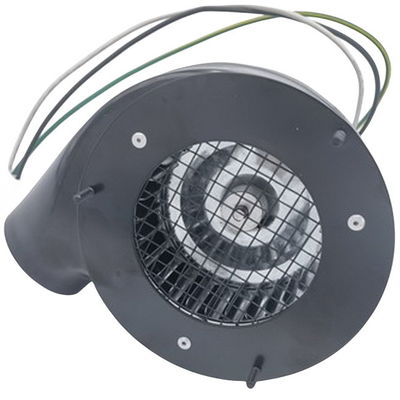

56.7W 0.75A Convection Fan Motor Blower for High Temperature Oven
This fan blower motor is designed for use in high-temperature ovens where it functions as a convection fan motor blower. It helps to circulate hot air within the oven, ensuring even heat distribution for efficient cooking or baking. It is designed to withstand the high temperatures generated within the oven during operation, ensuring its durability and longevity.
Quick Review:
| MH MODEL: | MH84-84616 | Product Name: | 56.7W 0.75A Convection Fan Motor Blower for High Temperature Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V60Hz | Current(A): | 0.75 |
| Input Power(W): | 56.7W | Speed(RPM): | 3010 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 15 |
| Air Volume(CFM): | 80 | Application: | High temperature oven /Insulated Cabinet |
Production Features:
1.Mature and reliable shaded pole motor technology.
2. Large air volume centrifugal impeller.
3.Thermal protection mechanism.
4. High-temperature resistant ball bearings.
5. Protective design with inlet grille.
6. Typically used in high-temperature ovens and insulated food cart equipment.
Air Flow Curve:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team. We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
