Product Details:
|
| Product Name: | 51W 0.7A Convection Fan Motor Blower For High Temperature Oven With 3.3" Motor | MH MODEL: | MH84-84617 |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V60Hz | Current（A): | 0.70 |
| Input Power（W）: | 51 | Speed（RPM): | 3040 |
| Hi-Pot TEST: | 1500vac50Hz,1mA,1S | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 14.5 |
| Air Volume（CFM): | 73 | Application: | High Temperature Oven /Insulated Cabinet |
| High Light: | 51W Convection Blower Fan,0.7A Convection Blower Fan,Convection Blower Motor 3.3" |
||

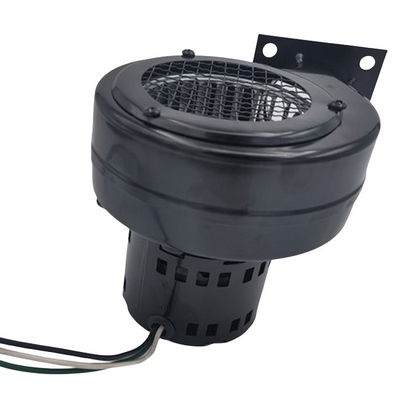

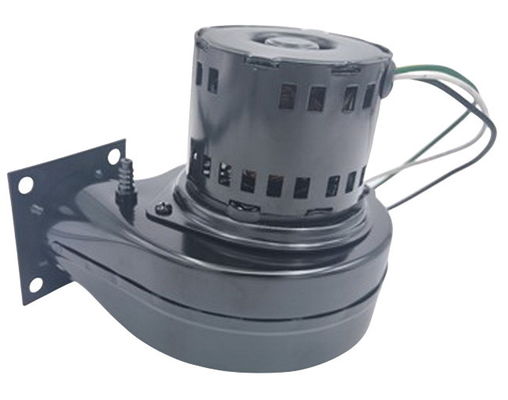

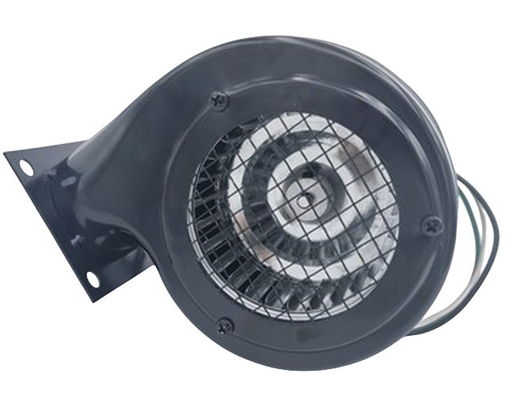

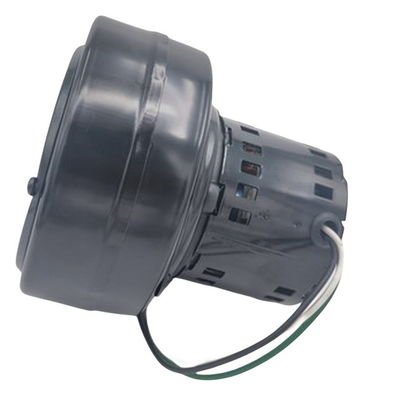

51W 0.7A Convection Fan Motor Blower for High Temperature Oven with 3.3" motor
This fan blower motor is designed for use in high-temperature ovens where it functions as a convection fan motor blower. It helps to circulate hot air within the oven, ensuring even heat distribution for efficient cooking or baking. It is designed to withstand the high temperatures generated within the oven during operation, ensuring its durability and longevity.
Quick Review:
| MH MODEL: | MH84-84617 | Product Name: | 51W 0.7A Convection Fan Motor Blower for High Temperature Oven with 3.3" motor |
|---|---|---|---|
| Rated Voltage/Frequency: | 115V60Hz | Current(A): | 0.7 |
| Input Power(W): | 51W | Speed(RPM): | 3040 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 14.5 |
| Air Volume(CFM): | 73 | Application: | High temperature oven /Insulated Cabinet |
Production Features:
• High-efficiency 3.3-inch motor technology
• Large airflow centrifugal impeller
• Thermal protection method with a thermal protector
• High-temperature resistant ball bearings
• Inlet with protective wire mesh design
• Typically used in high-temperature ovens and insulated meal cart equipment
• Flange design for outlet installation, meeting customer installation requirements.
Air Flow Curve:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team. We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
