Product Details:
|
| MH MODEL: | MH6025-25652 | Product Name: | Pellet Stove Exhaust Convection Fan UL Agency High Air Volumn 38W 120V 60Hz |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current（A): | 0.64 |
| Input Power（W）: | 38W | Speed（RPM): | 3000 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 10 |
| Application: | Wooden Stove; Pellet Stove | ||
| High Light: | 115V Exhaust Convection Fan,UL Agency Exhaust Convection Fan,38W Exhaust Convection Fan |
||

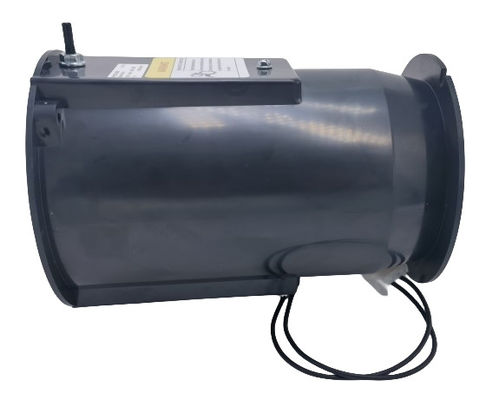

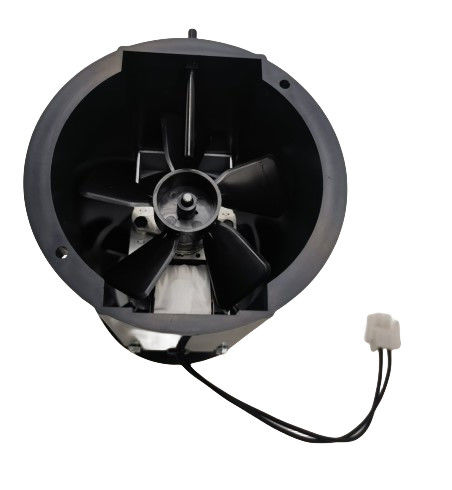

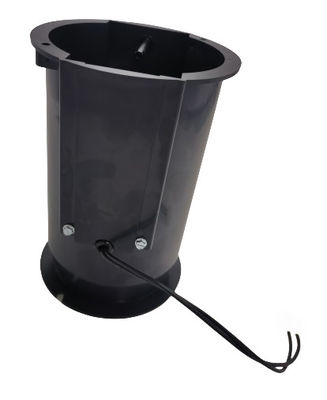

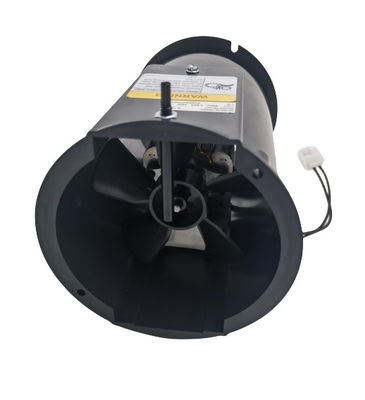

Pellet Stove Exhaust Convection Fan UL Agency High Air Volumn 38W 120V 60Hz
This is a 38W, 120V Pellet Stove Convection Fan Distribution Room Air Blower motor. It is usually installed at the bottom of a pellet fuel stove and can distribute hot air evenly into the room by forced convection in order to increasing combustion efficiency and indoor temperature.
The motor adopts high-quality materials and design, with features such as high efficiency, reliability, and low noise, and can operate stably in high-temperature environments for long periods of time. In addition, the motor has the advantages of easy installation and maintenance, making it an ideal choice for pellet stove convection.
Quick Detail:
| MH MODEL: | MH6025-25652 | Product Name: | 38W 120V 60Hz Convection Fan Pellet Stove Exhaust Motor UL Agency |
|---|---|---|---|
| Rated Voltage/Frequency: | 120Vac/60Hz | Current(A): | 0.64 |
| Input Power(W): | 38W | Speed(RPM): | 3000 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
| Insulation Class: | H | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 10 |
Production Features:
Be powered by C-frame shaded pole motor, large torque, high efficiency and large volume.
Quiet motor design.
Thermally Protected Ball Bearing Design.
Complete assembly with housing
.
Air Flow Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
