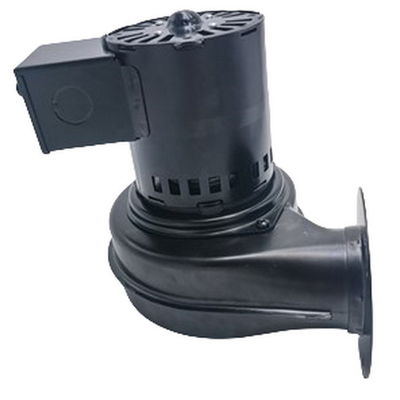

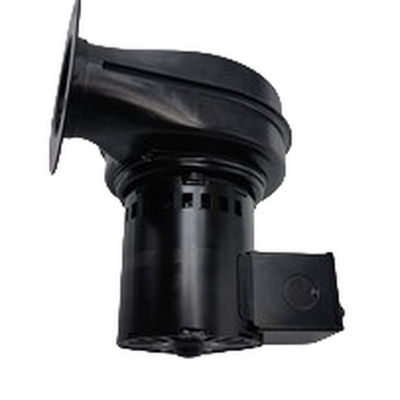

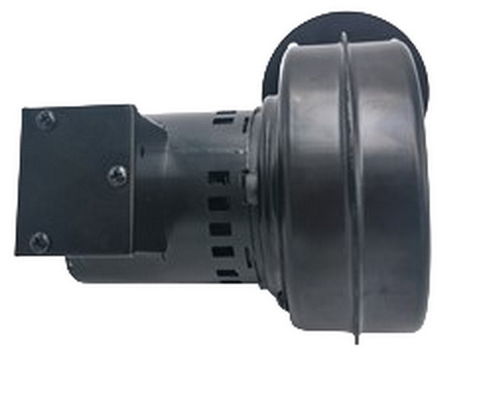

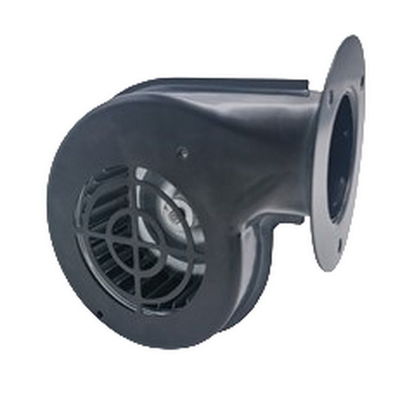

73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor

73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor
73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor 73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor 73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor 73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor

Large Image :  73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: UL
Model Number: MH8402-0039
Payment & Shipping Terms:
Minimum Order Quantity: 360PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work day
Payment Terms: T/T
Supply Ability: 1200pcs/day

73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor

Description
Product Name: 73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor MH MODEL: MH8402-0039
Rated Voltage/Frequency: 115V60Hz Current(A): 0.91
Input Power(W): 73 Speed(RPM): 2660
Hi-Pot TEST: 1500vac50Hz,1mA,1S Bearing Type: Ball Bearing
Insulation Class: H Agency: UL
Thermally Protected: TP Wind Speed(m/s): 13
Air Volume(CFM): 74 Application: Pellet Stove, OVEN
High Light:

0.91A Convection Blower Fan

,

3.3" Motor Convection Blower Fan

,

73W Convection Blower Fan

73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor



This fan blower motor is designed for use in high-temperature ovens where it functions as a convection fan motor blower. It helps to circulate hot air within the oven, ensuring even heat distribution for efficient cooking or baking. It is designed to withstand the high temperatures generated within the oven during operation, ensuring its durability and longevity.



Quick Review:



Product Name: 73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor MH MODEL: MH8402-0039
Rated Voltage/Frequency: 115V60Hz Current(A): 0.91
Input Power(W): 73 Speed(RPM): 2660
Hi-Pot TEST: 1500vac50Hz,1mA,1S Bearing Type: Ball Bearing
Insulation Class: H Agency: UL
Thermally Protected: TP Wind Speed(m/s): 13
Air Volume(CFM): 74 Application: Pellet Stove, OVEN





Production Features:

• Mature and reliable brushless motor technology

• Utilizes an efficient 3.3-inch motor drive

• Large airflow centrifugal impeller

• Thermal protection mechanism

• High-temperature-resistant NMB ball bearings

• Inlet protection grille design

• Outlet flange design for customer installation and maintenance requirements



Air Flow Curve:

73W 0.91A Convection Blower Fan Motor For High Air Volumn Oven 3.3" Motor 0





Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team. We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
