48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM

48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM
48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM 48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM 48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM 48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM

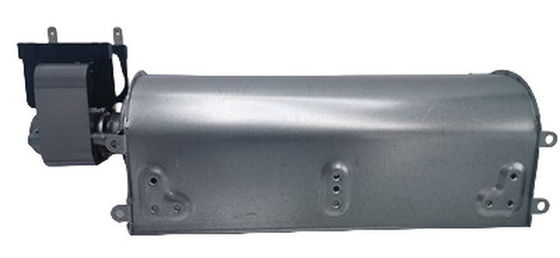

Large Image :  48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6029-29647
Payment & Shipping Terms:
Minimum Order Quantity: 420PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1200PCS/day

48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM

Description
Product Name: 48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM Rated Voltage/Frequency: 100-110V60Hz
Current(A): 0.82 Input Power(W): 48W
Motor Type: AC Shade Pole Motors Speed(RPM): 2700
Hi-Pot TEST: 1500vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Agency: ETL
Thermally Protected: Z.P Wind Speed(m/s): 7.8
Air Volume(CFM): 130 Application: Pellet Stove,oven
High Light:

2700RPM Cross Flow Blower Fan

,

C Frame Cross Flow Blower Fan

,

0.82A Cross Flow Blower Fan

China 48W 0.82A AC Cross flow Blowers Fan with C frame shade pole UL agency



The cross flow blower fan has a power input of 48 watts and operates at a current of 0.82A, providing sufficient airflow for its intended applications.The fan is equipped with a C frame shade pole motor, known for its reliability and durability. This type of motor provides consistent and stable performance which allows for a wider and more uniform distribution of airflow. It is suitable for applications that require a continuous and even stream of air.



Quick Review:


Model Type:MH6029-29647

Motor Type:AC Shade Pole Motor

Rated Voltage/Frequency 100-110Vac/60Hz Hi-Pot TEST 1500vac50hz,1Ma,1s
Current(A) 0.82 Bearing Type NMB Ball Bearing
Input Power(W) 48 Insulation Class H (Thermally Protected)
Speed(RPM) 2700 Agency Certification ETL
Wind Speed(m/s) 7.8 Air Volume(CFM) 130
Feature with Cframe shade pole motor  Application  Pellet Stove/stove

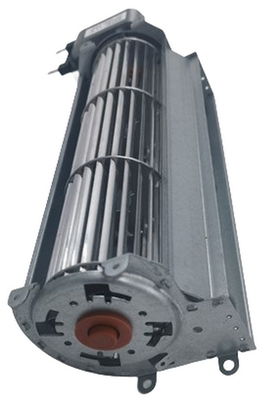

48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM 0

Production Feature :
1.  60mm x 240mm diameter impeller with high air volume and low noise.

2. Innovative air flow system design reduces overall system costs and simplifies the entire structure.

3. Driven by a C-FRAME shaded pole motor.

4. Ball bearing structure suitable for high-temperature environments, ensuring a long lifespan.



AIR FLOW  CURVE

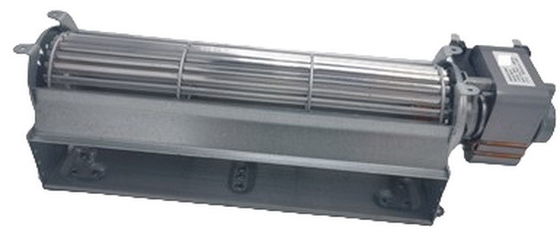

 48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM 1

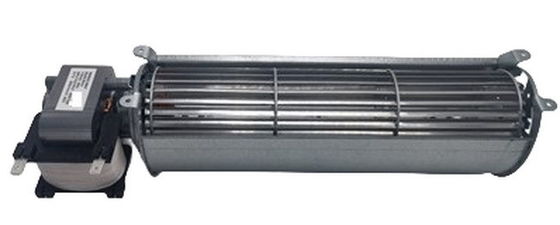

48W 0.82A Cross Flow Blower Fan C Frame Shaded Pole Fan Motor 2700RPM 2



Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.

The MH crossflow blower makes the air in the box evenly distributed in every corner.

Welcome your business chat and visit.

FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
