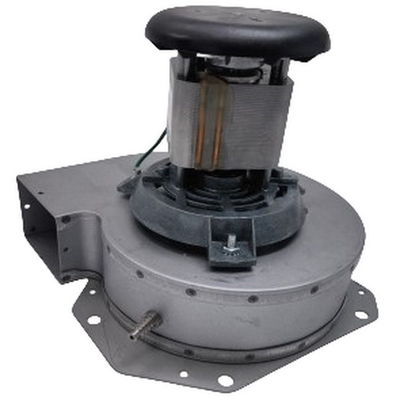

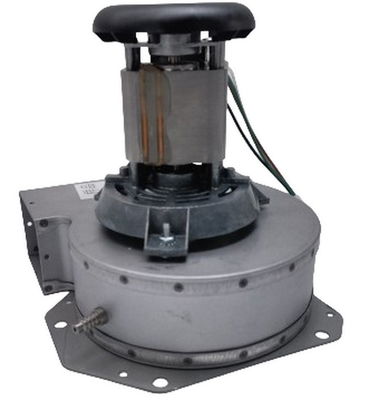

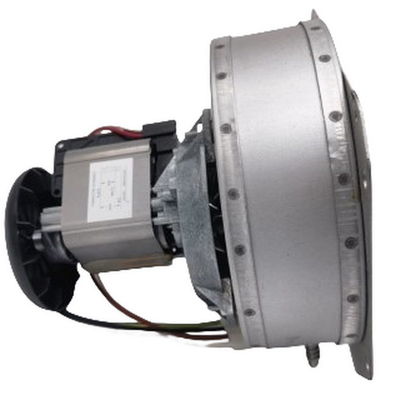

165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace

165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace
165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace

Large Image :  165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL
Model Number: MH6051-51001
Payment & Shipping Terms:
Minimum Order Quantity: 320PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 35 work day
Payment Terms: T/T
Supply Ability: 1000pcs/day

165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace

Description
MH MODEL: MH6051-51001 Product Name: 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace
Rated Voltage/Frequency: 120V60Hz/240V60HZ Current(A): 2.24A/1.19A
Input Power(W): 165/151W Speed(RPM): 2900
Hi-Pot TEST: 1800vac50Hz,3mA,1S Bearing Type: NMB BALL BEARING
Insulation Class: H Agency: ETL
Thermally Protected: TP Wind Speed(m/s): 25
Application: Pellet Stove/stove/gas Stove
High Light:

Dual Voltage Convection Blower Fan

,

convection fan for pellet stove

,

151 W convection fan for fireplace

165/151W Convection Blower Fan Dual Voltage for Pellet Stove or fireplace



The motor blower has a power output of 165/151 watts and operates on a voltage of Dual voltage  suitable for standard power supply. This motor blower is designed to be highly efficient, providing effective convection air movement within the pellet stove for improved heat distribution. As well high-quality materials and is designed to provide reliable performance, ensuring long-lasting and efficient operation. Easy installation in pellet stoves, allowing for convenient retrofitting or replacement of existing blowers.



Quick Review:



MH MODEL: MH6051-51001 Product Name: 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace
Rated Voltage/Frequency: 120V60Hz/240V60HZ Current(A): 2.24A/1.19A
Input Power(W): 165/151W Speed(RPM): 2900
Hi-Pot TEST: 1800vac50Hz,3mA,1S Bearing Type: NMB BALL BEARING
Insulation Class: H Agency: ETL
Thermally Protected: TP Wind Speed(m/s): 25
Application: Pellet Stove/stove/gas Stove
High Light: 165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace





165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace 0

Production Features:

1. 2.38 "high efficiency electrical steel C-FRAME motor

2. Self-cooling fan design, prolong the motor service life.

3. 2-inch laminated silicon steel sheet design, high power

4. Volute with static pressure nozzle design, to meet the different needs of customers

5. Large air volume, unique baffle design of air inlet



Air Flow Curve:

165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace 1165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace 2



Main Application:

165/151W Convection Blower Fan Dual Voltage For Pellet Stove Or Fireplace 3





FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
