Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

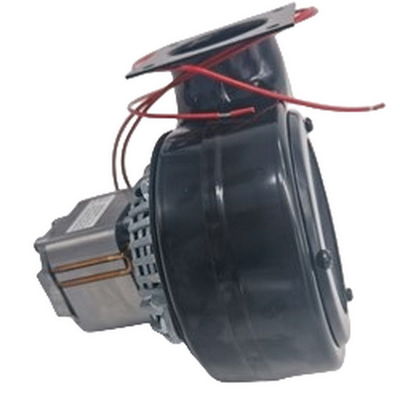

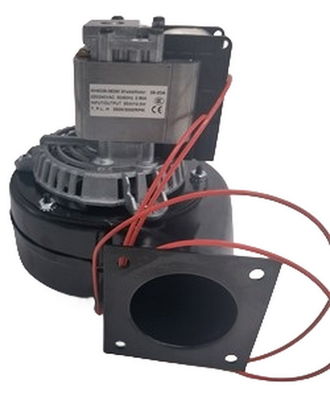

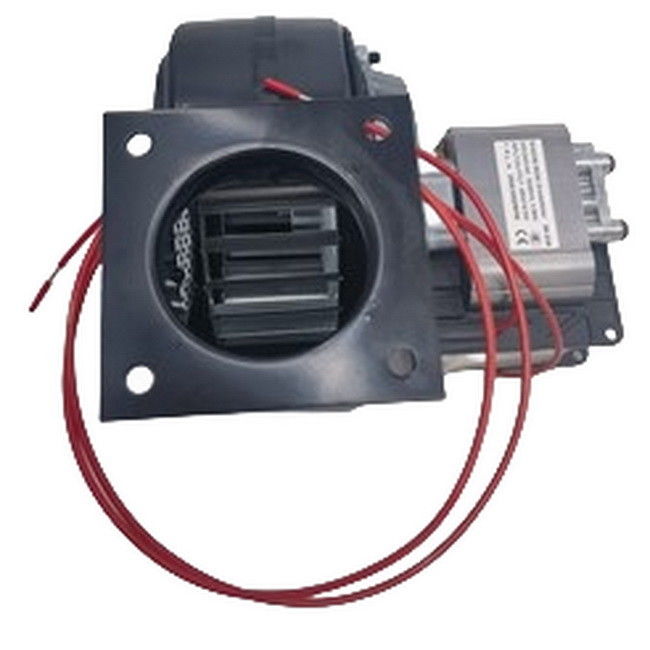

Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz

Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz
Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz

Large Image :  Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL/CE/CCC
Model Number: MH6038-38290
Payment & Shipping Terms:
Minimum Order Quantity: 420PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work day
Payment Terms: T/T
Supply Ability: 1200pcs/day

Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz

Description
Product Name: Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz Rated Voltage/Frequency: 230V50/60Hz
Current(A): 0.64/0.55A Input Power(W): 65W
Speed(RPM): 2700/3000 Hi-Pot TEST: 1800vac50Hz,3mA,1S
Bearing Type: NMB Ball Bearing Insulation Class: H
Agency: ETL/CE/CCC Thermally Protected: TP
Application: Hi-Temp. Oven/ Heat Preservation Meal Car Equipment
High Light:

Air Convection Blower Fan

,

230vac Convection Blower Fan

,

65W convection fan for fireplace

Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz



This Convection blower is also referred to as the Room Blower. It blows air through the exhaust plennum and through the openings on the front of the stove to provide the heat to your room.



Production Advantage:



Mature and reliable shaded pole motor technology


• Large air volume centrifugal impeller


• Thermal protector protection method


• High temperature resistant NMB ball bearings


• Inlet protection design with protective net


• Typically used in high temperature ovens and insulated food cars


• High temperature resistant wires with special fluorine insulation material selecte





 Specification:

Product Name: Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz Rated Voltage/Frequency: 230V50/60Hz
Current(A): 0.64/0.55A Input Power(W): 65W
Speed(RPM): 2700/3000 Hi-Pot TEST: 1800vac50Hz,3mA,1S
Bearing Type: NMB Ball Bearing Insulation Class: H
Agency: ETL/CE/CCC Thermally Protected: TP
Application: Hi-Temp. Oven/ Heat Preservation Meal Car Equipment
High Light: Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz







Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz 0



CFM Curve for refer:



Stable pressure/air flow characteristic curves, good efficiency and low noise level



Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz 1




Prodcution Package :





Air Convection Blower Fan 230vac 65W UL Agency Thermally Protected Dual Hz 2



FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
