Product Details:
|
| Product Name: | 38W 220V 60Hz Convection Blower Fan For Pellet Stove And Fireplace | Rated Voltage/Frequency: | 220Vac/60Hz |
|---|---|---|---|
| Current（A): | 0.3 | Input Power（W）: | 38W |
| Speed（RPM): | 3300 | Hi-Pot TEST: | 1500vac50hz,1Ma,1s |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Agency: | CE /ETL | Thermally Protected: | TP |
| Wind Speed(m/s): | ≥10 | Air Volume（CFM): | 70 |
| Application: | OVEN,PELLET STOVE, FIREPLACE | ||
| High Light: | 38W Convection Blower Fan,Convection Blower Fan for fireplace,220V convection fan for fireplace |
||

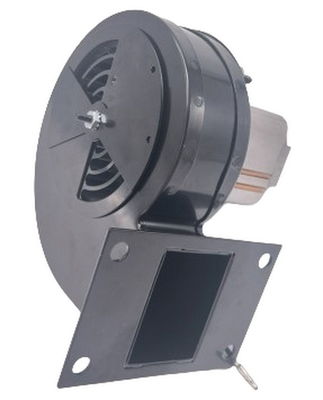

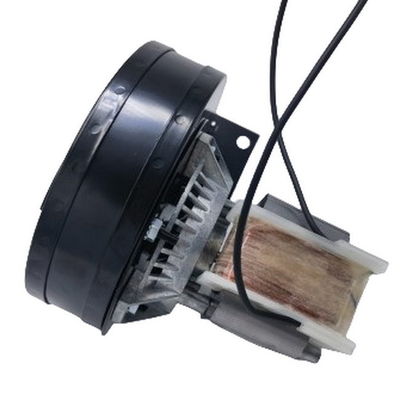

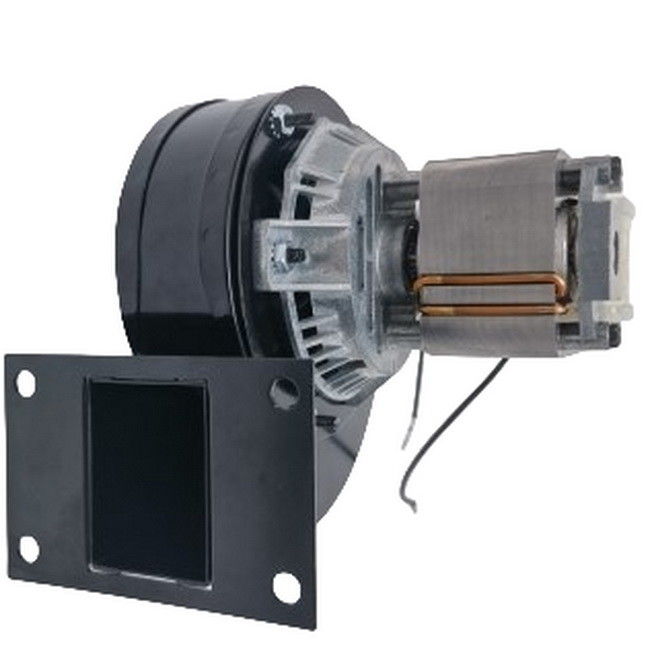

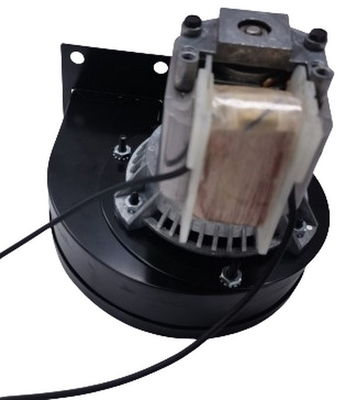

38W 220V 60Hz Convection Blower Fan for pellet stove and fireplace
This Convection blower is also referred to as the Room Blower. It blows air through the exhaust plennum and through the openings on the front of the stove to provide the heat to your room. Usually in large air volume, efficient blower, typically used in pellet fireplace, real fire fireplace.
Quick Review:
| Product Name: | 38W 220V 60Hz Convection Blower Fan For Pellet Stove And Fireplace | Rated Voltage/Frequency: | 220Vac/60Hz |
|---|---|---|---|
| Current(A): | 0.3 | Input Power(W): | 38W |
| Speed(RPM): | 3300 | Hi-Pot TEST: | 1500vac50hz,1Ma,1s |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Agency: | CCC/ETL | Thermally Protected: | TP |
| Wind Speed(m/s): | ≥10 | Air Volume(CFM): | 70 |
| Application: | OVEN,PELLET STOVE, FIREPLACE |
Production Advantage:
1. 2.38 "high efficiency electrical steel C-FRAME motor
2. Self-cooling fan design, prolong the motor service life.
3. 1.5 inch laminated silicon steel sheet design, high power
4. Volute with flange interface, to meet the different needs of customers
5. Large air volume, unique baffle design of air inlet
Performance Curve for refer:
Stable pressure/air flow characteristic curves, good efficiency and low noise level
Prodcution Package :
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
