65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application

Certification
China Shanghai MH Electric Co., Ltd. certification
China Shanghai MH Electric Co., Ltd. certification
I'm Online Chat Now

65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application

65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application
65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application 65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application 65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application 65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application

Large Image :  65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application

Product Details:
Place of Origin: China
Brand Name: MH motors
Certification: ETL/CE/CCC
Model Number: MH6038-38017
Payment & Shipping Terms:
Minimum Order Quantity: 320PCS
Price: Negotiable(EXW)
Packaging Details: Standard exporting carton package, ship by sea or airfreight
Delivery Time: 30 work day
Payment Terms: T/T
Supply Ability: 1200pcs/day

65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application

Description
Product Name: 65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application Rated Voltage/Frequency: 230V50/60Hz
Current(A): 0.45/0.35A Input Power(W): 65W
Speed(RPM): 3000 Hi-Pot TEST: 1800vac50Hz,3mA,1S
Bearing Type: NMB BALL BEARING Insulation Class: H
Agency: CCC/ETL Thermally Protected: TP
OUT PUT TORQUE: 7.8 OZ.in @2800RPM Application: MECHANICAL AND FAN DUTY APPLICATIONS
High Light:

High efficiency Convection Blower Fan

,

230V convection fan for fireplace

,

60Hz convection fan for fireplace

65W 230V Convection Blower Fan High efficiency blower for fan duty application

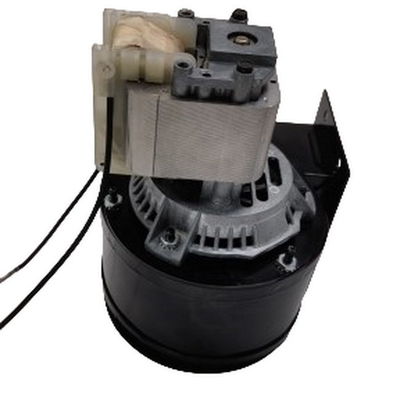

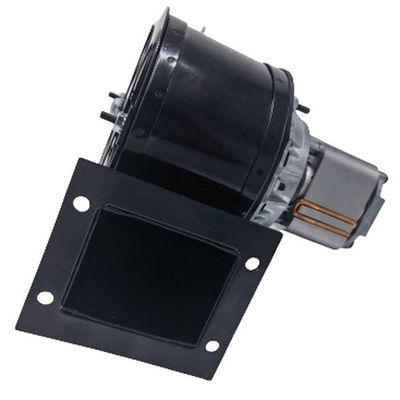

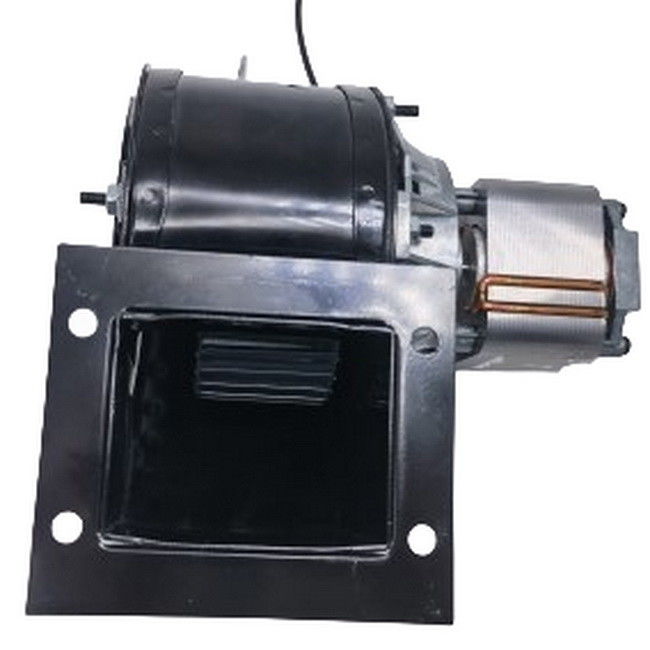

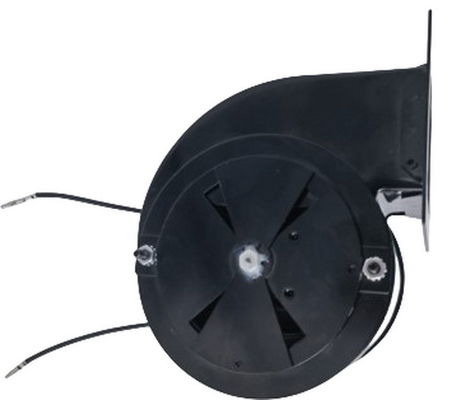

This Convection blower is also referred to as the Room Blower. It blows air through the exhaust plennum and through the openings on the front of the stove to provide the heat to your room. Usually in large air volume, efficient blower, typically used in pellet fireplace, real fire fireplace.





Quick Review:

Product Name: 65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application Rated Voltage/Frequency: 230V50/60Hz
Current(A): 0.45/0.35A Input Power(W): 65W
Speed(RPM): 3000 Hi-Pot TEST: 1800vac50Hz,3mA,1S
Bearing Type: NMB BALL BEARING Insulation Class: H
Agency: CCC/ETL Thermally Protected: TP
OUT PUT TORQUE: 7.8 OZ.in @2800RPM Application: MECHANICAL AND FAN DUTY APPLICATIONS





65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application 0







Production Advantage:



1. 2.38 "high efficiency electrical steel C-FRAME motor

2. Self-cooling fan design, prolong the motor service life.

3. 1.5 inch laminated silicon steel sheet design, high power

4. Volute with flange interface, to meet the different needs of customers

5. Large air volume, unique baffle design of air inlet





CFM Curve for refer:



Stable pressure/air flow characteristic curves, good efficiency and low noise level



65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application 1



65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application 2
Prodcution Package :





65W 230V Convection Blower Fan High Efficiency Blower For Fan Duty Application 3






FAQ



Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.



Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.



Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.



Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.



Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.



Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery



Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.



Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
