Product Details:
|
| Product Name: | 32W 220V 50Hz Convection Blower Fan Used In Heat Preservation Cabinet | Rated Voltage/Frequency: | 220Vac/50Hz |
|---|---|---|---|
| Current（A): | 0.28 | Input Power（W）: | 32W |
| Speed（RPM): | 2650 | Hi-Pot TEST: | 1500vac50hz,1Ma,1s |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Agency: | UL | Thermally Protected: | YES |
| Wind Speed(m/s): | ≥13 | Air Volume（CFM): | 70 |
| Application: | Heat Preservation Cabinet | ||
| High Light: | 50Hz Convection Blower Fan,convection fan for Heat Preservation Cabinet,32W Convection Blower Fan |
||

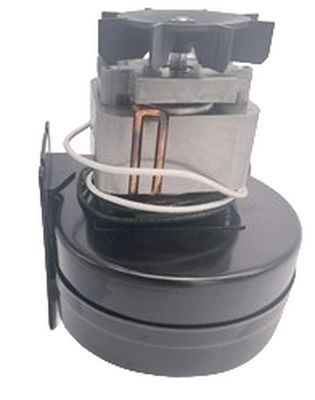

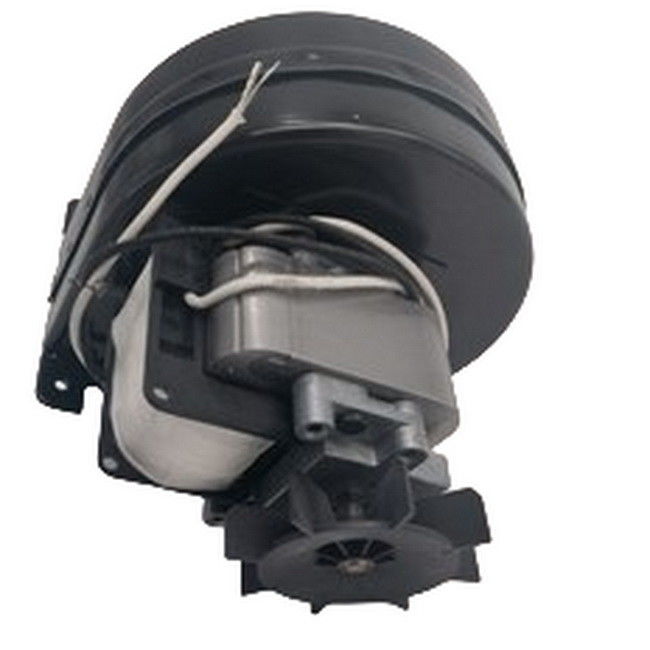

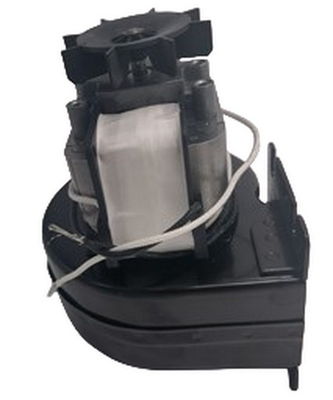

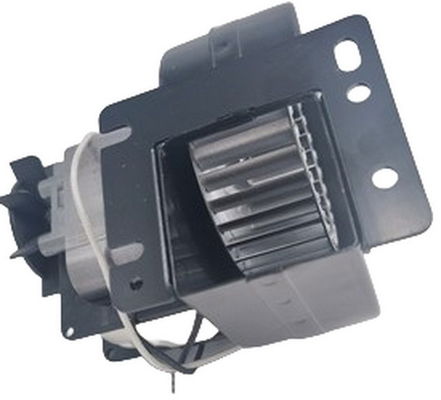

32W 220V 50Hz Convection Blower Fan Used in Heat Preservation Cabinet
This Convection blower is also referred to as the Room Blower. It blows air through the exhaust plennum and through the openings on the front of the stove to provide the heat to your room. Small volume, large air volume, efficient air blast, to ensure the internal temperature balance of the equipment.
Quick Review:
| Product Name: | 32W 220V 50Hz Convection Blower Fan Used In Heat Preservation Cabinet | Rated Voltage/Frequency: | 220Vac/50Hz |
|---|---|---|---|
| Current(A): | 0.28 | Input Power(W): | 32W |
| Speed(RPM): | 2650 | Hi-Pot TEST: | 1500vac50hz,1Ma,1s |
| Bearing Type: | NMB Ball Bearing | Insulation Class: | H |
| Agency: | UL | Thermally Protected: | YES |
| Wind Speed(m/s): | ≥13 | Air Volume(CFM): | 70 |
| Application: | Heat Preservation Cabinet | ||
| High Light: | 32W 220V 50Hz ,Convection Blower Fan ,Heat Preservation Cabinet | ||
Production Advantage:
1.C-Frame covered pole motor technology for high temperature environments.
2. Double roller bearing design, high efficiency, low noise.
3. Metal impeller, high temperature resistant.
4. Motor cooling system design, prolong the motor service life.
5. Small volume, large air volume.
6. A variety of flange mounting hole design to meet different customer installation requirements.
7. Special draft plate design, efficient operation.
Prodcution Package :
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
