Product Details:
|
| MH MODEL: | MH84-84026 | Product Name: | 36W 115V 60Hz 0.5A Convection Blower Fan In Fireplace Stove Or Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current（A): | 0.5 |
| Input Power（W）: | 36W | Speed（RPM): | 1500 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | BALL BEARING |
| Insulation Class: | B | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 7.8 |
| Air Volume（CFM): | 108 | Application: | Insulated Dining Car, Fireplace, Oven |
| High Light: | Convection Blower Fan in Fireplace Stove,Convection Blower Fan 0.5A,36 W convection fan for fireplace |
||

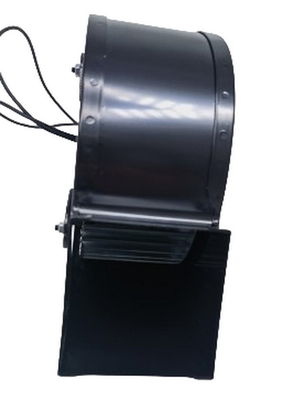

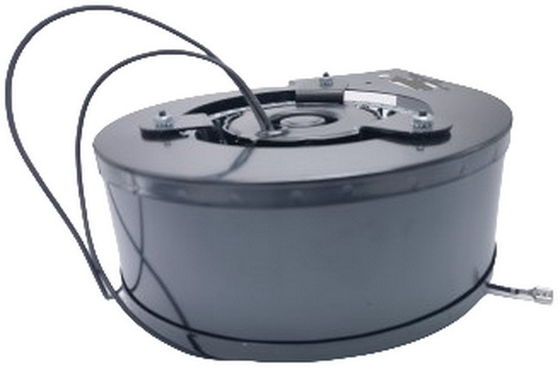

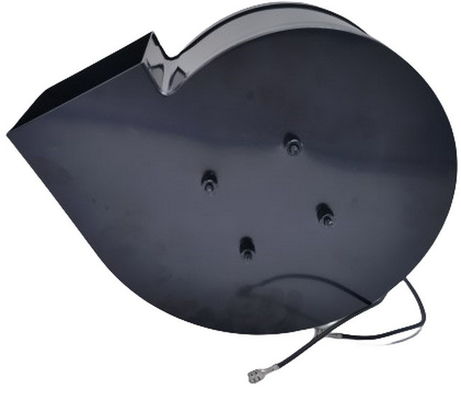

36W 115V 60Hz 0.5A Convection Blower Fan in Fireplace Stove or Oven UL Agency
The fan utilizes convection to quickly distribute the heated air generated by the pellet stove to every corner of the room, improving heating effectiveness and comfort.It features high efficiency, reliability, and durability, enhancing heating effectiveness and indoor air circulation.
Quick Detail:
| MH MODEL: | MH84-84026 | Product Name: | 36W 115V 60Hz 0.5A Convection Blower Fan In Fireplace Stove Or Oven |
|---|---|---|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 0.5 |
| Input Power(W): | 36W | Speed(RPM): | 1500 |
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | BALL BEARING |
| Insulation Class: | B | Agency: | UL |
| Thermally Protected: | TP | Wind Speed(m/s): | 7.8 |
| Air Volume(CFM): | 108 | Application: | Insulated Dining Car, Fireplace, Oven |
| High Light: | 36W 115V 60Hz 0.5A ,Convection Blower Fan, Fireplace Stove Or Oven | ||
Production Features:
• High power 2 pole 3.3 cover pole motor technology
• Large air volume centrifugal impeller
• Heat protector protection mode
• High temperature resistant NMB ball bearings
• Small volume design to meet customer assembly requirements
• Typically used in high temperature oven, insulated dining car equipment.
Air Flow Curve:
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
