Product Details:
|
MH MODEL: | MH84-84023 | Product Name: | 75W 120V 60Hz Convection Blower Fan UL Agency Applied In Insulated Cabinet |
---|---|---|---|
Rated Voltage/Frequency: | 120Vac/60Hz | Current(A): | 1.3 |
Input Power(W): | 75W | Speed(RPM): | 3050 |
Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Agency: | UL |
Thermally Protected: | TP | Wind Speed(m/s): | 16 |
Air Volume(CFM): | 115 | Application: | Insulated Dining Car, Insulated Cabinet |
High Light: | UL Agency Convection Blower Fan,Convection Blower Fan 75W,120Vac convection fan for pellet stove |

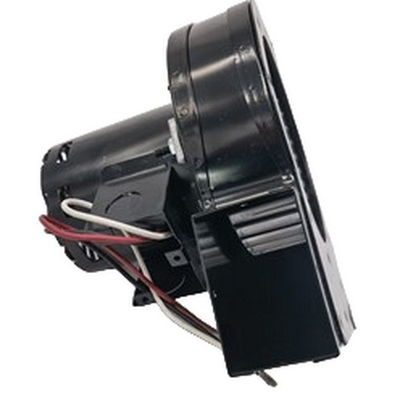

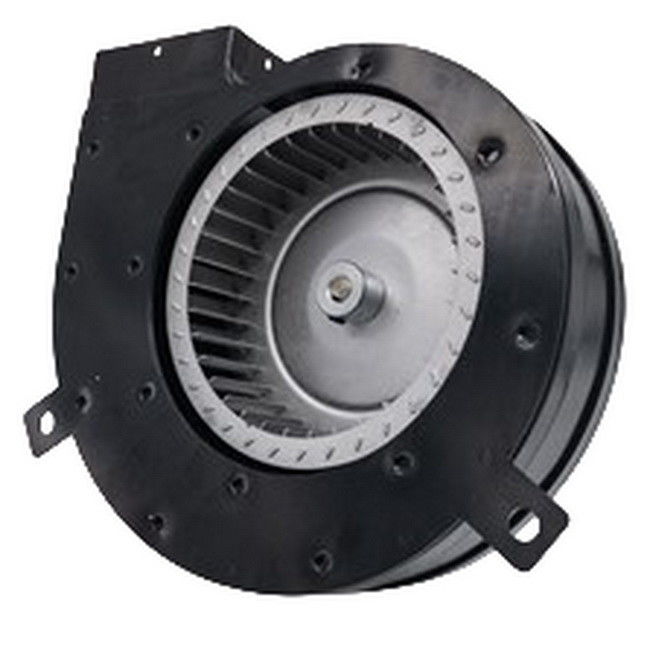

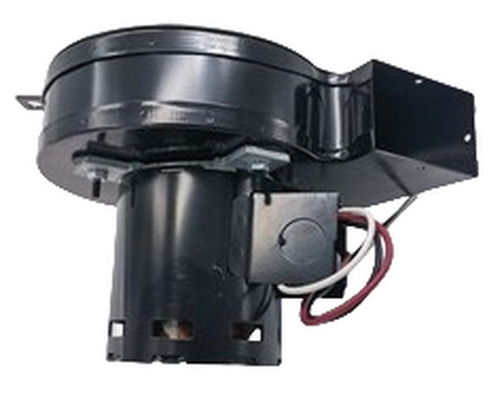

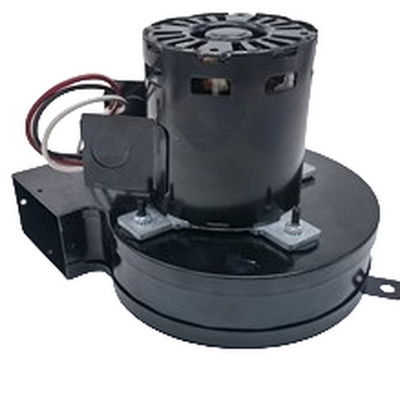

75W 120V 60Hz Convection Blower Fan UL Agency Applied in Insulated Cabinet
The motor adopts high-quality materials and design, with features such as high efficiency, reliability, and low noise, and can operate stably in high-temperature environments for long periods of time. In addition, the motor has the advantages of easy installation and maintenance, making it an ideal choice for Insulated dining car, insulated cabinet.
Quick Detail:
MH MODEL: | MH84-84023 | Product Name: | 75W 120V 60Hz Convection Blower Fan UL Agency Applied In Insulated Cabinet |
---|---|---|---|
Rated Voltage/Frequency: | 120Vac/60Hz | Current(A): | 1.3 |
Input Power(W): | 75W | Speed(RPM): | 3050 |
Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | NMB Ball Bearing |
Insulation Class: | H | Agency: | UL |
Thermally Protected: | TP | Wind Speed(m/s): | 16 |
Air Volume(CFM): | 115 | Application: | Insulated Dining Car, Insulated Cabinet |
High Light: | 75W 120V 60Hz ,Convection Blower Fan ,UL Agency, Insulated Cabinet |
Production Features:
1. Be powered by 3.3 inch frame shaded pole motor, large torque, high efficiency and large volume.
2. Quiet motor design.
3. Thermally Protected NBM Ball Bearing Design.
4. Includes extra wire leads for fast "plug and play" installation.
5. Complete assembly with gasket included.
6. Improves fireplace efficiency, Helps reduce costly energy bills, Heats large rooms effectively,
7. Can handle up to 500°F air in housing.
Air Flow Curve:
Prodcution Main Application:
High volume and efficient blower fans are typically used in real fireplaces to quickly increase the temperature of large areas in a room.
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialized in the field of exporting Convecition Blower Air Fan, cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3 inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for several years. We have our own production facility and a strong R&D team.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
